Magnetic Susceptibility/Conductivity/IP-Resistivity Meters KT-10 or KT-20 Models

NEED IT NOW? WE STOCK KT-10'S FOR IMMEDIATE DESPATCH!

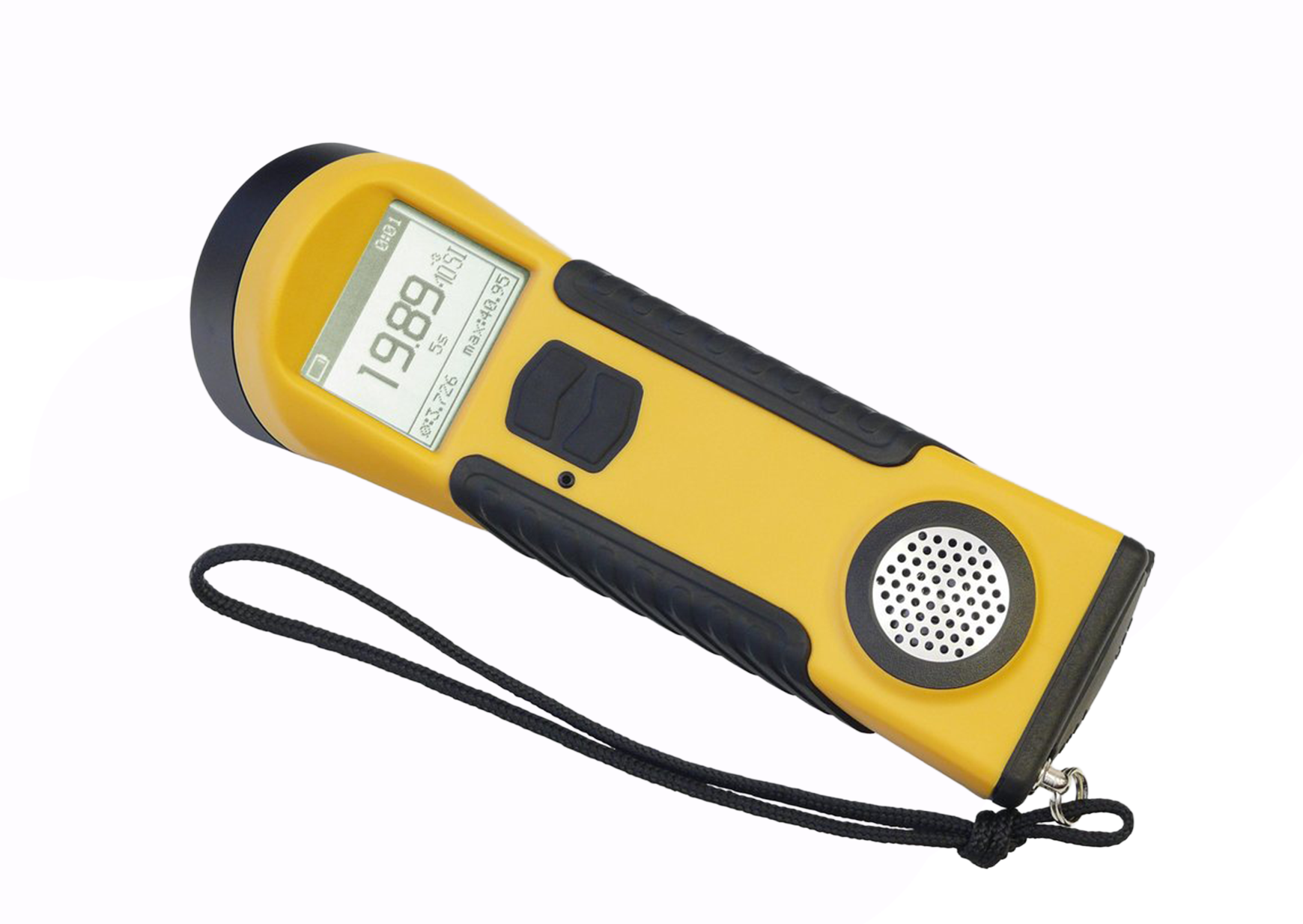

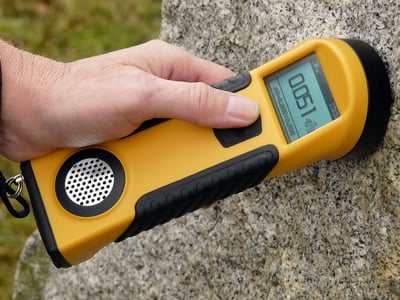

KT-10 v2 Magnetic Susceptibilty/Conductivity Meters - The Original Tool

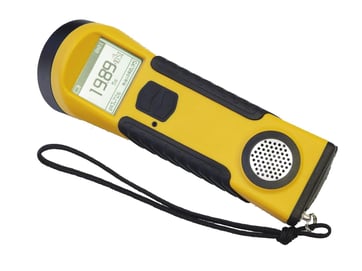

KT-10 Magnetic Susceptibility Meter (1)-1The KT-10 v2 (Click for full specs) is the most popular model of Magnetic Susceptibility meters in our range.

It incorporates a range of new technologies including Bluetooth Wireless Communication to store Magnetic Susceptibility Readings integrated with GPS coordinates, more Accurate Scanning and GeoView Visualization Software.

The units allow users to input depth correlation information, receive measurement results in either SI or CGS Units and feature large internal memories.

Additional benefits such as high sensitivity and a data management/visualization software for the PC are standard in both configurations.

The standard KT-10 v2 can also be upgraded to either a KT-10 Plus, KT-10 S/C or KT-10 Plus S/C.

In simple terms the 'S/C' means the unit is capable of Magnetic Susceptibility and Conductivity measurements.

The 'Plus' means the unit has extended Susceptibility from 0.001 x 10¯³ - 1999.99 x 10¯³ SI up to 0.001 x 10¯³ - 9999.99 x 10¯³ SI and gives the user the % Iron Ore Concentration Estimates for Magnetite.

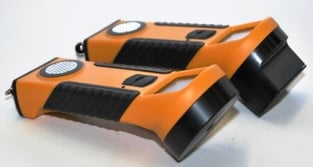

KT-10 Circular & Rectangle Coils
Note: As standard we stock the Circular Reading Face (Coil) but are able to order in the Rectangle Reading Face (Coil) if preferred. Image Left shows the Rectangle and Circular Reading Faces (coils).





KT‐20 Magnetic Susceptibility/Conductivity/IP‐Resistivity Meter - The latest Innovation.

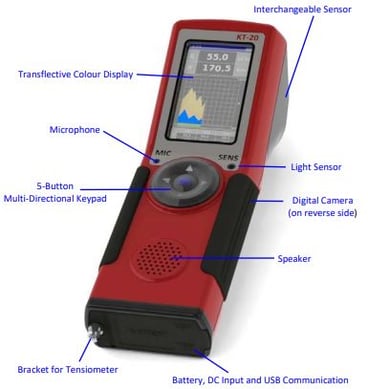

KT-20 Mag Sus MeterThe KT‐20 is a handheld instrument capable of measuring the magnetic susceptibility, conductivity, chargeability, resistivity and density of a sample.

Its modular design provides users the ability to employ different sensors of optimal frequencies for either magnetic susceptibility or conductivity measurements.

The unit can be supplied with curved sensors in addition to the standard circular and rectangular designs and can easily be interchanged allowing the KT‐20 to measure smaller or larger sized samples or cores.

The KT‐20 also has an IP/resistivity sensor to measure the chargeability and resistivity of a sample.

Additionally, density measurements are available as an option, providing more information about the sample.

A picture, audio note, text note and GPS coordinates can be added to the measurements to increase the amount of information one can attach to each record.

To see Full KT-20 Specification Click Here

Dynamics G-Ex also offer full repair and maintenance on the complete KT-10 & KT-20 range including upgrades to higher models.

Frequently Asked Questions about KT-10 & KT-20's

Q1. How often should I calibrate my Magnetic Susceptibilty/Conductivity Meter?

A2. All units are factory calibrated before shipping to you. This means that as long as the meter does not suffer from serious physical damage (i.e. the measuring coil gets broken), periodic calibration should not be required.

If you've had your unit and are in doubt about it's accuracy, you can easily calibrate the unit yourself.

Option 1 - Purchase a set of calibration pads for ultimate peace of mind.

Option 2 - Use a rock with a flat surface and which is homogeneous in its magnetic susceptibility. Draw a circle on the rock to make sure you always take the measurement at the same location, same angle and ideally same temperature (if possible).



Q2. What’s the main difference between the KT-10 and KT-20?

A2. The KT-10 is a handheld magnetic susceptibility and conductivity meter, which can be used to solely measure magnetic susceptibility or conductivity, or to measure both simultaneously. The KT-10 has a 10 kHz operating frequency and comes with a fixed sensor available in either a circular or rectangular design.

The KT-20 is a modular physical property measuring system with interchangeable sensors, which can be used to solely measure magnetic susceptibility or conductivity, to measure both simultaneously, and to measure IP/resistivity and density. A variety of interchangeable sensors are available in different shapes

For more FAQ's see here

Code Available sizes Unit Ctn Qty Stock status Choose size
MSKT100 Magnetic Susceptibility Meter KT-10 v2 EACH 1 In stock Add To Quote
MSKT10+0 Magnetic Susceptibility Meter KT-10 Plus v2 EACH 1 In stock - Subject to Availability Add To Quote
MSKT10SC0 Magnetic Susceptibility and Conductivity Dual Meter KT-10 S/C EACH 1 Special order Add To Quote
MSKT10SC+0 Magnetic Susceptibility and Conductivity Dual Meter KT-10 Plus S/C EACH 1 Special order Add To Quote
MSKT10P01 Magnetic Susceptibility Calibration Pad Low Susceptibility Values (Typically 34 x 10-3 SI Units) EACH 1 Special order Add To Quote
MSKT10P02 Magnetic Susceptibility Calibration Pad – High Susceptibility Values (Typically 2500 x 10-3 SI Units) (To be used only with Plus option) EACH 1 Special order Add To Quote
PMSKT20S KT-20 Magnetic Susceptibility Meter EACH 1 Special order Add To Quote
PMSKT20C KT-20 Magnetic Conductivity Meter EACH 1 Special order Add To Quote
PMSKT20 KT-20 Magnetic Susceptibility / Conductivity Dual Meter EACH 1 Special order Add To Quote
