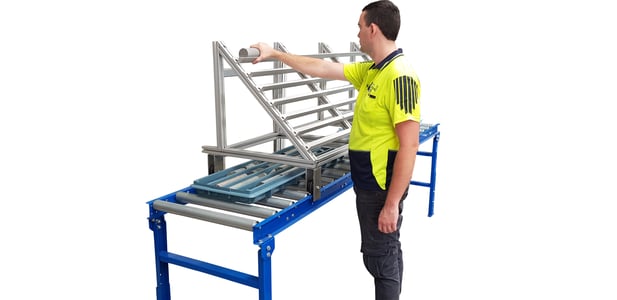

The Core Orientation Logging Trolley is built to make core orientation of up to 12m or 18m worth of diamond core quicker and more ergonomically friendly.
12m is for users that want to orientate 2 standard 6m core barrels worth of core, whereas 18m model will accommodate 3 core barrels worth of core on 1 single rack.
The unit is flat pack style, so can be assembled and disassembled whether transporting it across the world or moving it from project to project.
As it's made from an Aluminium extrusion, not only is it robust and will last the distance in the core shed, but it's also lightweight (20kg) enabling it to be easily lifted from rack to rack if necessary.
Aluminium is typically difficult to weld together, and can warp the material, whereas this 'no weld' unit ensures everything is straight and true along it's length.
The 12m core capacity model is 1.8m in length with 7 tiers. The 18m core capacity model is 3m in length with 6 tiers.
Does this Orientation Trolley suit different width of roller racking?
Yes, the unit is customised to suit any width of roller racking, this is one of the main benefits of this system.
Can the product be used on existing roller racking?
Yes, no special roller racking system is needed. All that is required is some pictures of your existing roller racking and sizes and we'll ensure it's made to suit. We can even remove the wheels and make it suit A-Frames and old drill rod set-up for the smaller explorers.
