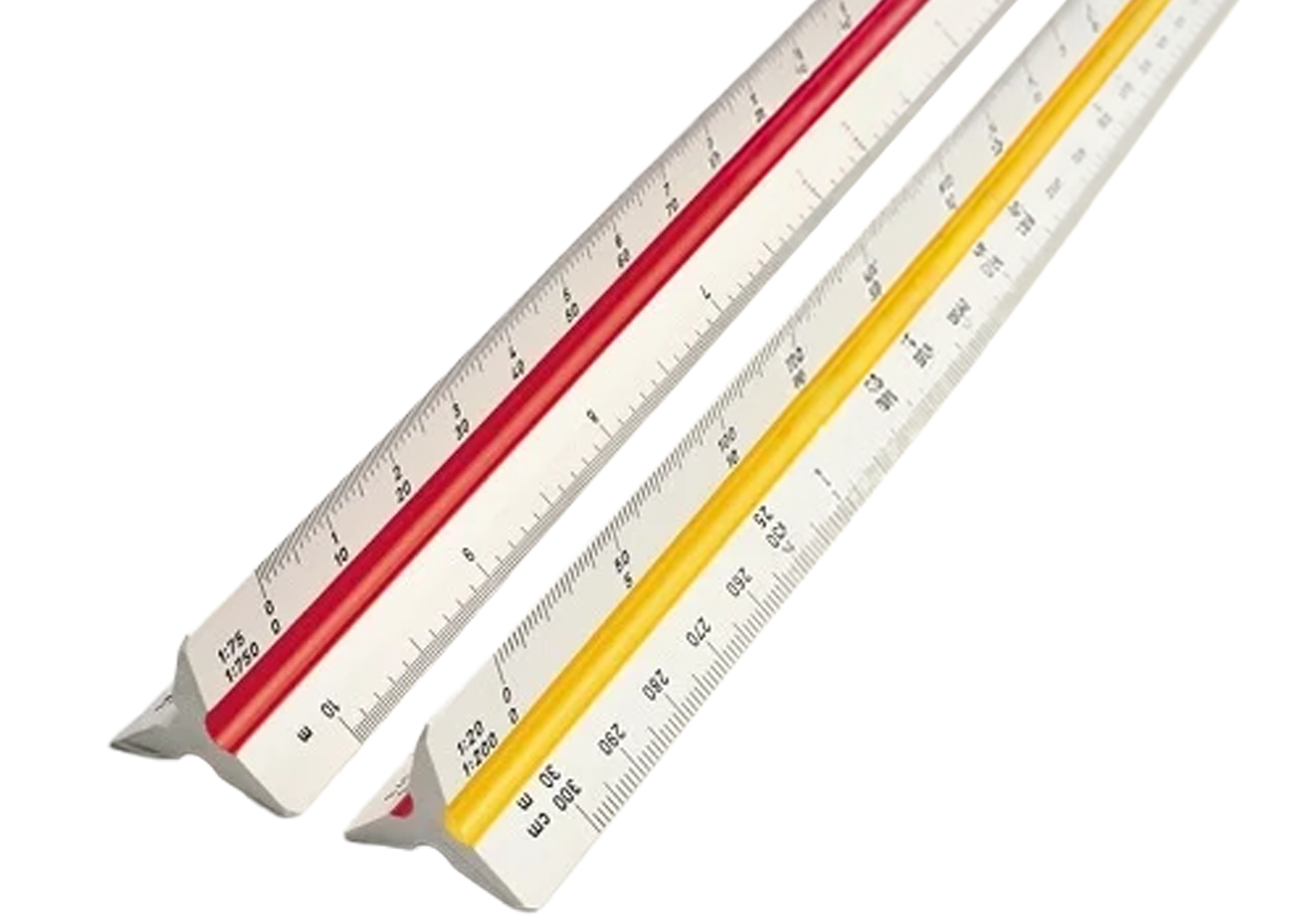

Triangle Scale Rulers 30cm

AU: 1800 105 584 | US/CA: 1 800 322 9866

Ooops! We can’t find anything related to your enquiry.
Please try again.

Discoverer® Series 5 3ft Plastic Core Box

Discoverer® Series 5 3ft Injection Molded Plastic Core Box Keep your core safe in extreme climates, including SUB ZERO and HIGH UV environments. Note: this product is available for delivery in North and South America only. Injection molded plastic, tested to last 25+ yrs in the field All plastic is not the same - our boxes are injection molded meaning they are engineered for strength and durability. The plastic we use is UV-stabilized, meaning no warping, cracking, or degradation from sun exposure. This has been independently tested by ExcelPlas to withstand 25+ years exposure to high UV, so you have peace of mind guaranteed. Ideal for cold climates, down to -50degC The Discoverer® Series 5 Plastic Core Box can withstand prolonged freezing conditions down to -50degC / -58degF making it ideal to use in colder climates. We have tested our core boxes to be able to handle freezing conditions while still protecting your valuable core. They are currently being used in some of the harshest cold climates, including Canada and Mongolia. Ergonomic grip handles and flat bottom stability When you are pulling the box along logging tables or lifting them onto vehicles, getting a decent grip on a fully loaded box is important. Then the flat bottom design ensures smooth movement on roller racking and ball transfer tables in any direction or angle, without disturbing the core samples in the box. Stronger by design, ready to use no building required! Over the years the Discoverer range of boxes has been manufactured using more plastic, which may add a few extra grams to the empty weight, but makes for a strong, rigid box when filled with core. The S5 is our strongest yet, designed to hold its shape when ratchet strapped down for transport to the core shack. And there is no assembly required like other plastic boxes - they are ready-to-use right away. Optional lids to protect your core The Discoverer S5 Core Box Lid is made from a single-piece molded plastic with integrated clips that hold it firmly on the box. The design allows every core box to be sealed with its own individual lid, and then stacked on top of each other stably. See the proof: Core Box strength challenge We put one of our S4 core boxes to the test in the video below, showcasing the incredible resilience of the product. Pallet Specification: Product Dimensions of box (LxWxH) QTY per Pallet Loaded pallet dimensions (LxWxH) Weight per item Weight per Pallet (Incl Pallet) NQ S5 39.5"x 15.3"x 2.4" 123 40"x 48"x 94.5" 4.9lb 640lb HQ S5 39.5"x 15.3"x 2.9" 102 40"x 48"x 94.5" 5.5lb 595lb PQ S5 39.5" x 15.3"x 3.7" 75 40"x 48"x 94.5" 6lb 485lb S5 lids 39.5"x 15.3"x 2.2" 150 43.5"x 48"x 69" 2.2lb 370lb Select product: Note: this product is available for delivery in North and South America only.

View
Discoverer® S6 Recycled Plastic Core Tray

Why Discoverer® S6 Plastic Core Tray? The Series 6 tray is our latest version which has been developed in partnership with industry and tested to be our best ever, with the following features: Unique Ergonomic handles New for the S6 are ergonomically designed handles which makes it the safest and most comfortable core tray in the world! They are placed in each corner and create a larger, more easy to grip lifting point that reduce the risk of injury. High strength and proven durability Made from a polymer with an ISO certified 25+ year life span. On top of this the Discoverer range of trays has been manufactured using more plastic, which may add a few extra grams to the empty weight, but makes for a strong, rigid tray when filled with core. Stable stacking Outer edges have been designed to improve nesting and stacking. The unique design means that the trays stack perfectly on top of each other without the tray above touching the core below. Secure transit and easy handling Strapping locators with reinforced fins behind the lip that ensure trays can be tied down securely for transit. And then when on the roller racking the tray has a flat bottom that ensures smooth movement across the rollers and ball transfer tables. High protection The Discoverer Core Tray Lid is made from a single-piece molded recycled plastic with integrated clips that hold it firmly on the tray. The design allows every core tray to be sealed with its own individual lid, and then stacked on top of each other stably. Core scanning and logging features The rigid rows make for a perfect platform for scanning, and the design allows the scanning head to capture an entire length of core. The bold START indicator ensures the driller starts the core run in the correct sequence. Pallet Specification: Product Pallet (W x L x H) QTY on Pallet Weight in Tray Weight per Pallet (Incl Pallet) NQ S6 1100 x 1160 x 2320mm 117 trays 2.15kg 265kg (total pallet weight HQ S6 1100 x 1160 x 2320mm 96 trays 2.2kg 225kg (total pallet weight PQ S6 1100 x 1160 x 2320mm 75 trays 2.3kg 190kg (total pallet weight Product Selection:

View
Discoverer® Series 6 2ft Plastic Core Boxes

Why Discoverer® S6 Plastic Core Box? The Series 6 Plastic Core Box is our latest version which has been developed in partnership with industry and tested to be our best ever, with the following features: High strength and proven durability Made from a polymer with an ISO certified 25+ year life span. On top of this the Discoverer range of boxes has been manufactured using more plastic, which may add a few extra grams to the empty weight, but makes for a strong, rigid box when filled with core. Stable stacking Outer edges have been designed to improve nesting and stacking. The unique design means that the boxes stack perfectly on top of each other without the tray above touching the core below. Secure transit and easy handling Strapping locators with reinforced fins behind the lip that ensure boxes can be tied down securely for transit. And then when on racking the box has a flat bottom that ensures smooth movement across rollers and ball transfer tables. High protection The Discoverer Core Box Lid is made from a single-piece molded recycled plastic with integrated clips that hold it firmly on the box. The design allows every core box to be sealed with its own individual lid, and then stacked on top of each other stably. Core scanning and logging features The rigid rows make for a perfect platform for scanning, and the design allows the scanning head to capture an entire length of core. The bold START indicator ensures the driller starts the core run in the correct sequence. Pallet Specification: Product Pallet (W x L x H) QTY on Pallet Weight in Tray Weight per Pallet (Incl Pallet) S6 NQ 2ft 1016 x 1220 x 2240mm 147 Trays 1.31kg (ea) 209kg (total pallet weight) S6 HQ 2ft 1016 x 1220 x 2240mm 126 Trays 1.35kg (ea) 187kg (total pallet weight) S6 PQ 2ft 1016 x 1220 x 2240mm 87 trays 1.47kg (ea) 145kg (total pallet weight)

View
Spring Loaded Pallet Lifter

Spring Loaded Pallet Lifter & Positioner The Spring Loaded Pallet Lifter & Positioner is engineered for the demands of mining, geology, and exploration operations. Built to make life easier on-site, this self-adjusting lifter automatically maintains a consistent working height as materials are loaded or removed — reducing strain and improving safety. Its 360° rotating turntable gives full access to palletised loads from any angle, while the fully galvanised frame ensures long-lasting performance in even the harshest conditions. Making Life Easier on Site, in the Core Shed, and at the Warehouse Product Features: ✅ Turntable platform holds up to 2,000KG. ✅ Turntable rotates 360° for nearside loading without reaching ✅ Built-in table top to avoid any pinch points when moving trays on or off turntable platform ✅ Fork pockets for easy relocation by forklift ✅ Fully galvanized frame for longevity in wet environments ✅ 27-3/4" raised height / 9-1/2" lowered height ✅ 43-5/8" outside diameter More details for the product page are in the attached doc, plus a video.

View
3 Tier Laptop Logging Trolley

The 3-Tier Aluminium Laptop Logging Trolley is a robust and versatile solution designed for geologists and field teams. Its sturdy aluminium frame and large castor wheels make it ideal for use in core sheds, warehouses, and other rugged environments. The trolley's three-tier design offers ample space for laptops, tools, and other essential equipment for logging, while the slide-out shelf provides an ergonomic workspace for keyboards or additional devices. Key Features: ✅ Durable Construction: Made from high-quality aluminium and plastic for longevity and resistance to harsh field conditions. ✅ Mobility: Equipped with 100mm swivel castors, two of which have brakes, allowing for easy movement and stability on uneven surfaces. ✅ Spacious Design: Three-tier shelving provides ample space for laptops, tools, and other essential equipment. ✅ Ergonomic: Includes a slide-out shelf beneath the top tier, ideal for keyboard placement or additional workspace. ✅ High Load Capacity: Can support up to 250kg, accommodating various equipment and samples. Specifications: Specification Details Material Aluminium frame with plastic shelves Shelf Size 620mm x 450mm Overall Dimensions 810mm (L) x 510mm (W) x 1160mm (H) Castor Size 100mm Load Capacity 250kg Unit Weight 18kg Add to Quote:

View
ErgoRacks™ Lighting & Utility Frame

The ErgoRacks™ Lighting & Utility Frame enables you to bring overhead lighting, power, water or air hoses in close proximity to your ErgoRacks™ work areas. One Lighting & Utility Frame assembly fitted with 2 x 1200mm Batten Lights is designed to fit to a 3m section of ErgoRacks™ Angled Roller Racking and is made up of the following products: 2 x Lighting & Utility Stands 1x Lighting & Utility Stand Holder 2 x Lighting Holder Stand Brackets 1x Lighting 1200mm DC Batten Light Kit Check out this video on the different add-ons available for ErgoRacks™:

View
ErgoRacks™ Ori Bar Bracket System

The ErgoRacks™ Ori Bar Bracket System is a simple but effective solution for piecing together and marking up drill core samples. Designed to attach to our ErgoRacks™ roller racking*, it provides the convenience of completing your core orientation process at the roller rack, with your core tray within easy reach. The image above shows the standard 3m ErgoRacks™ Roller Rack fitted with 5 Ori Bar Brackets on the bottom of the AR channel, supporting a length of 40 x 40mm Steel Angle. The 40 x 40 x 3m Steel Angle is recommended for use with the Ori Bar Bracket. * The Ori Bar Bracket is only compatible with the ErgoRacks™ Angle Racking Main Assembly (ARMAK). It is not compatible with the ErgoRacks™ Angled Racking Ramp Kit (ARRK-3M).

View
Plastic Sleepers for Roller Racking

Install your roller racking on these Plastic Sleepers to ensure structural stability. Aside from being strong and able to support a more significant weight, these sleepers are a sustainable innovation that outperforms traditional timber sleepers, using plastic wastes that would otherwise go to landfill. They also take less energy to produce than concrete or steel sleepers. Termite resistant Fire tolerant Rot resistant Low water absorption UV resistant Resistant to fungal decay Splinter free Maintenance reduction Easy to drill and fasten Fully recyclable after 50 years of use

View
ErgoRacks™ Angled Roller Racking

Introducing the new ErgoRacks™, angled roller racks that let you view your core at a more ergonomic angle. They are fully adjustable between a 0 and 35 degree angle, with 35° being the recommended viewing angle. Better working posture when viewing core Reduces the risk of workplace injuries, back strain, and repetitive strain injuries (RSI) Ultimately minimises sick days Other advantages: Easy to Adjust Little to no effort is required to set up the angle that your fieldie requires More Efficient Has a double viewing area that can fit 2 Discoverer® Core Trays stacked on top of each other Flat-Pack Convenient and ready to ship even to the most remote mining locations in the world Smooth Transition Can be seamlessly integrated with your existing roller racking. If you recently bought Dynamics Standard Roller Racking, tell the Team and we can retrofit it to ErgoRacks™.

View
Discoverer Collapsible Sample Transport Crates

Transport samples from the rig to the lab and back again. The crates will also help preserve your bulker bags so you can keep reusing them. These bulk containers are designed for the ultimate durability, with high-pressure injection molded plastic and an I-beam welded base. This makes them ideal for storing and transporting heavy materials like core samples, and helping preserve your bulker bags so you can keep reusing them. They collapse for easy transportation. Features: Collapsible crate with 4 way forklift and pallet jack access for efficient handling even in limited spaces Versatility - Ideal for mining and exploration, especially secure storage and transport. Interlocking feet for durability and easy stacking 3:1 folding ratio minimizes transport and static storage Dimensions: AU/Global excl. North and South America: 1162x1162x785mm (LxWxH) - capacity 3000kg (static) North/South America: 48x44.5x33.8in (LxWxH) - capacity 1800lbs Optional: Lids with interlocking features can be used to make the crates stackable. Fit a stack of 8 crates into 1 pallet.

View
Brunton Baseplate & Orienteering Compass Range

Brunton compasses have been in the market since 1894 and are made in the USA. Let's start with the simplest model. Brunton TruArc 10 Compass Explorers can depend on this high precision, mirrorless baseplate compass. A full set of navigation features and romer scales offer seamless GPS integration. In case you are more familiar with the Suunto range of compasses, the closest equivalent would be the Suunto M3. Specifications: Dimensions: 5.2” x 2.8” x 0.5” | 13.2 x 7.1 x 1.2cm Weight: 1.7 oz | 48 g Resolution: 1˚ Features: TruArc™ Global Needle tilts up to 20˚ for balanced use world wide Tool-free declination adjustment is simple and fast to orient magnetic north to true north Meridian lines on vial assist during pre-trip planning when aligning with map grid lines Reversible inch/millimeter scale for accurate and effective map work Romer scales provide maximum accuracy of latitude and longitude for easy integration with handheld GPS unit Brunton EverNorth Magnet resists demagnetization over time Magnified readout provides highest degree of accuracy without compromising readability Double-gauge, ergonomic baseplate is durable and comfortable in hand High visibility cling for enhanced performance in low light; can be removed to facilitate map use 1˚ resolution azimuth ring provides precise readings Now moving on to the Mirror Compass options and comparing the Brunton range to the familiar Suunto range: The Brunton Geo Lite is meant to be an affordable geologic transit. It's essentially a combination of the Brunton Compro Transit and Brunton TruArc 15 Compass, but a lighter version. With the leveling bubble and hinge clinometer on the Geo Lite, it can take measurements such as strike and dip, dip and dip direction, and trend and plunge, which the more expensive Brunton transits can do. Whereas the Suunto MC-2 is a navigational compass, similar to Brunton TruArc 15, the Geo Lite also has a protractor printed onto the baseplate which is specifically used for mapping geologic data onto topo maps. Finally, the Suunto MC-2 lacks a bubble level, which both Brunton models come with as standard, meaning no geologic measurements can be taken with the Suunto model. Brunton TruArc 15 Compass This mirrored baseplate compass offers professional features like an internal vial inclinometer and lid inclinometer that is ideal for advanced navigation, search & rescue, or scientific field work. It's a navigational compass, pretty much like the Suunto MC-2. Specifications: Dimensions: 4” x 2.5” x 0.6” | 10.16 x 6.3 x 1.5cm Weight: 3.2 oz | 91 g Resolution: 1˚ Resolution Features: TruArc™ Global Needle tilts up to 20˚ for balanced use world wide Tool-free declination adjustment is simple and fast to orient magnetic north to true north Meridian lines on vial assist during pre-trip planning when aligning with map grid lines Inch/millimeter scales for accurate and effective map work Brunton EverNorth Magnet resists demagnetization over time Magnified readout provides highest degree of accuracy without compromising readability Dual azimuth ring includes reverse azimuth Sighting mirror and sighting line integrated into the cover. Align for the most accurate bearings, whether taking or following a bearing Clinometer with 2˚ resolution for measuring slope angle or gauging heights of passes, peaks or trees Engineer’s ruler Bubble level for absolute precision readings; keeping the compass level (not the needle level) is a critical aspect for taking an accurate bearings Map magnifier helps with the smaller details on any map High visibility cling for enhanced performance in low light; can be removed to facilitate map use 1˚ resolution azimuth ring provides precise readings Brunton Geo Lite Transit This geology-specific mirrored baseplate compass is ideal for students and field geologists in need of a lightweight compass with transit features and functionality. Specifications: Dimensions: 4” x 2.5” x 0.6” | 10.16 x 6.3 x 1.5cm Weight: 3.2oz | 68g Azimuth: +/- 1˚ w/ 2˚ graduations Hinge clinometer: +/-2.5˚ w/ 5˚ graduations Internal clinometer: +/-2.5˚ w/ 5˚ graduations Declination adjustment: +/-180˚ Features: Transit-style direct read azimuth system Slender needle for a more accurate read Fixed plumb-style clinometer–unaffected by declination adjustment Hinge clinometer enables dip/dip azimuth measurements Integrated protractor for plotting data on a field map Bubble level for accurate strike measurement 2˚ Resolution for azimuthal readings (strike, dip azimuth, directional bearings) 5˚ resolution for clinometer readings Brunton EverNorth Magnet resists demagnetization over time Map Magnifier Sighting Mirror for accurate bearings Tool-free declination adjustment Romer scales included for easy integration with handheld GPS unit Flat bottom for accurate strike and dip measurements at low angles Hot stamped base plate for improved durability Recycled glass-filled PA lid for increased durability

View
Brunton Optical Sighting Compass & Clinometer Range

Brunton compasses have been in the market since 1894 and are made in the USA. Optical Sighting Compass Brunton Omnisight A compact and sturdy sighting compass that allows accurate simultaneous forward and reciprocal bearings even in low light conditions. For context, this is the Brunton equivalent of the Suunto KB-14. The Omnisight spot-through compass offers the convenience of multiple precision instruments in one hand-held unit thanks to both forward and reciprocal bearings, 360° azimuth, plus 90° quadrants and 6400 point MILS. SPECIFICATIONS dimensions: 2.5 x 3.5 x 0.5" | 76.3 x 8.8 x 1.3cm weight: 11.8oz | 335.6g resolution: 1˚ range: 180˚ FEATURES Offers precision measurements of horizontal bearings through direct sighting. Allows for 4 different scales of bearing measurements: Scale 1: MILS (0-6400) Scale 2: Quadrant 0-90° Scale 3: Reciprocal Azimuth 0-360° Scale 4: Azimuth 0-360° Dual readings on the top dial face in Azimuth or Quadrant with 5° graduations. Sapphire jewel bearing with anti-static dampening fluid. Available in Northern Hemisphere, Equatorial, and Southern Hemisphere models. Offers up to 10x magnification with an adjustable lens. Designed with durability in mind, with an CNC machined anodized aluminum housing and shock absorbing silicone cover. Use as a stand-alone unit or thread onto a Jacob’s Staff or non-magnetic tripod, with built-in threads. Comes with a protective leather case, perfect for carrying in the field. Clinometer Brunton Omnislope Sighting Inclinometer The Omnislope sighting inclinometer allows the simultaneous measurement of vertical angles and percent grade and features a plumb-bob style clinometer mounted on high-precision bearings. If you're more familiar with Suunto compasses, this would be comparable to the Suunto PM5/360 PC Hand-Held Clinometer. A durable and steadfast CNC machined aluminum housing ensures ruggedness and reliability, while a silicon cover makes it comfortable to hold and carry. SPECIFICATIONS dimensions: 2.5 x 3.5 x 0.5" | 76.3 x 8.8 x 1.3cm weight: 11.8oz | 335.6g graduations: 1˚ for 3 scales FEATURES Offers precision measurements of vertical angles through direct sighting. Allows for 3 different scales of angular measurement above and below horizontal: Left: Slope in Degrees, 0-90° Middle: 66' Forestry Chain, 0-200' Right: Slope Percent Grade, 0-150% Side view of slope degree and percent grade also. Offers up to 10x magnification with an adjustable lens. Designed with durability in mind, with an CNC machined anodized aluminum housing and shock absorbing silicone cover. Use as a standalone unit or thread onto a Jacob’s Staff; built in thread fits Brunton monopod. Comes with a protective leather case, perfect for carrying in the field.

View

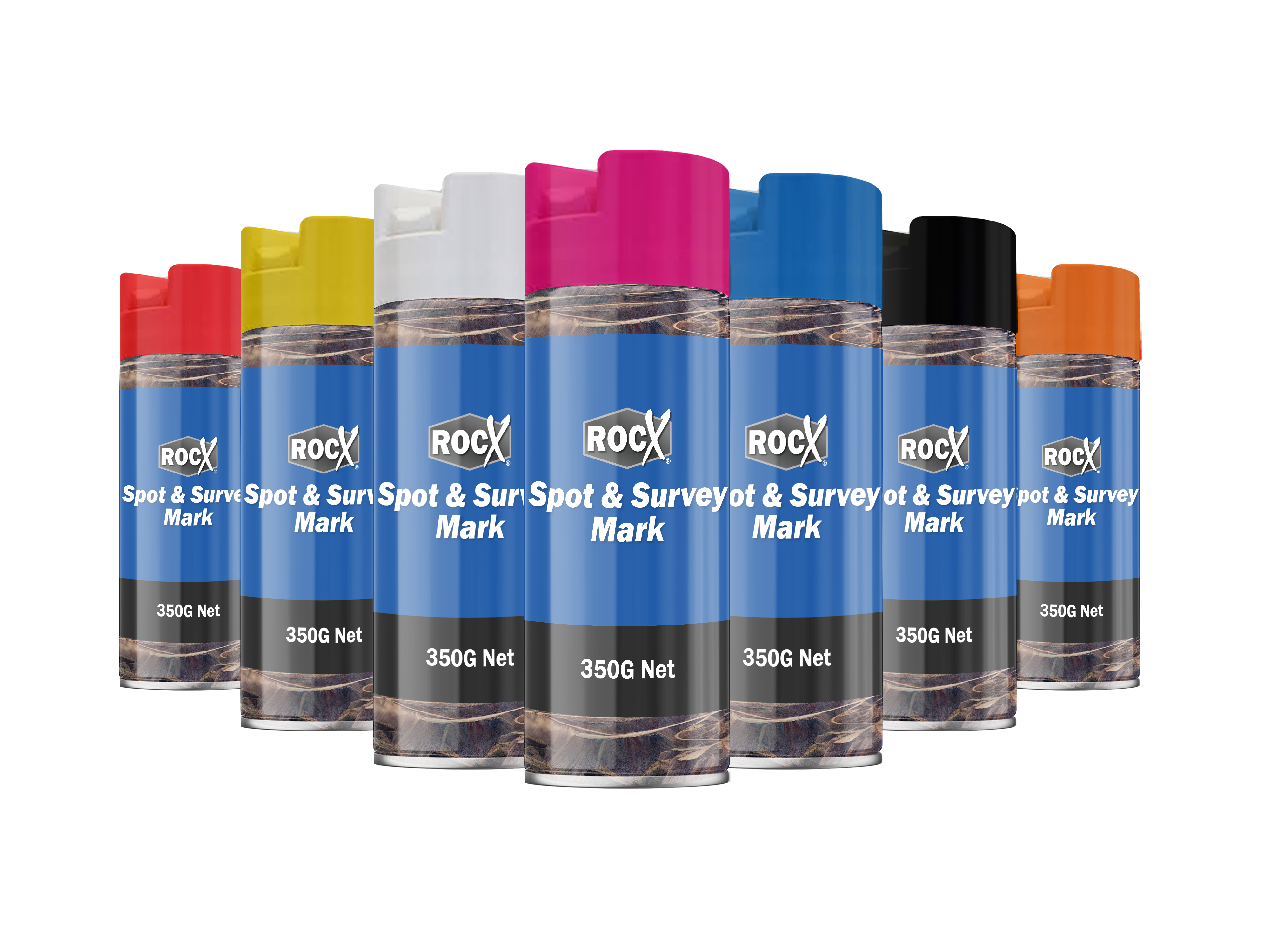

RocX Spot & Survey Marking Paint

The RocX brand is essentially a general purpose spray paint that has rapidly increased in popularity over the last few years, becoming one of the market leading brands. Traditionally, this paint may be referred to as Spot Marking Paint. It's used for many general spray marking applications on the ground, as it's solely an 'upside down' spraying aerosol paint. For mine site layout, marking trenches, 'dig-blocks', perimeters and even general surveying of drill patterns or areas. It comes in 350g cans supplied in boxes of 12, in solid and fluoro colours.

View
Discoverer Auto RC Chip Photography Station

The trend towards Machine Learning is gaining momentum. Without a consistent, high quality image library being built up now, you could be behind the 8 ball when your project adopts it! In a connected world, digitizing your imagery and making it accessible anywhere in the world is becoming the norm. If you've got light duty workers that you are wondering how to gainfully employ, the Discoverer Automatic RC Chip Photography Station is perfect! It takes 1min & 10sec to capture an entire 20-compartment chip tray and an operator can easily complete 50 trays per hour. How much value could this offer to your project? Included in Package Mains Powered LED Light Ring Adapter Ring to suit EOS Canon Camera Remote Trigger Cable to suit EOS Canon Camera Geobank Mobile Profile (Only relevant if you have an Geobank Mobile/Micromine data collection subscription) Camera is Not Included as standard. Can be supplied separately if required. FAQs What camera can I use? Personally we found Canon 90D with a 100mm macro lens is optimal and best bang for $$$, however pretty much any camera can be used providing it has a remote trigger function and use connectivity. The frame is adjustable to allow for different camera and lens combinations. The current camera mount suits the typical Canon DLSR cameras... but if you have something significantly different we can supply a different camera mount to suit. (Specify upon order) What other software can I use for the data collection? Imago or GeoBank Mobile are generally used, but happy to help research other software to ensure compatibility, just ask the team.

View

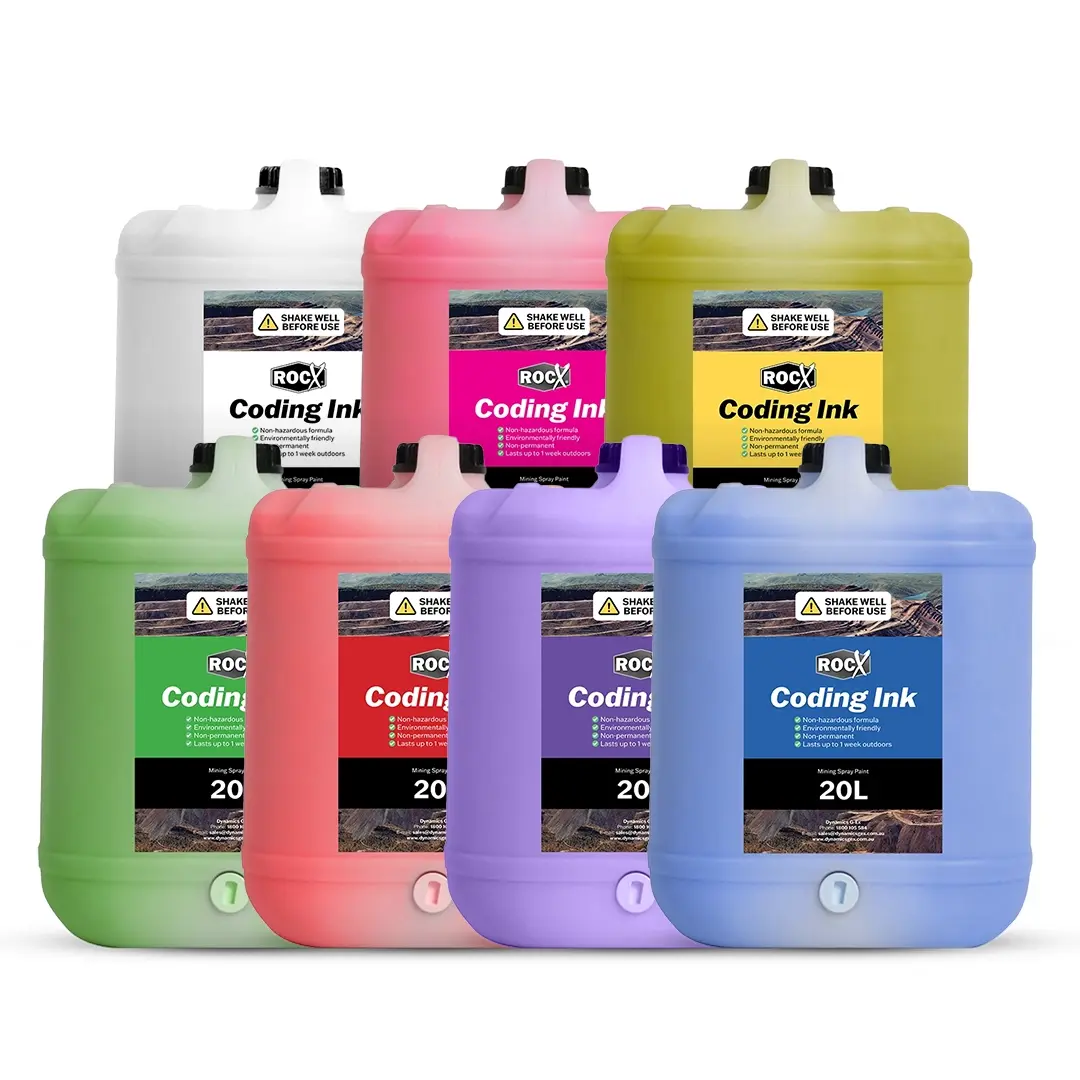

RocX Rock Coding Ink

RocX was developed by mining companies for mining companies. This is a premium brand of mining spray paint for marking out areas and information in both underground and open pit mining operations. Made and developed in Australia, the brand is stocked throughout every major mining area in the country. Bright and highly visible mark in a non-permanent, water-based formula that will last up to one week outdoors. It is a non-hazardous material, protecting your employees and the environment whilst keeping your shipping costs to a minimum. Made for underground and open-pit applications to highlight areas of interest, in 20L drums so you don't need to use up multiple small aerosol cans. Use in backpack sprayers or through the airless spray method and cover big areas of ground in an instant. We don't sell backpack sprayers, but from our customers' feedback, these are the ones that seem to work best with this product. *Other Colours may be available upon request.

View

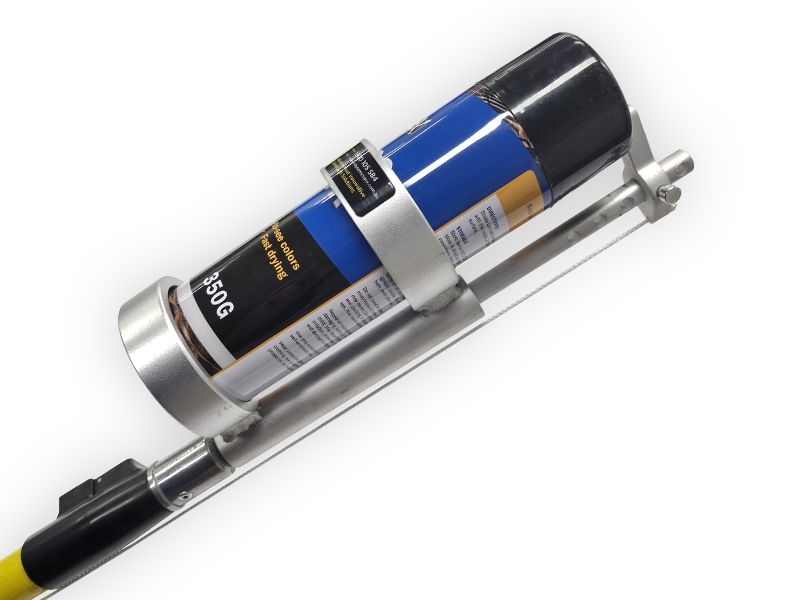

RocX Mine Mark 5m Paint Pole

A paint pole that extends up to 5 metres at the push of a button. Ergonomically designed and built for use with mine mark paints. Use in underground mines where surfaces that need to be marked tend to be out of arms' reach, and where using ladders is unsafe or out of the question. Ideal for marking mine ceilings and top of mine face, drill holes and survey points Made of anodised aluminium to reduce static build-up (safe for underground use) Features a front extension for better balance and handling Reduces repetitive back strain

View
Rainbow Quartz (Blank) Reference Material

Rainbow Quartz is recognized in the Mineral Exploration Industry as a reference material. It is also known as Blank Material and is used for a QAQC check with lab results from your sample submissions. It is available in 25kg Bags, 250kg Drums and 1 Tonne Bulker Bags from our Dynamics G-Ex Perth warehouse.

View
Ox Rock Pick

Ox rock pick is the perfect tool for chipping away at any hard surface. This rock pick is perfect for geologists and other professionals who work with rocks and other hard surfaces. Precision balanced rock pick Ground point end for accurate picking Non-slip grip handle with shock reduction Forged, one piece steel construction Lifetime guarantee 22oz

View
Hi-Vis Safety Vest

Comfortable and convenient, these high-vis vests are made of lightweight fabric that makes them cool and breathable. Velcro closure Available from size S to 5XL AS/NZS 4602 compliant

View

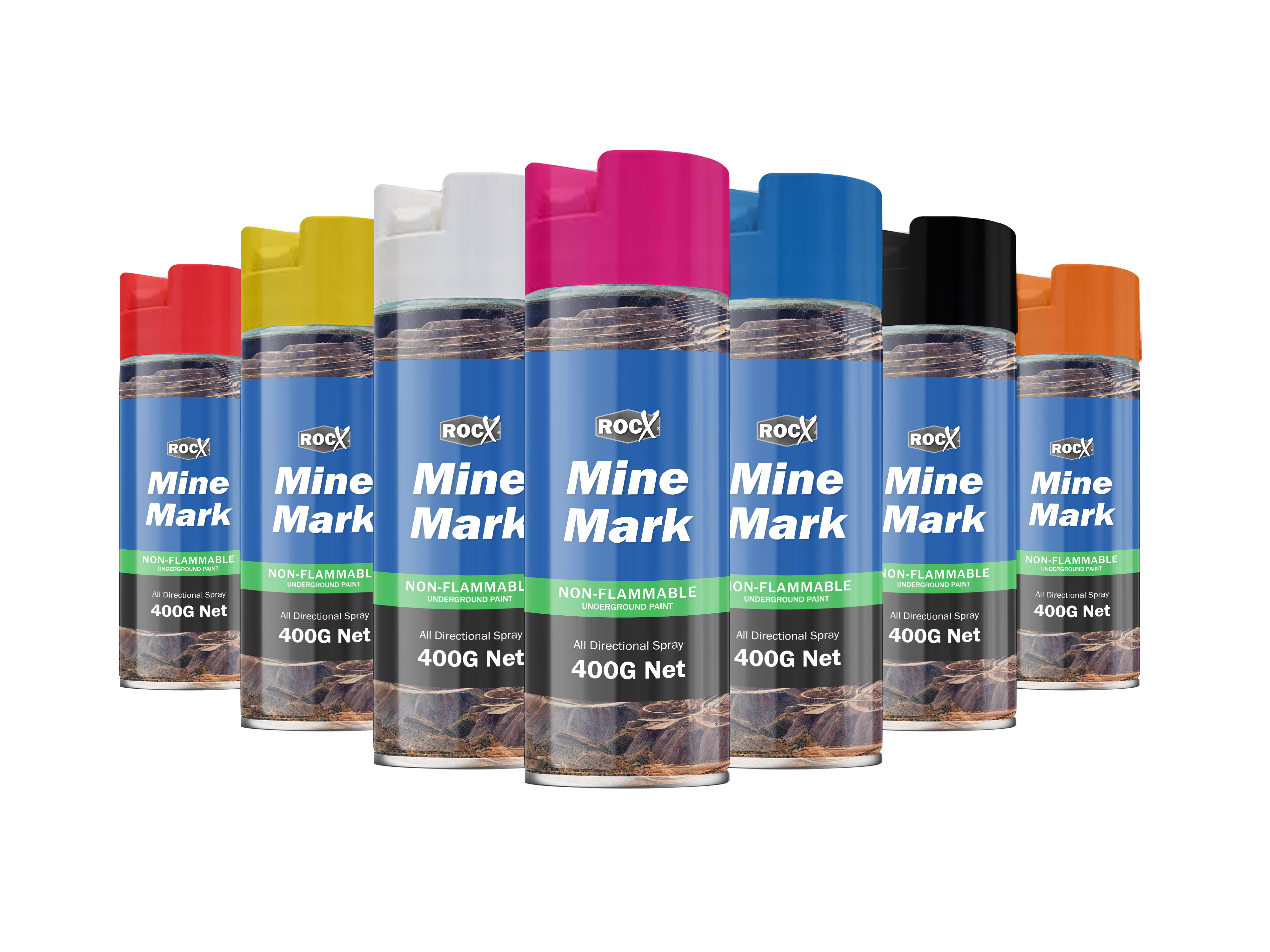

RocX® Mine Mark Non-Flammable Spray Paint

RocX® Mine Mark was developed by mining companies for harsh mining conditions. This is a premium brand of mining spray paint for marking out ore zones, hazards, pit walls and survey grid layouts in underground mining operations. Each box comes with an innovative package deal which contains the 360-degree spray cap fitted to the can & 12 horizontal (fly-spray) caps in the box. Your mine store now only has to order & hold 1 stock line, instead of a SKU line for 360 cans and a SKU line for horizontal (fly-spray) cans. If you are looking for a more cost effective option, due to Non-Flammable properties in the aerosol not being required, then check out the standard RocX Mine Marking Paint. This Paint is developed in Australia, the brand is stocked throughout every major mining area in the country. RocX recognised the monopoly in the Australian market for mine marking spray paint, causing users to pay a premium for far too long. Now you have an alternative that promises quality and value-for-money. *The range will be expanded over time, so if you don’t see it around, please ask us!

View

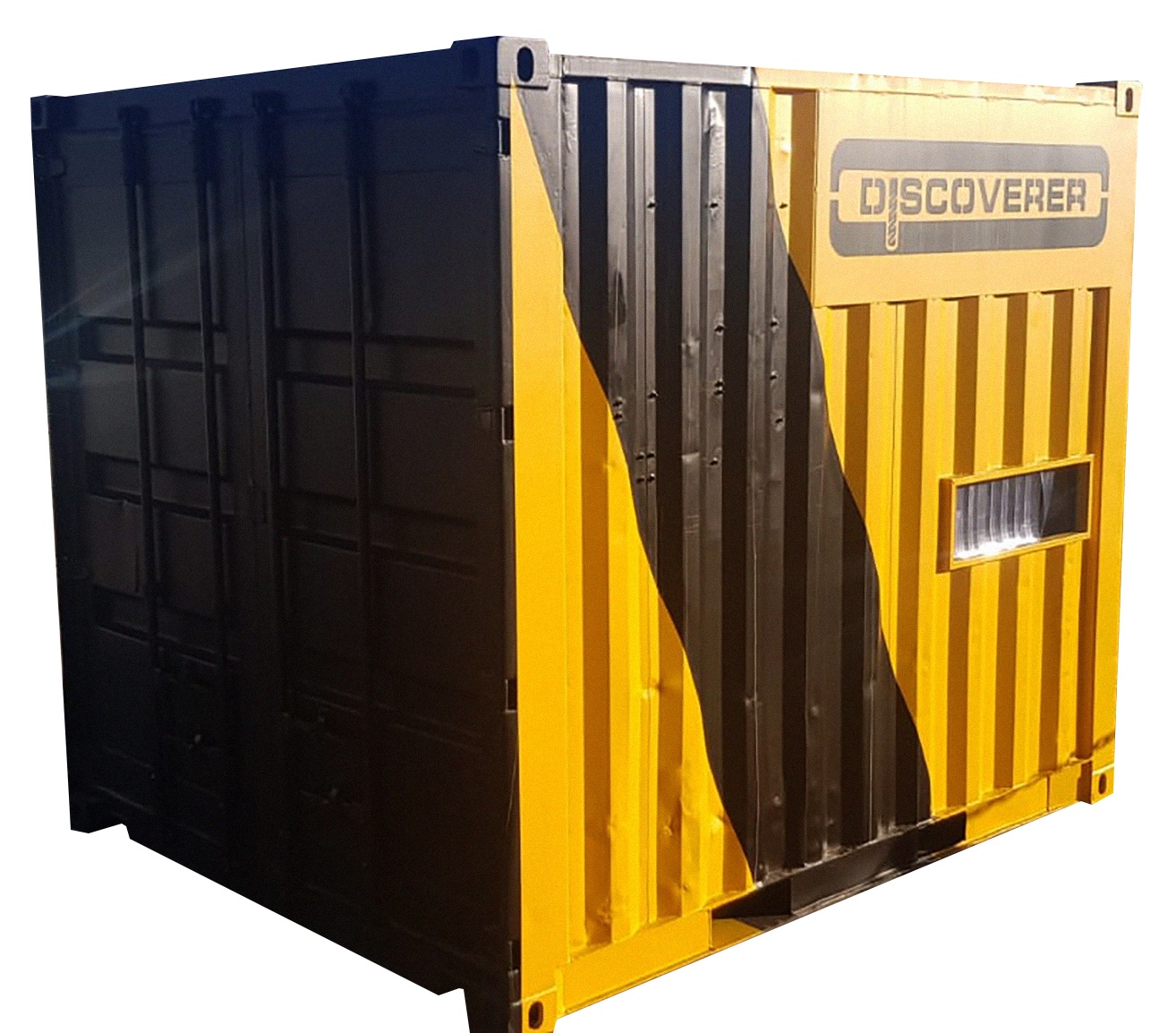

Discoverer®️ 10ft SG Container

Keeping your Specific Gravity (SG) Weighing Station clean is key to its accuracy. Allot a dedicated space for it outside of your dusty and noisy core shed with this 10ft SG Container. The SG Weighing Station is inside a shipping container that is air-conditioned, and the 10ft space is comfortable for a Geo or Fieldie taking SG measurements. They come with roller racking to connect seamlessly to your core logging flow. Simply find a space for the container right beside your core shed, feed core trays straight through one end of the container, take the SG measurements, and get them back out the other end. What’s Included: Automatic SG Weighing Station

View
Dynamics Mobile Capture Device

Catalog images with or without an internet connection. Images synchronize automatically to connect the field to the office. Take photographs of drill core sections of interest and immediately share them with your team across the globe. It's designed to hold any mobile phone model and create a controlled environment with its own internal light source in which to capture high-resolution images of chip piles or sections of core of particular interest. Dimensions Height: 130mm Cylinder diameter: 115mm Max. width: 150mm Capture chip pile images. Capture drill core sections of particular interest. Share and see more in your images from your PC or mobile. Learn more about Imago Software here.

View
Discoverer® Ori Angle Bracket

The Discoverer® Ori Angle Bracket System is a simple but effective solution for piecing together and marking up drill core samples. Both low mount and high mount versions are compatible with our wide range of roller racking, so there's the added convenience of your core tray staying within reach for easy access. We recommend the 40x40x3mm Steel Angle for use with the Angle Bracket System. Core Orientation Angle Bracket Video

View
RocX® Mine Mark Spray Paint – Underground Grade

RocX® Mine Mark was developed by mining companies for harsh mining conditions. This is a premium brand of mining spray paint for marking out ore zones, hazards, pit walls and survey grid layouts in both underground and open pit mining operations. Each box comes with an innovative package deal which contains the 360-degree spray cap fitted to the can & 12 horizontal (fly-spray) caps in the box. Your mine store now only has to order & hold 1 stock line, instead of a SKU line for 360 cans and a SKU line for horizontal (fly-spray) cans. The data shows that this standard Mine Marking Paint is used commonly underground in WA, but the more common product used underground on the East Coast is RocX Mine Mark Non-Flammable So check your Mine Safety regulations as some Mine Sites stipulate that only RocX Mine Mark Non-Flammable is to be used in underground operations. Especially Coal Mines, the non-flammable product is a requirement. Manufactured and developed in Australia, the brand is stocked throughout every major mining area in the country. RocX recognised the monopoly in the Australian market for mine marking spray paint, causing users to pay a premium for far too long. Now you have an alternative that promises quality and value-for-money. *The range will be expanded over time, so if you don’t see it around, please ask us!

View
Milwaukee 18V Battery Collar Cutter

Gone are the days of having to store highly flammable petrol on-site with this battery-operated Collar Cutter! For many sites it may be required here and there, but undoubtedly something that is better avoided whenever possible. This is something the Dynamics R&D team has custom-built for the industry, and we decided to start with the Milwaukee because it's arguably the best power tool on the market. KCGM Testimonial "Light weight construction, shaft can be separated into two halves for easy storage and transport, considerably quieter, simple to use, less vibration, safer as no more trigger locking on (chainsaw massacre style), no heat or fumes from the exhaust, no more storage of flammable material at site or on the back of the work vehicle, minimal servicing required. I had one technician use the collar cutter for the first time in her career, and notably the cut was perfect once finished (how many attempts does it usually take before you master a perfect cut?). As long as the operator lets the blade do the work, is more patient and doesn't completely send the blade all the way through the PVC into the soil/overburden, it does perform very well. I personally cut 3 of the 6 and had a nice controlled perfect cut each time. Battery life doesn't concern me." Jamie McPolin, Field Coordinator, KCGM Note: Since Jamie trialed the market very first prototype unit in July 2020, the shaft has been substantially upgraded. Using the 18V/12Ah, clients are achieving 15-20 collars on a fully charged battery. Roy Hill Testimonial "I am pleased to let you know we are happy with the performance of the Milwaukee collar cutter, it seems to be a good alternative to the petrol-powered tool." James Douglas Coordinator Technician Ore Definition |Roy Hill Milwaukee 18V Battery Collar Cutter Kit Contains: 1 x Milwaukee 18V/6Ah Battery 1 x Milwaukee18V/12Ah Battery & 18V Charger Starter Kit 1 x 100mm Discoverer Diamond Cutting Blade 1 x Milwaukee 18v Collar Cutter Skin Features: Variable Speed Trigger - Instantaneous throttle response 2-Speed Control: Low extends run-time when full power is not needed; High maximises power for demanding cutting. Brushless Motor sustains power under load without bogging down. Specifications: Voltage: 18V No load speed: Speed 1: 0 - 6860rpm Speed 2: 0 - 8680rpm Dimensions (L x W x H): 1800mm x 166mm x 118mm Weight: 3.5kg Milwaukee 18V Li-ion Cordless RED LITHIUM High Output Battery Features: REDLINK Intelligence provides optimised performance and overload protection using total system communication between tool, battery, and charger. Fuel gauge onboard displays remaining run-time. Best-in-class construction offers long-lasting performance and the best protection against site conditions. 6.0Ah specifications: Voltage: 18V Amp hour: 6.0Ah Charge time: 75mins Dimensions (L x W x H): 105mm x 95mm x 154mm Weight: 1.28kg 12.0Ah specifications: Voltage: 18V Amp hour: 12.0Ah Charge time: 130 mins Dimensions (L x W x H): 170mm x 110mm x 105mm Weight: 1.6kg Milwaukee 18V Multi Voltage Rapid Battery Charger Featues: Charges all Milwaukee batteries up to 40% faster Sequential charging REDLINK intelligence communicates directly with the battery. REDLINK monitors cell voltage and temperature. REDLINK charges to optimise the performance, protect and extend the life of the battery. Specifications: Voltage: 18V Battery type: Li-ion Charge Time: 6Ah: 75 minutes 12Ah: 130 minutes Weight: 0.77kg Milwaukee M12-18AC 12V - 18V Li-ion Automotive Car Battery Charger (optional) (Rapid Charge Station M12-18FC) Features: Charges Milwaukee® batteries on the go using conventional 12V sockets Recharges all M18™ and M12™ REDLITHIUM-ION™ battery packs Specifications: Voltage: 12V, 18V Battery type: Li-ion Charge Time: 6.0Ah: 120 minutes 12Ah: 240 minutes Weight: 0.83kg Milwaukee 18v Collar Cutter Skin Product Code: BOCCSKIN Milwaukee18V Battery Collar Cutter Includes: 1 x 100mm Discoverer Diamond Cutting Blade Milwaukee 18v Collar Cutter - Skin Only Electric Collar Cutter Storage Bag

View
RC Chip Tray Storage Racking in Container

The Discoverer® Chip Tray Racking System is designed for bulk storage of RC Chip Trays in 20ft and 40ft sea containers. Traditionally, chip trays are stored in various DIY forms, from being put in cardboard boxes to being taped together on shelves. The Discoverer® Chip Tray Racking System provides a simple, safe and easy storage solution while allowing convenient access to chip samples in the long-term. The latest design also fits 3 racks perfectly onto a standard pallet, so shipping these to remote destinations is cost effective, easy and less susceptible to damage in transit. Product Specifications Chip Tray Racking to suit 20ft and 40ft sea containers Dimensions: 1100mm Long x 2100mm High x 350mm Deep Capacity: 560 Chip Trays per Rack Maximum 10 Racks per 20ft container and 20 Racks per 40ft container

View
Core Orientation Layout Logging Trolley

The Core Orientation Logging Trolley is built to make core orientation of up to 9m or 18m worth of diamond core quicker and more ergonomically friendly. 9m is for users that want to orientate 9m core, whereas 18m model will accommodate 3 core barrels worth of core on 1 single rack. The unit is flat pack style, so can be assembled and disassembled whether transporting it across the world or moving it from project to project. As it's made from an aluminium extrusion, not only is it robust and will last the distance in the core shed, but it's also lightweight (20kg) enabling it to be easily lifted from rack to rack if necessary. Aluminium is typically difficult to weld together, and can warp the material, whereas this 'no weld' unit ensures everything is straight and true along its length. The 9m core capacity model is 1.5m in length with 6 tiers. The 18m core capacity model is 3m in length with 6 tiers. FAQ's Does this Orientation Trolley suit different width of roller racking? Yes, the unit is customised to suit any width of roller racking, this is one of the main benefits of this system. Can the product be used on existing roller racking? Yes, no special roller racking system is needed. All that is required is some pictures of your existing roller racking and sizes and we'll ensure it's made to suit. We can even remove the wheels and make it suit A-Frames and old drill rod set-up for the smaller explorers.

View
Standard Portable Camera Frame

This is the Camera Photography Frame for explorers on a budget - off the shelf and 'Ikea' style! Can be customised to fit any type and size of core tray or core box... Plastic or metal core trays, wooden or cardboard core boxes, this frame will do the job. The modular kit form is perfect for flying. If you are a traveling geo consultant and want to add some value to your client, take it with you and whip it out on-site to impress. Made from lightweight aluminum profile, but still has a thick, heavy-duty profile to make it robust enough to be thrown around in the harsh mining environment. Best of both worlds. The tablet mount is optional - specify if you require it when ordering. Overall dimensions: 1150L x 400W x 1100H mm (Suits Coreboxes up to 3ft Long)

View
Discoverer® Tru Identiti™ Plastic Core Blocks

The Discoverer® Tru Identiti™ Plastic Core Blocks are essentially a direct equivalent to the old industry standard wooden core blocks, but made from plastic. Simple as that. They have an etched top surface perfect for writing on with a permanent marker pen and utilises modern, smart technology as they come with the same Tru Identiti™ stencil that’s built into the Series 4 Core Trays where the driller can trace the core depth. You no longer have to worry about hard-to-read handwriting, saving time and frustration downstream. The blocks will contribute to the streamlining of workflows in conjunction with the Imago software and will automatically detect the numbers on the core blocks and assign this data to the correct place within your geological software. We highly recommend iFine Pens to use for the stencil.

View
Adam DU Data Capture Utility for Adam Balances & Scales

Adam DU (Data Utility) is an application that allows you to quickly and easily capture data from an Adam Laboratory Balance or Weighing Scale and perform various functions on the collected readings. How Adam DU can help you Adam DU can be used to perform various tasks, such as placing collected data into graphs, performing basic mathematical statistical analysis, and exporting readings to several common file formats. The software can quickly export data to other applications (e.g. MS Excel, MS Word or the Windows Clipboard) and provides basic remote control of a balance/scale*. Adam DU can collect data from up to 8 different balances/scales simultaneously, and each data collection session can be individually monitored, configured and customised to suit your requirements. *Note: Various Adam products have different remote facilities. Features New: Adam DU can now speak the readings received, allowing greater accessibility for visually impaired users. Also useful if you want to stay informed of a scale's progress whilst completing other tasks. For more details, see the full feature list and more screen shots. Minimum Requirements Please note the minimum requirements for Adam DU have been changed to Windows XP SP2 with .net Framework v3 (see Download section for more details). License Cost Adam DU can quickly provide you with data, that is easy to integrate into any project for only $95. The software license entitles you to use Adam DU on one computer. Download the 14 day evaluation of the Adam DU capture utility now.

View
Discoverer® Automatic Core Cutting Facility

Ready to cut core with greater efficiency, safety and comfort than ever before? These air-conditioned containers are fully insulated, converted from a refrigerated shipping container into a purpose built Core Cutting Container that's perfectly suited to any mining or exploration operation. "As a geo I’ll take any excuse to wind up in this thing cutting core. It’s so safe it’s a pleasure to work in. Fully air-conditioned. I just love actually seeing the parts I wanted to sample cut open right before my eyes glistening wet!" - Edward Ellice-Flint, Junior Geologist at Medallion Metals Limited We've seen these used in a fixed location beside the core shed. You are able to feed core trays straight through the opening in one end of the container from the core shed feed line, have the core cut, and fed back out the rear. This means that Geologists and Field Techs in the core shed don't have to put up with the noise, dust and dirt of the Auto Core Saw operating in the open shed, or in a tin shed next door. For those conducting green field exploration who have a steady drilling program, these are the perfect option. Especially when you are moving around the country and want to take your core cutting facility with you, these are portable, easy to relocate, and safe to manoeuvre around. Operators love the air curtain stopping the flies from harassing the core cutter! We stock these units for rapid turnaround in Perth, Kalgoorlie and Gympie. As standard, each Core Cutting Container comes with: Corewise Auto Core Saw Corewise Water Recirculation Tank Roller Racking - Entry Racks in the door and Exit Racks out the rear Split system air conditioner Internal Lighting Anti Fatigue Matting Personnel Door in Side of Container 3 Phase Power Sockets PVC Air Curtains Customisation Options If you have certain customisations that you would like to add, we are more than happy to accommodate your needs. At times we've fitted acoustic paneling to the walls and ceiling to reduce the acoustic fatigue of the operator, change the position of the doors and added windows etc. Discoverer Customised Facility Example

View
Hospital Grade Disinfectants & Antibacterial Hand Sanitisers

We have been able to source Hospital Grade Disinfectants & Antibacterial Hand Cleansers to assist keeping drill rigs turning and personnel at mine sites safe at work amidst the COVID-19 crisis. AHC-5L - Wipe Out Antibacterial Hand Cleanser 5L Wipe Out has been designed for people with sensitive skin. Made from non-corrosive, mild ingredients to minimize skin irritation. Added emollients help to restore the natural oil content of the skin. Particularly suitable for use in pump dispensers in mess rooms, lunchrooms, at the rig or the core shed. Antibacterial Hand Cleanser with added emollients – 5L Active Ingredient: Quaternary Ammonium Compounds < 10%w/w Whilst this product has not been tested or approved by the TGA, the active ingredient is an accepted bacteria killer. See below discussion papers which gives more detail on the active ingredient. https://www.ncbi.nlm.nih.gov/pubmed/10676896 https://www.ncbi.nlm.nih.gov/pubmed/29540633 HGD-20L - Hygiene Hospital Grade Disinfectant 20L The Hospital Grade Disinfectant is supplied in 20L drums and should be used neat, any watering down will nullify the hospital grade characteristics of the product. Used for site lunchrooms, desks, equipment and anything else that needs to be disinfected. The 20L drums are supplied with a tap dispenser and can be dispensed into a standard cleaners spray bottle.

View
Manual Specific Gravity/Bulk Density Weighing Station

When you give up on the 'backyard' style of trying to weigh bulk density (or relative density) in core over the dust bin, this could be your next upgrade. Many Exploration Geologists talk about Specific Gravity. Industry thought leaders, are saying it should be fundamentally understood as Bulk Density. This takes into account mining bulk dry or wet tonnes, including cavities, voids, porosity etc. So however you term it, this is an easy way of achieving the measurements! The entire unit is constructed from aluminium and the cradle is made from stainless steel, so built to last. Complete with the rigid weighing arm construction means the scale settle time will be massively sped up. This is supplied is a complete ready-to-go solution: Scales, Aluminium Water Bath Reservoir & Stainless Steel Core Holding Cradle. Setup and get measuring within minutes. Check out this explainer video on how you can perform your own SG readings on site, in your own time. Read this article to understand exactly how this weighing station works along with the explanation as to why measuring specific gravity is important in Geology.

View
Fluoro Clay Target Markers - Drill & Blast Patterns

These clay drill hole survey markers are the solution for when spray paints or survey stakes aren't working on site, especially when the spray paint is fading or the ground is too hard for staking. Simply mark up your survey or grid pattern by placing these on the ground for a high visible mark. Standard Eco Clay Targets Each marker weighs 105grams and are supplied in boxes of 150, for a total box weight 16kg. They are 110mm in diameter and 25mm high. If there is a requirement to write on the markers there is a flat area in the centre which is 50mm in diameter. These survey markers are biodegradable. Colours Options: Fluoro Pink, Fluoro Orange, Fluoro Yellow, White and Fluoro Lime. Note: These can get easily damaged in freight if not packed onto a pallet, therefore we supply in MOQ amounts of 26 boxes at a time to ensure they get to site without breakages. Max in 1 pallet is 65 boxes (1 tonne). Battue Clay Targets These are slightly more expensive than the standard eco markers, and the only reason why miners may use these is because they want a larger 'flat area' in the centre to write on. They are supplied in boxes of 234. The diameter is the flat area is 80mm opposed to 50mm, but overall the marker is 108mm in diameter and 8mm high. These aren't biodegradable like the Eco Markers and only come in Fluoro Orange. Note: These can get easily damaged in freight if not packed onto a pallet, therefore we supply in MOQ amounts of 13 boxes (more per box than Eco) at a time to ensure they get to site without breakages. The images above show the 'type of shape' (there may be slight variations) of the Standard Eco and Battue Targets you can expect to receive. The image are meant to feature the colour options; they are not a representation of the shape.

View
Discoverer S4 Recycled Plastic Core Tray

The Discoverer® S4 Recycled Plastic Core Tray is the world’s smartest core tray. Built for core photography and core scanning technology, it’s designed with advanced features that will take your core storage to a completely different level! Has Tru Identiti™ stencil in-built on the core tray for a painless markup process. Works perfectly with the Imago geological photography software. When you take and save core photos, Imago reads the stenciled info and assigns it to the corresponding database on your computer. See it in action below: “We made the decision to switch [to Discoverer S4] for the purpose of better photos. The camera frame they supplied us sits perfectly flush around the circumference of two Discoverer trays, enabling us for a nice square on photo every time. The trays are larger, which is beneficial for us because the more core we can fit in a tray, the less trays we have to use. The trays seem to be a lot more durable than our previous trays which means they last longer and can stay in circulation longer.” - Geological Services Supervisor, Newmont Other Benefits of the Discoverer S4 Recycled Plastic Core Tray: Flat bottom. The patented flat bottom ensures smooth movement on roller racking and ball transfer tables in any direction or angle, without disturbing the core samples in the tray. Ergonomic grip bar. The 360° continuous grip bar makes handling so much easier. Whether pulling the tray along logging tables or lifting trays onto vehicles, you get a solid grip on any side of the tray. Stable stacking. The trays stack perfectly on top of each other without the tray above touching the core in the tray below, protecting your valuable core. Integral strength. The patented interlocking bracing between rows gives rigidity and strength through the entire length of the tray. Drainage holes. Both ends of the tray have drainage holes to keep your core dry and remain in good condition even in storage. Improved core logging. The bold Start indicator gives clarity to drillers and reduces potential errors, and the ID tag holders are moulded into front and sides of the tray for a permanent record of contents. All core trays in the Discoverer range are now made of recycled plastic Recent recycling technologies have made it possible for recycled plastic to be as robust as virgin plastic. This is also in line with Dynamics’ efforts to manufacture more sustainable products and support geologists and fieldies’ corporate social responsibility programs. Product Pallet (W x L x H) QTY on Pallet Weight in Tray Weight per Pallet (Incl Pallet) NQ S4 1074 x 1160 x 2320 114 2.35KG 283KG HQ S4 1075 x 1160 x 2320 93 2.44KG 243KG PQ S4 116x116x220cm 69 3.55kg 260KG Discoverer® Core Tray Comparison Video Check out the entire Discoverer range to make sure you are using the core tray that's best suited to your needs. Now, you might be asking: Does a Recycled Plastic Core Tray last as long as a Virgin Plastic Core Tray? The answer: Tried. Tested. Proven. When Discoverer® made the switch to manufacturing the Core Trays from repurposed Australian Kerbside Recycling, Dynamics needed assurance that this product would last just as long as our original Virgin Plastic Tray that has been proven in the elements since 1993. Following a robust QC Testing Process, by Australia's pre-eminent NATA & ISO Accredited Plastics Lab ExcelPlas, Discoverer® is the only Core Tray on the global market that has undergone this rigorous independent testing. By using Discoverer®, you're looking after the Earth while drilling the Earth. Absolute Peace of Mind Guaranteed.

View
Discoverer S3 Recycled Plastic Core Tray

Discoverer® Core Trays are manufactured in Australia and have been used by geologists worldwide since 1993. Its many unique features come from years of extensive development which has led to Discoverer® Core Trays becoming the industry standard for core logging, core storage and transportation. It is widely regarded as the best plastic core tray/core box, thanks to its strength and durability. Discoverer® Core Trays can be used in extreme weather situations, hot or cold due to its ability to withstand harsh environmental elements. "The Discoverer® S3 Core Tray's flat bottom makes for ease of handling especially on the roller racking at any direction or angle, much more friendly to handle overall. The main benefit of this was the core doesn’t move, disturbing our core orientation, so the logging time is greatly reduced and eliminates logging errors. 360 degree grip bar gives variance when tray handling in difficult, sticky situations. The amount of drainage holes help the wet core dry quickly, especially when the core is stored over time which saves the life of the core for future reference. The plastic core blocks stay where they are put and don’t move or bounce around." - Core Yard Supervisor, Aurelia Metals Here’s why you need the Plastic Discoverer® 'Flat Bottom' S3 Core Trays/Core Boxes: 1. Roller racking friendly. Core trays which don't run smoothly or bump on roller racking are difficult to work with and disturb the core. The patented unique flat bottom structure has been developed to ensure smooth movement on roller racking and ball transfer tables in any direction or at any angle, without disturbing the valuable core samples inside the tray. 2. Stable stacking. The unique stacking design means that the trays stack perfectly on top of each other without the tray above touching the core in the tray below. All Discoverer® S3 trays have the same footprint so you can stack the different sized trays (NQ, HQ, PQ) on top of each other when changing the core barrel size within a drill hole. 3. Extra channel height. When stacking core trays containing fragmented, protrusive core, there is a need to allow enough clearance between the core and the tray stacked on top. The Discoverer® 'Flat Bottom' S3 Core Trays/Core Boxes have increased channel height to maximise the stability of trays even with fragmented core. 4. Ergonomic grip bar. From any angle, from any side and to suit every single natural lifting position for any user, the 360° continuous grip bar makes the heavy lift simple. Whether pulling the tray along roller racking or lifting trays onto the vehicle, you can get a grip on every side of the tray with absolute ease. The grip bar is generously sized to suit even XL hands, and especially moulded for comfort, for both male and female geologists. 5. Clip-in core markers. Clip-in core markers are designed to optimise the use of the tray. The markers are colour-coded to match the trays and the top surface is etched, allowing you to record notes. 6. No logging errors. The bold start indicator gives clarity to drillers, reducing potential errors when logging the core. 7. Drainage holes. There are drainage holes at both ends to help your core dry out and remain stored in premium condition. 8. Indelible record. Built-in ID tag holders are now moulded into both the front and the side of the trays. These provide a permanent record of tray contents. 9. Integral strength. The patented interlocking bracing between tray rows ensures rigidity and strength through the entire length of the tray increases the longevity of the product in any tough mining environment. 10. Transportation stability. Unique Discoverer® Locking Links give superior stability when valuable pallets of core are moved around, whilst also eliminating the need for metal strapping. 11. Protection from the elements. Lids further protect your core integrity from the elements. They are manufactured from a durable UV plastic designed to last for extreme periods under the sun. 12. One-metre core capacity. Keeping core logging practices consistent and easy for the geologist means it is important to fit one metre of core in each row of your core trays. The Discoverer® S3 has a one-metre capacity in each row, to ensure that core logging is easier and that you use fewer trays in comparison with shorter trays. NQ S3 OD: 1065L x 385W x 72mmH Channel Diameter: 52.5mm Core Capacity: 5 metres Weight: 2.3kgs Pallet Qty: Truck - 99 ( 2220mm High) Standard Container - 105 (2343mm High) High Cube Container - 117 (2550mm High) HQ S3 OD: 1065L x 385W x 85mmH Channel Diameter: 65mm Core Capacity: 4 metres Weight: 2.37kgs Pallet Qty: Truck - 81 (2200mm High) Standard Container - 87 (2403mm High) High Cube Container - 96 (2519mm High) PQ S3 OD: 1065L x 385W x 106mmH Channel Diameter: 86.5mm Core Capacity: 3 metres Weight: 2.4kgs Pallet Qty: Truck - 66 (2280mm High) Standard Container - 69 (2343mm High) High Cube Container - 75 (2480mm High) As standard trays are supplied in Air-Force Blue colour, as they are manufactured from Recycled Kerbside Plastic. Special run colours are available on request, and min order qty applies. Product Pallet (W x L x H) QTY on Pallet Weight in Tray Weight per Pallet (Incl Pallet) NQ S3 1071 x 1160 x 2300 99 2.43KG 255KG HQ S3 1072 x 1160 x 2300 81 2.43KG 212KG PQ S3 1073 x 1160 x 2300 66 2.58KG 175KG Discoverer® Core Tray Comparison Video Check out the entire Discoverer range to make sure you are using the core tray that's best suited to your needs. Stock Locations: Gympie, Dubbo, Mt Isa, Adelaide, Perth, Kalgoorlie , Burnie, Bendigo Now, you might be asking: Does a Recycled Plastic Core Tray last as long as a Virgin Plastic Core Tray? The answer: Tried. Tested. Proven. When Discoverer® made the switch to manufacturing the Core Trays from repurposed Australian Kerbside Recycling, Dynamics needed assurance that this product would last just as long as our original Virgin Plastic Tray that has been proven in the elements since 1993. Following a robust QC Testing Process, by Australia's pre-eminent NATA & ISO Accredited Plastics Lab ExcelPlas, Discoverer® is the only Core Tray on the global market that has undergone this rigorous independent testing. By using Discoverer®, you're looking after the Earth while drilling the Earth. Absolute Peace of Mind Guaranteed.

View
Discoverer® Series 2 Recycled Plastic Core Tray

The Discoverer® S2 range of core trays / core boxes is a model that truly 'stacks and nests', a unique feature within the industry. This unique feature means that the trays can nest neatly inside of each other when being shipped empty, leading to significant savings in freight, and perfect when being shipped internationally. Yet when filled with core on site they simply stack on top of each other without the tray above touching the core in the tray below, such is the patent design. 3This S2 model has long been an industry favourite and many will recognise it from mine sites globally as it's our leading export product with whole shipping containers being regularly shipped all over the world to some of the remotest and largest mining operations. Benefits Built in handles on both ends of the trays provide safe and easy use when handling. Up to 50% more core trays/core boxes per pallet compared to competing products, delivering significant landed cost savings. Full Depth Channel height ensures the core sits below the ribbing, giving greater stability when stacking. Bold Start Indicator gives clarity to drillers, reducing potential errors when logging the core. Drainage holes throughout, helping your core to dry out and to remain stored in premium condition. Built in ID Tag area and optional Tags provide for a permanent record of contents. Has many accessories to compliment this model, Locking Rings, Lids, Lid Clips, Clip-in Core Marker Blocks, and so on. Strapping Slots ensure greater stability when palletised. Manufactured from the highest UV stabilized polypropylene available, giving excellent longevity, durability and peace of mind. NQ Series 2 OD: 1065L x 385W x 67.5mmH Channel Diameter: 52.5mm Core Capacity: 5 metres Weight: 1.9kgs Pallet Qty: Truck - 183 Standard Container - 192 High Cube Container - 219 HQ Series 2 OD: 1065L x 385W x 81mmH Channel Diameter: 65mm Core Capacity: 4 metres Weight: 2.3kgs Pallet Qty: Truck - 144 Standard Container - 156 High Cube Container 177 PQ Series 2 OD: 1065L x 385W x 106mmH Channel Diameter: 86.5mm Core Capacity: 3 metres Weight: 2.4kgs Pallet Qty: Truck - 120 Standard Container - 126 High Cube Container - 141 Product Pallet (W x L x H) QTY on Pallet Weight in Tray Weight per Pallet (Incl Pallet) NQ S2 1070 x 1160 x 2208 183 1.97kg 381kg HQ S2 1070 x 1160 x 2185 144 2.12kg 317kg PQ S2 1070 x 1160 x 2224 120 2.39kg 303kg Discoverer® Core Tray Comparison Video Check out the entire Discoverer range to make sure you are using the core tray that's best suited to your needs. Now, you might be asking: Does a Recycled Plastic Core Tray last as long as a Virgin Plastic Core Tray? The answer: Tried. Tested. Proven. When Discoverer® made the switch to manufacturing the Core Trays from repurposed Australian Kerbside Recycling, Dynamics needed assurance that this product would last just as long as our original Virgin Plastic Tray that has been proven in the elements since 1993. Following a robust QC Testing Process, by Australia's pre-eminent NATA & ISO Accredited Plastics Lab ExcelPlas, Discoverer® is the only Core Tray on the global market that has undergone this rigorous independent testing. By using Discoverer®, you're looking after the Earth while drilling the Earth. Absolute Peace of Mind Guaranteed.

View
Gravity Roller Conveyor Tables for Core Trays

We stock a wide range of gravity roller table conveyors to suit any core shed application and have designed many systems to meet your exact requirements, specializing solely in Core Shed Design, using standard stock roller racking parts for many years. Step 1. Send Specs Send us your shed drawing, a sketch with measurements or professional drawing; either is fine. Step 2. Complimentary Design We will professionally draw up your entire shed layout, working with your needs and using our extensive experience of the many core shed applications we've completed. Simple concept design layout shown left and below. Dynamics Designed, Manufactured & Supplied Core Shed Step 3. Sign Off Sign off on the drawing, finalise the quote, and place your order. Generally we stock standard components, so can have your lean and efficient new core shed up and running within a matter of 1-2 weeks. Large or customer projects may be subject to a longer lead time, and will be advised at time of order. FAQ: How many rollers do you need per metre? As standard we suggest putting rollers every 75mm; however, it’s largely dependent on which way you log the core and move the trays along. If the trays are only going to be logged and moved along parallel with racking then you can 'get away with' putting the rollers at 150mm centres. If you plan on moving the trays “sideways” along the racking (long side of the tray leading), then it’s recommended that you have the rollers at 75mm. Additional rollers can be easily retrofitted. FAQ: How many support legs do you need per section? We suggest at every 3m straight section join when the trays will be moved parallel with the racks. However if you plan on moving trays sideways, due to the weight per metre of rack, it's highly recommended to have an additional support leg in the centre of every 3m section. See our blog on How to achieve a world-class core shed workflow within the most basic of facilities -------------------------- For customers keen to plan out what's possible if their core shed, you may find a list of standard components below. Typically our most popular core shed size is the 600mm width rollers, as this offers the flexibility to run your core trays lengthways or sideways without becoming a WHS risk. However, if the budget is tight and you'd like to look at the 400mm option, you can expect this system to typically cost between 5-10% less than 600mm system. Have you seen the Latest Fixed Camera Frame? It's designed for bolting to Roller Racking as a permanent fixture. Click on the image for more details.

View
Discoverer® Heavy-Duty Plastic Pallets – Core Tray Use

If you believe that the thousands you spend on the drill program means your valuable core data is worth protecting, then the Discoverer® Heavy Duty Plastic Pallets could just be what you need. 5 Major Benefits: - 100% Recyclable - Perfectly fits Plastic Core Trays - an industry first! - Built to sit outside in the harsh Australian Outback for many years - Will never get eaten out by termites or white ants, which is prevalent in Australia & South America Technical Specifications: - Size: 1200 x 1100 x 150mmH - 4-way entry for easy handling with forklift or pallet jack - Robust but lightweight at 17kg - SWL: Static: 4000kg, Dynamic: 1000kg - Very high chemical resistance, particularly acids and alkalis The Discoverer® Heavy Duty Plastic Pallets have been specifically developed with a select handful of leading mining companies, and are purpose-fit for Discoverer® Recycled Plastic Core Trays, among other brands of similar dimensions. Good to Know We are not willing to take risks with your core samples, so we've done everything possible to ensure these are the the most suitable for storage of your core trays outside in the elements. You can most certainly get cheaper ones from general suppliers, but we've produced these specifically for the industry and the harsh conditions of a mining or exploration site. There was a case study of a drill core library that had plastic pallet failure to the tune of $200k when they used an off-the-shelf option suitable for general freight. So we are fine if you feel the need to purchase a cheaper product elsewhere. we won't hold that against you but we won't risk it with your samples personally. We like to sleep at night knowing the Discoverer® Plastic Pallets will be good for life in the sun. Supply Capability The Discoverer® Plastic Pallet is stocked in both our Perth and Queensland warehouses for rapid delivery anywhere in Australia or Internationally.

View
Discoverer® Fixed Core Photography Camera Station

For too long the industry has not been able to source a tested, proven and user-friendly solution to making the tedious but highly important job of taking core photographs simple and consistent – now that’s changed! So, what’s all the Hype? It's Modular After shipping 'Pre-Built' core photography frames all over Australia, inevitably they didn't survive the journey therefore modular made a lot of sense. The Core Tray Photography Camera Station package is a fraction of the size and still remains in mint condition however remote or whatever country we have to ship to. It's Consistent Anyone of your team might be able to click a button on a camera but it’s the result that counts, right? This system will mean, whether it be your most junior team member, or the experienced members, we can GUARANTEE no distinction between the photos no matter who the user is. Any Tray or Box anywhere Plastic Core Trays, Cardboard Core Boxes, Wooden Core Boxes, Africa, Aussie, North America, South America, Asia, North Pole – you name it, it’ll handle it. Benefits & Accessories Firstly the unit can be supplied with an optional Laptop Table that can be moved up and down, as well as able to swing around the side of the frame out of the way on its back-axle hinge. The Quick Release Clamp for the camera that is adjustable up and down…you’ll want your camera accessible quickly at any point of the day, replace a battery, complete a download, or bringing it inside every night. The adjustable Positioning Bar is designed so you can butt your core tray up to it which will ensure that your tray sits in the same place every time, for the perfect picture. For those wanting to convert this fixed-frame unit into a rolling camera frame unit, there is an optional wheel kit that can be purchased separately (product Code: FCFWK). And for those who wish to use this wheel kit, we also have an optional battery kit for the LED lights in the instance that you want to be completely unencumbered by power cables. The battery charger kit includes 2 x Neewer NP-F550 batteries and a dual slot charger. Finally, the ‘flap-doors’ in and out of the unit perfectly shut out all the light you don’t want, whilst allowing you to push your tray into and out of the frame with complete ease. Note: For the avoidance of doubt, the roller racking in which this unit fits on isn't included in the price. Either we manufacture these to suit your existing racking, or supply a length of racking as additional. Good to know We’ve built this for operations with roller racking conveyors in their core shed. The unit will bolt onto the roller racking side channels becoming a very sturdy unit. Extra’s We believe we’ve found the perfect light to create the most luminous, homogeneous glow over the core…but this didn’t come without a lot of time and trialing many varieties. We highly recommend you use these lights as this will lead to the greatest consistency whether in direct sunlight or taking photos in the twilight hours. You shouldn’t be able to detect the difference in your quality of image. Test it in action? This is an early 2019 creation so not everyone out there has got one yet…but for your peace of mind talk to us about the opportunity to come and try for yourself at our Innovation Hub in Perth. It's always best to ask our team before rocking up just to make sure we haven’t rushed the latest model out the door for a eager customer! What’s my other options? Before you go too much further you might want to consider your other options? Particularly if you are a smaller explorer and every dollar counts, then check out our Discoverer® Core Photography Camera Portable Frames. Down scale, and take your Camera Station from one tray to the next with this lightweight, but perfectly suited piece of equipment. For more details on this unit contact the team today. Our Geological Product Specialists’ are happy to talk you through this unit and even supply high resolution images for you to view before committing. There's nothing like seeing how your core photos are going to look before you start! Looking for the perfect software to capture and catalog your images? Check the Imago Software here. Through all our testing we also managed to hone in on suggested perfect camera settings to achieve great results in core photography, regardless of external conditions. You can read that free guide here: Best Camera Settings To Achieve Quality Images When Photographing Core NOTE: The image of the core tray shown in the picture below is low resolution so as not to slow down the website, but the images you will take on site will be high resolution. This image is a wet core image, as that's what most of our customers struggle with and illustrates the ability of the core photography frame to take the perfect picture. This image hasn't been edited or cropped, it's exactly how the camera will take the image when mounted to the Discoverer® Core Photography Camera Frame. Auto Watering System For Discoverer® Fixed Core Photography Camera Station The wheel of geology innovation keeps turning with the Auto Watering System to quickly and easily take Wet Core Photos! This is a retrofit system for those already with the Fixed Camera Frame unit on site. Discoverer Fixed Core Photography Station - FPFU *Including Canvas Cover, LED Lights, Positioning Bars & Laptop Table * *Comes standard with a Black Canvas*

View
Discoverer® Portable Core Photography Frame System

The Discoverer Core Tray Photography System is designed with A frames that are specially designed to fit the Discoverer® Core Trays, so select the right frame for the trays you use as they 'locate' neatly onto the tray when moving the frame from one tray to the next along your racking - the perfect addition to your Core Shed. The units are made from a strong, sturdy and lightweight aluminium frame, so lifting the frame is OH&S friendly as they only weigh a few kg's. For more details on this unit, contact the team today. Our Geological Products Specialists would be happy to talk you through this unit and even supply high resolution images for you to view before committing. There's nothing like seeing how your core photos are going to look before you start! If you're looking to get a bit more serious, and can't be bothered with lifting around your Camera Frame, check out the Fixed Core Photography Stations. From our customers experience the Canon EOS DSLR Range works best with this Camera Frame - these are constantly updating so confirm the latest available model. NOTE: The image of the core tray shown in the picture below is low resolution so as not to slow down the website, but the images you will take on site will be high resolution. This image is a wet core image, as that's what most of our customers struggle with and illustrates the ability of the core photography frame to take the perfect picture. This image hasn't been edited or cropped, it's exactly how the camera will take the image when mounted to the Discoverer® Core Photography Camera Frame. Dry drill cores inside the portable camera frame Wet drill cores inside the portable camera frame

View
Discoverer® Chip Tray Pods

Get a better representative sample and collect more data, while improving workflow efficiency Our new Chip Tray Pods revolutionise the way you handle RC samples. Save cost and time whilst producing more accurate samples. 1. Better representative sample Each pod holds 3 times+ more sample than a standard chip tray compartment - large enough to enable re-assaying. The larger sample enables XRF and multi-element sampling capability, meaning you can gather more data. 2. Optimised workflow Easier to fill - use the chip tray pod as a sample scoop. Load up to 50 small and 30 large pods in one Discoverer core trays/box - easy to handle like you would diamond drill core. Quicker to photograph - capture image of all pods loaded into a core tray/box in one go, reduce manual handling. 3. Secure and easy to store Store in the same way you would your diamond core - secure stacking, as well as sealing using the optional foam insert which can be used between trays in a stack, or between a lid and a tray. Store your pre-collar with your diamond tail on the same pallet or your whole RC program on the same pallet. No need for expensive containers or racking - can be stacked in the trays/boxes outdoors with confidence, ISO tested to last 25+ years. Two sizes available: Large - 166 x 54 x 46mm (L x W x H) Small - 98 x 54 x 46mm (L x W x H) Try before you buy! We offer a free trial to new customers of this product - submit a quote below and reference free trial in the notes, and our customer service team will take it from there! Ordering tip: We recommend using Chip Tray Pods with our Discoverer Series 6 Core Tray/Box - NQ size. You will need to order 1 core tray/box for every 50 small pods and 30 large pods. To keep your samples safe and secure we have developed a foam insert that goes either between two stacked trays/boxes or between the tray/box and the lid.

View
Discoverer® Half Core Holders

Discoverer® Half Core Holders raise cut core to the top of the channel in Discoverer core trays, enabling the scanning of core easily when used in conjunction with current leading geological scanning systems. Two sizes are available to suit both HQ and NQ core.

View
RC Chip Tray Sample Photography Imaging Station

If you've ever wanted to capture your RC Chip Tray samples in high resolution in 20-30 seconds whilst keeping things simple and budget-friendly, this could be your solution. Built to be used in conjunction with the Imago software, you can take this portable unit with you anywhere and set-up quickly and easily. Capture your images at the rig, if you like! See the RC Chip Tray Sample Photography Imaging Station in action in the video below, as used by our partners in Evolution Exploration: Place your chip tray against the adjustable positioning bar, adjust your camera up or down as required, take your pictures and let Imago stitch them all together. Choose the amount of compartments you capture at a time: For a closer view, zoom into 2 compartments and take 10 pictures along the length, or Raise your camera and take pictures of 5 compartments to complete the chip tray in 4 captures to speed up the process Below is an example of the detail you can achieve with this unit and Imago. "The RC Chip Tray Imaging Station has been a great addition to our photography workflow and is instrumental in producing high-quality imagery of drill chips. Combined with Imago, it allows us to seamlessly integrate images of drill chips and rocks into our 3D models and quickly share the information between geology teams across Australia and the world. We have greatly improved the quality of our imagery whilst working with Dynamics G-Ex, which has led to more robust geological models and reduced the burden of tedious tasks, such as renaming files and manually cropping and editing photos." Matthew Peacock, Project Geologist - Discovery, Evolution Mining If you want to Auto this process check out the Automatic RC Chip Photography Station.

View
Discoverer® Folding A Frame Trestle

It's the core logging trestle that can fold away! The Folding A Frame Trestle is flat-pack and foldable, perfect for transportation and storage, and saving valuable space in core yards or during fieldwork. You can store 5 foldable trestles in the same space as 1 fixed trestle. Key Features and Benefits: Folds for space-saving freight Weight rated to 450kg Lockable legs for safety Provides a sturdy platform for your core samples in core trays Dimensions: Folded: Height 12cm Width 96cm Depth 90cm Standing up: Height 90cm Width 96cm Depth 93cm If you’re out of old drill pipe, we can provide you 50NB 3250mm galvanised pipe to do the job. To extend your logging table you simply need to use the pipe inserts, which slip over the ends of the drill pipe and provide a ‘socket joiner’ to join the pipes together and continue on the table. How it works: A standard Trestle Kit consists of 2 x A-Frame Trestles and 2 x Lengths of Pipe. If you want to extend it, you simply order another 2 x Lengths of Pipe, 2 x Pipe Joiner Kits and 1 x A-Frame Trestle.

View
4C Plastic Discoverer® 'Flat Bottom' Series 3 Core Trays

The Discoverer® Series 3, two-row 4C Size (100mm) Plastic Core Trays are perfect for large and heavy diamond core extracted in a typical coal exploration project. We've also noticed hard rock clients drilling 100mm core for bulk metallurgical sampling & using metal core trays. Now you can get OH&S compliant with these plastic core trays now available. In collaboration with BHP Mitsubishi Alliance (BMA), we've developed and released this tray to the market as the safest and user-friendly option, meeting all their strict criteria. Gone are the days of using bulky and dangerous metal core trays for this type of drill program. The plastic used in this core tray means it doesn't heat up like a metal tray in the hot sun, and there are no sharp edges, eliminating cuts and LTI's caused by using metal trays. The Discoverer® Series 3 is designed with a unique base that would roll along smoothly on roller racking and multi-directional transfer tables. It also has a continuous grip bar running right around the tray, so it is easier to lift from your natural lifting position and more OHS-friendly. Don't miss out on the other benefits this tray provides: Stable Stacking. The unique stacking design means that the trays stack perfectly on top of each other without the tray above touching the core in the tray below. You only need to get a lid for the tray on top. Note that this particular model of core tray can only be supplied with a metal lid. No Logging Errors. Bold Start Indicator gives clarity to drillers, reducing potential errors when logging the core. Drainage Holes. Drainage Holes at both ends, helping your core to dry out and remain in premium condition when stored. Indelible Record. Built-in ID tag holders are now moulded into both the front and the side of the trays. These provide a permanent record of tray contents. Integral Strength. The patented interlocking bracing between tray rows ensures rigidity and strength through the whole length of the tray and increases the longevity of the product in the tough mining environment. 1050mm Core Capacity. Keeping core logging practices consistent and easy for the geologist means it's important to fit 1m of core in each row of your core trays, as well as your core foam (as required) into the extra 50mm at the ends of the tray. 4C Series 3 OD: 1120L x 320W x 125mmH Channel Diameter: 110mm Core Capacity: 2 metres Colour: Grey Weight: 2.5kgs Pallet Qty: 64

View
Discoverer® Automatic Specific Gravity Weighing (SG) Station

Do you struggle to accurately, quickly and consistently measure the specific gravity in your core samples? Many times Geologists & Field Techs have asked us; 'There must be a solution to achieve this, especially with high volumes of core being processed?' So the journey towards innovating, developing and building an Automatic Specific Gravity (SG) Weighing Station began! So maybe you are used to a Manual SG station? Whether in a stainless steel tank, or as simple as using the site wheelie bin - most of us have been there when it comes to improvising! The real question is how much time are you waiting for the scale to settle and how accurate is your reading after settlement? Our customers have reported this can be up to 1 minute or longer for each reading - we invite you to do the physical test yourself! We'd like to submit to you, if you no longer had to wait any prolonged period of 'settling' time and could guarantee accuracy up to 2 decimals places within 2-3 seconds what impact what that have on your site financial efficiency and save in your time? Or maybe you don't do SG measurements in any volume now because it's always been that little bit too hard? If you could achieve this with absolutely simplicity what impact could that have on the value of the data you could gain out of your hard earned core samples? They cost enough to extract we'd submit to you it makes sense to gather as much data as physically possible from what you have. "We use an automatic SG station and I must say it’s the most efficient set up for SG’s that I’ve ever used in my 8 years in the industry. The scales settle quickly and it’s very user friendly. Well worth paying for to gain the extra efficiency with this task that can often be tedious." - Independence Nova Pty Ltd So how does it work? Firstly the basket weight is zeroed out on the scales. The heavy duty stainless steel basket is then loaded with up to 1.4 metres of core sample. The basket is then loaded onto the bottom rack which weights the dry core on the scales above it and an 'in-air' measurement is taken of the dry core. Following this, the basket is lowered into the water reservoir for a 'in-water' measurement. No need to move the basket from the top rack to the bottom rack, it's all measured from the bottom rack to stop shoulder injuries of moving a fully loaded basket. The accuracy of the reading taken in water is determined by the controlled ability to mechanically lower the basket into the water virtually eliminating scale settlement time and 'water slosh'. Secondly keeping the reservoir at a constant water level is achieved by the water being fed continuously into the main tank reservoir by the pump from the secondary water tank. This ensure the sample is measured in the same volume of water and same depth under the water every single time - critical if accuracy is important. The self leveling water outlet in the corner of the main tank then maintains the water level at a constant, regardless of what weight is lowered into the main tank. The unit is OH&S friendly, with the whole movement control of the unit coming from the wired control switch that is fitted with a dead man switch. The instant the operator takes their finger from the button, the unit will stop. The whole unit being subject to a wet environment is built from a stainless steel construction, which ensures the longevity of the unit that is built to last in the mining environment for years. Like any accurate performing equipment, to ensure the accuracy is not compromised and that the moving parts don't foul up, especially the rails in which the lowering weighing table operates on, the operator must keep the unit dust-free and clean. An enclosed, dust free environment just next door to the core shed is ideal. We have built and seen operations with a roller racking in-feed straight from the core shed into an enclosed modified shipping container, where the operator is in a comfortable environment weighing the core, and then an out-feed back into the core shed for the processed core trays. Talk to one of our Geological Products Specialists next time you are in contact! To allow for extra working bench top, the unit has keyholes cut in both sides of the machine on the legs, which means that you are able to fit the Heavy Duty Stainless Steel shelf to either the left-hand or right-hand side of the weighing station, dependent on what suits the space you have on-site. The standard unit comes with one shelf, but an addition shelf can be supplied upon request if you'd like to have a working bench top on either side of the weighing unit. What's Included - Stainless Steel Weighing Station Unit - Weighing Scales CBK 16 - 16kg Capacity x 0.5g Readability. Pan Size: 225x275mm (Capable of accuracy to 4 decimal places) - Heavy Duty Stainless Steel shelf x 1 - Power board for operating Scales, Water Pump & Actuator Technical Specifications Water Pump, Actuator & Scales are powered by an standard 10amp Plug Built in Australia Maintenance This is an extremely low maintenance unit. Requirements are for the operator to apply a light oil to the weighing table rails as required. Keep the unit in a dust free environment for accurate operation. Keep the supply tank topped up as required. Warranty The unit is covered by a 12 month warranty. The scales are covered separately by the respective manufacturers warranty.

View
ProFab® Superior Drawstring Calico Sample Bags

The ProFab® brand of Calico Bags has been popular with geologists for their fine woven qualities, suitable for retaining fine samples in RC drilling or larger samples when diamond drilling. They have double-stitched seams and a tough, durable drawstring. What's more, they can be very easily printed and/or barcoded according to your requirements. This makes the transportation from the rig to the laboratory smooth and easy, whilst keeping track of valuable samples every step of the way.

View
ProFab® Superior Pre-Numbered Drawstring Calico Sample Bags

Our speciality ProFab® geological sample bags are made of high stitch count calico, equipped with a naturally polished drawstring. They are printed with a water-resistant, and insect- and mildew-proof sequential printed number on the front, in your specified alphanumeric configuration. Easy-to-read numbers with industry-exclusive 45mm high print Very fast turnaround time against industry standards, thanks to our in-house printing facilities on both West and East Coasts of Australia "Quality product, very durable. Love using these calico bags." - Red River Resources Designed and manufactured exclusively by Dynamics in consultation with experts in the field as a premium product for use in the harsh Australian outback. We pride ourselves in leading the way with identification systems that work for our clients, to make the transportation from the rig to the laboratory smooth and easy, whilst keeping track of precious samples every step of the way. Please specify your alphanumerical print at time of order. All we need from you is a spreadsheet with your unique requests and we'll print it exactly — no extra lead time or cost to you! Our preferred minimum order is 10,000 bags at once due to machine set-up, but we can accommodate less if required.

View
ProFab® Superior Pre-Numbered & Barcoded Drawstring Calico Bags

Our speciality ProFab® geological sample bags are made of high stitch count calico, equipped with a naturally polished drawstring. They are printed with a water-resistant, and insect- and mildew-proof sequential printed number on the front, in your specified alphanumeric configuration. Then we supply the barcode tag, which is resistant to weather, heat, tear and water, and can be printed in any barcode format to suit your specific system. This is either stapled or sown into the bag seam, and corresponds with the printed number on the front. Barcode Specifications - We customise to suit you! Our customers usually find that a standard 75mmH x 80mmW barcode ticket works for them. However any reasonable size barcode can be produced; just specify what you need. If your requirement is time-bound, we can staple the barcodes to the seam of the bag using heavy-duty stainless steel staples. If timing is not critical, we can sew the barcodes into the seam of the bags in our overseas manufacturing plant and pack them into our containers of stock. Lead times are typically 4-6 months, dependent on the time of year, but if you'd like to have bulk stock produced for your forward planned programs this is possible. For example, customers have ordered the upcoming year's requirements in July or August and get them in January of the following year, with enough stock to cover them for the year. If you prefer to clearly see the printed numbers, the standard print size we offer is a large 45mm high print. "I would like to thank you and your team for the continuous support your company has provided us. Since converting to the calico bags, we have not had any issues. The bags are holding up to the conditions we encounter here in the tropics, and we are finding them durable during transport to the lab. The barcode system and ticketing system we have developed over time suit our operation requirements. The lab has also reported success with the quality of the new bags. The tickets, barcode and bag printing have all been standing up to this seasons' drilling program." - Exploration Supervisor, South 32 Mining Designed and manufactured exclusively by Dynamics in consultation with experts in the field as a premium product for use in the harsh Australian outback. We pride ourselves in leading the way with identification systems that work for our clients, to make the transportation from the rig to the laboratory smooth and easy, whilst keeping track of precious samples every step of the way. Please specify your alphanumerical print at time of order. All we need from you is a spreadsheet with your unique requests and we'll print it exactly — no extra lead time or cost to you! Our preferred minimum order is 10,000 bags at once due to machine set-up, but we can accommodate less if required. Case Study: The Challenge: To provide a sequentially printed calico bag, with a corresponding ticket stapled into the seam and a 'cheque book' style ticket book with all the specific sample details left inside the book for record-keeping. The Result: Achieved entire scope, with a 50-leaf ticket book inserted into the box for ease of use in the field. Calico Bags with 50-leaf ticket book and corresponding numbers printed on the bags with tear-off tickets stapled to the seam. Tag Examples:

View
Samplex® Green Heavy-Duty Plastic Sample Bags

These geological sample bags possibly contain one of the highest levels of UV stabiliser in the industry, retaining valuable samples longer and making them one of the most heavy-duty bags in the market. Product features Easy-to-read, large white write-on panel Tough and burst resistant, with double-welded bottom seal Improved puncture resistance virgin plastic Last longer in sunlight Large stock holdings for immediate dispatch Number printing In addition, just like the calico bags, we are uniquely able to print any sequential alphanumeric digits directly onto the white panel on these bags, with a large 45mm high print. This eliminates human error, and saves time and cost in getting your valuable people to do this process. Generally we print on the larger 600x900mm bags, but we can accommodate printing on the smaller bags if required. Just ask! Typically the Green UV Bags are numbered in metre intervals, e.g. 000-001, 001-002, 002-003 and so on, so your team doesn’t have to spend valuable time numbering up the sample intervals on your projects. Usually we print batches of 100 or 200 bags at a time, from ‘000-001’ to ‘099-100’ or ‘000-001’ to ‘199-200’ respectively. For example, if you order 10,000 bags we can print 200 bags starting at 000-001 (Bag #1) right up to 199-200 (Bag #200), and then repeat for the next 200 bags, so you always have enough numbered bags for your first 200m when drilling new holes. If you require numbers higher than 200m, just tell us and we’ll make it happen. Melting Point A question we get asked is on the melting point of the bag. The melting point is determined by the raw material used, which for our bag is 110 to 130 Celsius. However the Vicat Softening Point must be considered, which is the moment the plastic becomes malleable. For our bag with the current raw material used, this is 60 Celsius. If you need more information on this subject get in touch with our team telling us what type of over you use and how long the product tends to be in it.

View
Specialty Plastic Bags

Dynamics holds a range of specialty bags in stock for specific clients as our factory can produce any size and colour of plastic bags, providing volumes are above the minimum order quantity. Below are the sizes we stock that are available for purchase as required.

View
Samplex® Ziplock Resealable Bags – Heavy Duty

These quality, heavy-duty, transparent ziplock (press seal) resealable poly bags are suitable for a wide range of packing applications, but most commonly used in the geological field for soil and small rock sampling. They can be filled and then easily sealed by hand. Due to their airtight properties and the reusable seal, they are ideal for packing and storing small components and spare workshop parts too, such as nuts and bolts, etc. These bags also feature a convenient white 'write-on-panel' for notes of content and other important information.

View
Samplex® Wet-Strength Geochem Pulp Bags (Wire Tie)

These bags are manufactured from a high wet-strength brown kraft paper or geochem, designed to take both wet or dry pulp samples. Wet-strength, as the name implies, enables the walls of the bags to retain samples when wet. They have a quick-action wire tie closure clip that folds over and seals the bag when they are transferred to the ovens to dry out. The main use of the wet-strength brown kraft paper bags is for drying out and storing rock sample pulp from exploration or mining companies sending in their samples for assay results. The lab crushes the samples to a pulp and then uses the Geochem Pulp Bags to dry or send back to the company once the assay is completed. The bags also can be used for soil samples, milled RC chips or seeds. Laboratories all around the world prefer the Samplex® brand of wet-strength Geochem Pulp Bags. Dynamics is recognised as the largest global supplier of this product and regularly ships to various labs globally. Dynamics can also supply these bags with number & barcode on water-resistant stickers for total ease of tracking. This product can be supplied by the carton, pallet or in container loads. We regularly supply container loads with a mixed batch of goods internationally, so we are competent at packing and shipping. NOTE: These Geochem Bags are also known in the industry as Wet-Strength Bags, Paper Bags, Pulp Bags, Wire Tie Paper Bags or, as the brand most laboratories demand, Samplex® Wet-Strength Geochem Bags. Ask specifically for the Samplex® brand!

View
Brown Kraft Paper Bags – Geochem Sample Envelopes

Brown Paper Bag (Trojan No.1) 95Wx195Hx45mm Gusset 70gsm-500/Pk A2135 These plain brown paper bags can be used for all sorts of applications. Grab a bargain whilst stocks last on this versatile product. Note: These are not wet-strength bags. These are sometimes referred to as lolly bags.

View
Samplex® UV-Stable Polywoven Sacks

The Samplex® Polywoven Bag Sacks are ideal for transportation of heavy samples and designed to take multiple pre-bagged samples bagged in smaller bags, such as the ProFab® Calico Bags or the Samplex® Green Heavy Duty Plastic Bags. They are UV stable and made for durability. For easier and identification at the laboratory, Dynamics also offers to print the front of the bags: Your Company Logo (optional) To: Lab Name From: Company Name & Details

View
Samplex® Bulk Bags (FIBC) – 1 Tonne Capacity

Dynamics specialises in Bulk Bags, otherwise known as FIBC's (Flexible Intermediate Bulk Containers), for mining and exploration operations. Samplex® Bulk Bags are designed to take your pre-bagged bulk samples in transportation and storage, as well as raw materials in the mining/exploration industry. However, they are also used in a variety of other industries, such as agricultural, landscaping, and for storage or transport of bulk produce. Bulk Bags are great when you want to send one bulk load of samples to your lab rather than many smaller polywoven bags. All Bulk Bags conform to Australian Standards. They're packed at 250 bags per pallet, but can be supplied in any smaller quantity as required. Note: Other configurations of Bulk Bag size, weight & specification can be supplied from our factory upon request and providing it meets the Minimum Order Quantity required. We do stock one size that's suitable for most mining & exploration applications.

View
Bag Tie Tool Long Handle

This tying tool is designed to give maximum pull strength with minimal effort. Used in a wide range of industries, like concreting, mining, civil and the food Industry. This tool has proven itself to be extremely robust, and will be in your tool bag for years to come. Easy to use twisting tool used with preformed wire ties Quickly twists and tightens ties around metals and plastics Smooth operating spiral spindle Reinforced ring to prevent unnecessary wear when hook-end returns

View
Wire Ties 150mm 2000/Bundle

These Wire Ties are perfect for the fast securing of heavy bags or sacks. Ideal for bundling rods, hessian sacks and heavy-duty polyethylene bags.

View
Black Cable Zip Ties – UV-Stable & Heavy-Duty

Our cable zip ties are high performance and made to exacting standards, perfect for the sealing of bags and signage, amongst many other uses. Weather, corrosion and UV resistant for long-life performance in most indoor and outdoor conditions.

View
Aluminum Permatags 25x75mm, 1000/Bag

Aluminum Permatags are designed to be used for sample identification. They can be easily marked with a scribe or pen for easy identification and an indelible record on the tag. Permatags are 25x75mm and come packed in bags of 1000. They can be supplied on their own or with a convenient copper wire tie.

View
Water Resistant Ticket Book, 50 Leaves

With the help of experienced geologists, Dynamics G-Ex has developed one of the most user-friendly Water Resistant Ticket Books in the field. Each book is 50mm x 165mm, and contains 50 duplicate, sequential tear-off numbered tickets for quick and easy sample identification. These sequential numbers can be custom printed, so if you have a specific alphanumeric sequence you'd like to use this is easily achievable. Or you can simple draw from Dynamics stock ticket books that have a generic range of sequential numbers already printed on each ticket. Each tag is numbered, and contains fields for your Company Name, Sample No., Lease Name, Drill Hole No. and Hole Depth details. As our books are manufactured from field safe water-resistant paper, your sample notes are protected from the drilling fluid and dirt, and retain critical sample data in pristine condition through extreme weather variations right across the globe. While other ranges of ticket books require speciality pens to utilise the tickets effectively, these ticket books only require standard ink pens or pencils! Note: Dynamics is able to quickly supply numerous specification tags for sample bags and apply them on our clients' behalf. If you have particular size, shape or printing specifications in mind, just let us know. Whether in book form, individual tags, or even tags on a perforated roll, we are able to achieve a myriad of options for you, subject to minimum orders for the print machines we run.

View
Bostich P6C-8 Stapler & Staples

The legendary Bostitch P6C-8 Industrial Plier Stapler offers you the legendary Bostitch performance in a heavy duty fashion! The easy squeeze lever action offers you powerful penetration with minimal effort whatever you may be stapling, and certainly perfect for attaching tags to sample bags as required. The innovative 'no-jam' technology eliminates frustrating staple jams and improves productivity and quality. The durable all-metal construction will provide a lifetime of precision stapling. To suit the stapler, we supply the Bostitch STCR 5019 high-quality staples. Made from galvanised steel specially engineered to staple up to 50% more thickness than a standard staple, it will last out in the field."

View
205 L (45 gal) Steel Drums – Sample Transport Barrels

The easy, secure, and efficient way of storing and transporting your samples. Put your ProFab® Calico Bags or Samplex® Green Heavy Duty Sample Bags straight into these Steel Drums, and send them off to the lab. Ideal in humid conditions, when your polyweaves are at risk of breaking down under UV radiation. Please note these are recycled units that have been cleansed and reconditioned.

View
Discoverer® Sub-Zero Core Trays (to –50 °C)

The Discoverer® Sub Zero Core Trays are available in all sizes, and in Series 1, 2, 3 and 4. They are designed to withstand prolonged freezing conditions of up to -50degC / -58degF and ideal to use in colder climates. Typically we'd supply this to mining sites in colder countries in the Discoverer® Series 2 model, since it's best for international shipping due its nesting feature when trays are empty. You are welcome to request another model of the Discoverer® Series in this specialised material. Minimum production run quantities will apply.

View
Discoverer® Flat Bottom Series 3 Black HyLogging Core Trays

The Discoverer® Series 3 Core Tray is perfect for use in conjunction with HyLogging Technology. The black colour is the optimal choice for backdrop to the HyLogger Spectral Scanners when generating digital images, surface profiles and mineralogical interpretations of drill core samples. Its evenly spaced rows works perfectly in conjunction with the scanning head that's programmed to scan specific widths along the core. NSW Core Library - Hylogger in Action on the Discoverer® Series 3 Core Tray

View
Discoverer® Core Tray O'Ring / Locking Device

The Discoverer® Locking Device provides the stability that is required when moving around valuable pallets of core. These locking links are used on the Discoverer® Series 2 & 3 Core Trays only. Designed to be used for every fourth level in a stack of core trays, they can easily be used on every level for complete peace of mind.

View
Discoverer® Plastic Core Marker Blocks

Discoverer® Core Markers or Core Blocks come in 2 different varieties: Option 1 - Core Blocks The Plastic Core Blocks, are a 'block' as the name implies. These are essentially direct equivalent to the old industry standard wooden core blocks, but made from plastic. Simple as that. They have an etched top surface perfect for writing on with a permanent marker pen. The Discoverer® Tru Identiti™ Plastic Core Blocks are essentially a direct equivalent to the old industry standard wooden core blocks, but made from plastic. They have an etched top surface perfect for writing on with a permanent marker pen, whilst utilising the same smart TruIdentiti™ stencil technology that’s built into the Series 4 Core Trays where the driller can trace the core depth. You no longer have to worry about hard-to-read handwriting downstream, saving time and frustration. The blocks will contribute to the streamlining of workflows in conjunction with the Imago imagery software; Imago will automatically detect the numbers on the core blocks, and assign the data to the correct place within your geological software. Option 2 - Clip-in Core Markers The Plastic Clip-in Core Markers suit every size BQ, NQ, HQ and PQ Discoverer Core Trays. The unique clip-in core marker allows you to maximize the use of your core trays by separating the core quickly and easily. The core markers are colour-coded to identify specific core size and come with an etched flat surface to allow you to record notes permanently.

View
Discoverer® Plastic Lids & Lid Clips

The Plastic Lid suits Discoverer® Series 2, 3 & 4 Core Trays, except for the 4C Plastic Core Trays which are narrower. It's built to protect your core from the elements. It has the same proven longevity out in the field as the trays and will withstand the harshest mine conditions. Note that you only need a lid for the top of a stack, as the rest of the trays will be protected by the tray above it. The lid should be used in conjunction with the Discoverer® Lid Clips. The clips fasten the lid firmly onto the tray. Four clips are needed per lid. Note: When ordering lids and lid clips for Discoverer® Series 3 & 4 Core Trays, you’ll need to order PLACLCN code. These are made to universally fit all Series 3 & 4 Core Tray sizes and NQ for Series 2.

View
Core Tray ID Tags

These aluminum ID Tags are for labelling the content of Discoverer® Core Trays. They are thin enough to be marked by a standard ballpoint pen, which will indelibly 'indent' the aluminum for a permanent record of tray contents. It slots into the specially designed area to reduce the chance of a label being removed or lost. Series 1 & 2 Trays ID Tags are 90x44mm Series 3 & 4 Trays ID Tags are 115x25mm Thickness Options: PLAID02 are 1mm. PLAID03 are 0.2mm. Both come with 3mm holes to enable you to screw or pop-rivet the ID tag onto the tray for extra security and peace of mind.

View
Discoverer® 10 & 20 Compartment RC Chip Trays

The Discoverer® 10 & 20 Compartment Percussion or RC Chip Trays are designed to store and transport your valuable percussion or RC drill chip samples in separate compartments. The trays can be marked with marker or paint pens, and feature a strong hinge and clasp for repeated opening and closing. There are 3 different types of Chip Trays. The original RC Chip Tray is a 20 compartment tray that is 505Lx55Wx33mmH, with each compartment measuring 50Lx25Wx30mmD. Then there are two 10 compartment chip trays. Option 1 is 250mmL, with the 10 individual compartments measuring 50Lx24Wx26mmD. This tray has a feature where you can join one chip tray to the next, creating a 'string' of attached trays. Option 2 is 510mmL, with the 10 individual compartments measuring 50Lx50Wx30mmD, so it's basically the same overall size of the original 20 compartment tray but the compartment size is essentially doubled to give twice the amount of representative sample. Options Below, compared side by side Chip Trays are typically supplied in white or clear, but black chip trays can be manufactured to order.

View
Discoverer® Core Tray Storage Racks – Heavy-Duty & Lasting

A heavy duty, modular core tray storage solution. Designed for storage of both Metal Core Trays used in Geotechnical Drilling and Discoverer Recycled Plastic Core Trays commonly used in Mineral Exploration Drilling. This racking system can be easily customised to suit a wide range of various sized Core Trays. Racking Configurations: Side Load - Side loading racking is recommended for bulk storage facilities. It is designed to allow access both sides of rack and gives you double the amount of storage capacity of End Loading Racking. End Load – End loading racking is designed to be placed along a wall or space restricted areas where you are only able to access one side of the rack. This Modular Core Tray Storage Racking system is built simple for your easy installation, it is made up of 3 components. An End Rack, an Extension Rack and a Brace Set. An End Rack has Angles/Fins on one side of the upright is normally placed at the start or end of the racking system An Extension Rack has Angles/Fins on both side of the uprights and is placed between the start and end uprights The Brace set consists of 2 x Diagonal Braces and 4 x Horizontal Braces and includes associated Nuts and Bolts required for installation of the racking. The space between 2 uprights is commonly referred to as a “Bay”

View
Discoverer® Diamond Core Cutting Blades

Since 1993, Discoverer has continuously produced the highest quality products, and our Diamond Blades are no exception. The new and improved Discoverer 'Sound Dampened' Diamond Core Blades, using innovative technology, are cutting more metres than ever before. KCGM (Kalgoorlie Consolidated Gold Mines) has just recorded 1028.8m core cut out of a Discoverer Sound Dampened Diamond Blade! Traditionally, sound dampened blades cut less than a standard blade by the nature of the product and technology needed to make them sound dampened, but with the Discoverer brand you can expect similar metres. These are made specifically for the mineral core industry. They may be the most expensive unit core blade in the market, but they have been proven time and again as a premium blade that lasts longer and cuts faster, that It's highly likely to be the lowest cost per metre blade. "The Discoverer Green 12" core cutting blade is performing extremely well, cutting 800-1000 metres of core per blade. Compare this to the blades we had been using, an average of 500-600 metres per blade. We also had problems with the blade losing its tension, causing it to buckle and being no good for use. We had a core saw that was cutting the core in a 60/40 split (not 50/50) and had sent the saw back for repairs on three occasions with nothing being found wrong with it, so we have been unable to use this core saw. I tried one of Dynamics green 12" blades on this saw and it has been cutting perfectly ever since, with no deviation (exact 50/50 split down the centre)." - Field Logistics Coordinator, Northern Star Resources The Extreme Hard Black Sound Dampened Blade was introduced to the range in Mid 2022, as an alternative for cutting extremely hard rock sections of the core (silica rich banded ironstone, jasperlite formations, chertz). KCGM mine experienced less 'blade wander' or glaze with this blade. However this is designed like a soft compound car tyre - You will be able to corner really well but you won't get the mileage as the standard blades - it's really for the extremely hard patches of core only, not entire lengths of changing composition core. It's more like a 300 to 400m Arbor (Centre Hole) is 25.4mm on all blades Suitable for any brand of core saw, automatic or manual Available in 12" (300mm) and 14" (350mm) - 12" are used for automatic core saws, while either 12" or 14" can be used on manual core saws. Stocked in our Perth, Kalgoorlie, Mt Isa, Dubbo and Gympie warehouses. As rock properties vary from location to location, please specify rock type on placement of order, and the team will assist in ensuring you get the best blade. Otherwise we've produced this handy guide for you to easily match up the rock type with the blade you may require.

View
Metal Core Trays for Geotechnical or Coal Drill Programs

Dynamics can manufacture metal core trays in all drill core sizes and lengths as required. Whether you have a geotechnical drill program using NMLC(NX) or HQ with a length of 1050mm core tray, or have a coal exploration program that require 4C (100mm) core trays, we can manufacture to suit your needs. Predominately the mineral exploration market is using Discoverer Recycled Plastic Core Trays, but when a custom size is required, metal core trays are the only viable option. If you do have a custom size requirement, please email your exact enquiry to customerservice@dynamicsgex.com.au and we will help.

View
Wooden Core Marker Blocks

Wooden Core Marker Blocks are designed with one flat and one angled surface, so they have the ability to fit into either round- or square-bottomed core trays. They come with a smooth-finished surface that is ideal for writing notes and drill hole information. They can also be supplied with aluminum tags stapled onto them - this will provide the driller with writing or scribbling space to log core details with an indelible mark.

View
Medium-Duty Plastic Pallets – Core Tray Storage

Guaranteed to last for years even when stored out in the field, these Medium Duty Plastic Pallets are perfect for the storage and transportation of core trays. Our customers don't purchase plastic pallets because the initial cost is lower, but because the long-term benefits outweigh the short-term cost: Easy to handle More lightweight than wooden pallets means big savings in shipping costs No nails or splinters Passes all export regulations - ISPM-15 compliant Specifications: Medium Duty Plastic Pallets 1100x1100x120mm - 2-Way Entry 1000kg SWL, 7.5kg/pallet" If you're looking for Heavy Duty Premium Plastic Pallets, you can find them here.

View
Wooden Pallets (Hardwood & Pine) – For Core Tray Storage

We stock and offer a variety of quality wooden pallets for those who prefer wood to transport and store their core trays. Due to the limitations on raw material availability on the West Coast, we typically have these in recycled wood. On the East Coast where raw material is readily available, we can supply new pallets cost effectively.

View
PVC Core Splits for Geotechnical Drill Programs

We manufacture our own splits for supply speed, quality and peace of mind. PVC Core Splits are ideal for transferring core from the drill rig to the core trays, mainly for geotechnical drill programs. Specifications: Standard sizes are HQ, NQ & PQ and they are then cut to 1m lengths. Different lengths and size can be manufactured upon request and subject to minimum production runs.

View
Cylinder Core Foam for Geotechnical Drill Programs

Pack the foam with the core for a tight fit that will ensure better retention of samples. Drillers in geotechnical programs will find the best use for this. Foam is supplied in lengths of 1m and sold in bundles of 25 lengths. Sizes: NQ - 55mm Diameter HQ - 65mm Diameter PQ - 85mm Diameter

View
Industrial Aluminium Foil – Wrap Fragile Core Samples

Heavy-duty Aluminium Foil to wrap brittle and damaged core in, mainly used for coal drill programs.

View
Industrial Cling Wrap

This Industrial Cling Wrap is tough and recommended for wrapping broken core to stop further breakdown and core loss. It comes in a user-friendly dispenser box and with an easy-to use-cutter, so simply pull off the required amount of cling wrap and cut. 600m long.

View
PVC End Caps – Seal Drill Hole Casings Securely

Use these End Caps to seal off PVC Pressure Pipes down drill holes.

View
Concrete & Plastic Drill Hole Plugs – Seal Boreholes Securely

Drill holes can be quickly and easily plugged and sealed with our range of Hole Plugs that come in a variety of sizes. Although the majority of our customers will opt to use plastic, we also supply them in concrete for those that require them. HOLP-RCO One of the most popular products is the HOLP-RCO Discoverer® RC Orange Hole Plugs. These are manufactured from a flexible plastic so they can be pushed down drill holes easily, whilst holding their own when being back-filled. The unique design of horizontal & vertical grip lines make them highly effective at gripping in the hole without dislodging.

View
Layflat Tubing

Our Layflat Tubing is an effective solution to ensure your core samples are preserved from the elements. It will protect your core from moisture loss and anything that could affect their mechanical and physical properties.

View
Fluoro Orange Clay Pigeon

If paint and aerosols become an inconvenience onsite, these pre-colored drill hole markers provide an ideal solution for survey and pattern marking. Made from clay, the product is completely biodegradable, lightweight and quick to deploy.

View
Manual PVC Collar Cutter

The Manual PVC Collar Cutter is a manually operated device for internally cutting PVC bore casings with wall thicknesses that are less than 9mm. It's typically used in the rehabilitation of drilling sites where casings protruding above the ground are to be cut off below ground level before being plugged. Download the full instruction manual here.

View
Honda 4-Stroke Petrol PVC Collar Cutter

The bent shaft petrol PVC collar cutter is a revolutionary way of cutting off the top section of waste PVC piping from your drill hole. It's a great alternative to the old manual collar cutter, as it makes rehabilitation of drill holes much easier and quicker. This Diamond Blade PVC Drill Collar Cutter was designed to aid with the secure plugging of PVC collared drill holes below ground level. Features: Easy to use Fast operation technique Lightweight Powerful 25cc 4-stroke motor How it works: The Drill Collar Cutter Blade is inserted into the PVC-lined drill hole to a depth of approximately 400mm below surface, where the collar is then cut. The excess collar remaining above the cut is then removed. The concrete or plastic conical hole plug is then inserted into the hole to obtain a snug fit against the cut PVC collar, and the hole is then backfilled with low permeability material, which provides an additional plug. The backfilled material is mounded above the drill hole to prevent water ponding in the area of the drill hole.

View
Core Logging Photoboard

The Core Logging Photoboard is perfect when logging and photographing core. Simply write all the critical notes up on the whiteboard, place board beside the relevant core and take your picture. Wipe clean and move on to the next piece of core.

View
Canon Digital Cameras for Core Photography

We aren't a major supplier of camera and accessories, but we can help point you in the right direction. We've been asked many times: "What is the best camera for taking pictures of diamond core samples in core trays?" We've written this article for your reference to make the research a little easier.

View
Kenometer Core Orientation Tool - Alpha & Beta

THE ORIGINAL GEOLOGIST'S TOOL FOR CORE ORIENTATION The most user-friendly device for the measurement of alpha and beta angles in core samples, the Kenometer will save you time in core analysis while still providing you with accurate readings. This Australian-designed geological tool made from anodised aluminum makes drill core orientation measurements fast and precise. The aluminum proves to give strength whilst being lightweight - perfect for field use. The tools measurement markings are laser-etched meaning that even after years of use, the Kenometer will still be easy to read. Kenometer vs. Goniometer: The 4 Advantages of the Kenometer We supply both so you can choose between the two, but here are the reasons the Kenometer is the preferred tool by most geologists: 1. Permanent markings ensuring reliability The laser etching process during manufacture of the Kenometer ensures the markings are permanent, and can never be 'rubbed off'. The goniometer has its markings in ink on plastic, meaning they aren’t likely to remain visible in the field in comparison to the physical etchings on the Kenometer. The laser etching will remain easy to read even after many years of tough field use - this is a tool for life. 2. Tough anodised aluminum body The aluminum body of the Kenometer gives the tool a fantastic strength-to-weight ratio, while the goniometer’s plastic construction is likely to suffer in field drops or in transit. The anodized coating is hard, durable, will never peel, and, under normal conditions, will never wear. The purpose of anodizing is to form a layer of aluminum oxide that will protect the aluminum beneath it. The aluminum oxide layer has much higher corrosion and abrasion resistance than aluminum. 3. Built to fit the core shape The Kenometer is made in NQ2 and HQ sizes, specifically contoured to the core shapes. For this reason, its protractor measurements on the side are more accurate as they are closer to the original curve of the core than in the goniometer. 4. One process, two measurements design The Kenometer was designed to take both alpha (structure) and beta (rotational) measurements simultaneously. Once the core is properly aligned in the tool, the user can take both the alpha and beta angles at the same time. Product Features: Anodised alloy body for brilliant strength & durability in the field Ellipses on the back of the body allow quick measurements of the core structure (alpha angle) Graduations on the head allow for easy reading of rotation angle (beta angle) Laser-etched markings for precise measurements Kits available to convert HQ to HQ3 & NQ2 to NQ or NQ3. Click this to see how these work: Installing Shims Instruction Manual For more info on the differences between the Kenometer and the Goniometer, watch this video.

View
Discoverer® Goniometer Core Orientation Tool (Ezy-Logger)

The Discoverer® Goniometer is a quick reference core orientation tool, designed to simply measure Alpha & Beta angles and lineations within wireline core structures. Its hardwearing and lightweight design makes logging core a breeze when compared to traditional protractors. On the sides of the Goniometer is a protractor in both blue and red, which enable easy identification against the varied rock colours. These are used for measuring the Alpha angles of lineations within the core sample. Aligning the lineation with the maximum angle of the protractor provides the Alpha angle to within 5 degrees. With its compact size, it can be easily shipped around the world. For a fraction of the cost of traditional logging devices, the Goniometer is your ultimate core logging instrument and a 'must-have' tool in any geologist's kit. The Discoverer® Goniometer is the rebrand of the original Ezy-Logger Quick Reference Goniometer.

View
Magnetic Susceptibility and Conductivity Meters - KT-10 & KT-20 Models

NEED IT NOW? WE STOCK KT-10'S FOR IMMEDIATE DISPATCH! KT-10 v2 Magnetic Susceptibility/Conductivity Meter - The Original Tool The KT-10 v2 (click for full specs) is the most popular model of magnetic susceptibility meters in our range. It incorporates a range of new technologies including Bluetooth Wireless Communication to store Magnetic Susceptibility Readings integrated with GPS coordinates, more Accurate Scanning and GeoView Visualization Software. The units allow users to input depth correlation information, receive measurement results in either SI or CGS Units, and feature large internal memories. Additional benefits such as high sensitivity and a data management/visualisation software for the PC are standard in both configurations. The standard KT-10 v2 can also be upgraded to either a KT-10 Plus, KT-10 S/C or KT-10 Plus S/C. In simple terms the 'S/C' means the unit is capable of both Magnetic Susceptibility and Conductivity measurements. The 'Plus' means the unit has extended Susceptibility from 0.001 x 10¯³ - 1999.99 x 10¯³ SI up to 0.001 x 10¯³ - 9999.99 x 10¯³ SI, and gives the user the % Iron Ore Concentration Estimates for Magnetite. Note: As standard, we stock the Circular Reading Face (Coil) but are able to order in the Rectangle Reading Face (Coil) if preferred. Image on the left shows the Rectangle and Circular Reading Faces (coils). KT‐20 Magnetic Susceptibility/Conductivity/IP‐Resistivity Meter - The latest innovation The KT‐20 is a handheld instrument capable of measuring the magnetic susceptibility, conductivity, chargeability, resistivity and density of a sample. Its modular design provides users the ability to employ different sensors of optimal frequencies for either magnetic susceptibility or conductivity measurements. The unit can be supplied with curved sensors in addition to the standard circular and rectangular designs, and they can easily be interchanged allowing the KT‐20 to measure smaller or larger sized samples or cores. The KT‐20 also has an IP/resistivity sensor to measure the chargeability and resistivity of a sample. Additionally, density measurements are available as an option, providing more information about the sample. A picture, audio note, text note and GPS coordinates can be added to the measurements to increase the amount of information one can attach to each record. To see the full KT-20 specifications, click here. Dynamics G-Ex also offers full repair and maintenance on the complete KT-10 & KT-20 range and upgrades to higher models. FAQs about the KT-10 & the KT-20 Q1. How often should I calibrate my Magnetic Susceptibility/Conductivity Meter? A2. All units are factory calibrated before shipping to you. This means that as long as the meter does not suffer from serious physical damage (i.e. the measuring coil gets broken), periodic calibration should not be required. If you are in doubt about your unit's accuracy, you can easily calibrate it for magnetic susceptibility measurements yourself. Option 1 - Purchase a set of magnetic susceptibility calibration pads for ultimate peace of mind. Option 2 - Use a rock with a flat surface and thickness of at least 2 inches, which is homogeneous in its magnetic susceptibility. Draw a circle on the rock to make sure you always take the measurement at the same location, same angle and ideally same temperature (if possible). Q2. What’s the main difference between the KT-10 and KT-20? A2. The KT-10 is a handheld magnetic susceptibility and conductivity meter, which can be used to solely measure magnetic susceptibility or conductivity, or to measure both simultaneously. The KT-10 has a 10 kHz operating frequency and comes with a fixed sensor available in either a circular or rectangular design. The KT-20 is a modular physical property measuring system with interchangeable sensors, which can be used to solely measure magnetic susceptibility or conductivity, to measure both simultaneously, and to measure IP/resistivity and density. A variety of interchangeable sensors are available in different shapes Click here for more FAQs.

View
Barrier Mesh Heavy Duty 1000mm x 50m

This Barrier Mesh comes in a highly visible orange colour and designed to attach easily to steel fence posts with cable ties. It's manufactured from a heavy-duty 120gsm grade PVC and UV stablised for longevity in the Australian Outback.

View
Bunting Flags Orange 30m

Individual flags made from durable reinforced Polyvinyl Chloride (PVC) then double stitched to rope. The white nylon rope cord is UV stabilised with fluoro orange vinyl flags.

View
Acid Dropper Bottles

The quality Dynamics Acid Dropper Bottles provide accurate, repeatable dispensing of various reagents and offer an alternative to pipetting. They have excellent chemical resistance and have been rated suitable for biotech, diagnostic, geological and pharmaceutical applications. Plastic acid dropper bottles feature a screw-on cap and push-on dropper piece.

View
Sponges

The Hydro Sponge is great for wiping down dirty core prior to analysis, and general clean up purposes. Mainly used for Coal Exploration Programs.

View
Steel Star Pickets – Heavy-Duty Survey Stakes

Heavy-duty, black-painted Star Pickets for use when surveying and for site mark-outs. Can also be used when constructing a temporary fence and can be used in conjunction with Bunting Flags and Barrier Mesh. Holes are pre-drilled along the length of the post to allow wires to be attached to the picket. One end is pointed so the steel post can be more easily hammered into the ground, and the other end is flat to suit the hammer. Finish: Painted Black Pack Size: Bundles of 10

View
Star Picket Caps

Highly visible yellow round plastic caps for star pickets. Suitable for roadside safety barriers and rural fencing.

View
Estwing Rock Picks - Pointed & Chisel Edge

The Estwing Rock Picks have been used for years by geologists the world over. The Estwing tools are renown for being strong - they just don't quit. The Rock Picks permit heavy blows with limited swing, and have a bonded and moulded Shock Reduction Grip. Their strength comes from the fact they are a one-piece forged steel tool. Available as Chisel Edge or Pointed Tip and in various sizes - the choice is yours! Our most popular sellers are the 330mm & 419mm Pointed Tip Picks, while the 279mm is very popular amongst the female fieldies and geos as it's lighter in weight. Estwing Rock Pick Comparison

View
Estwing Geo/Paleo Pick Vinyl Grip 4lb

Estwing's all-steel Geo/Paleo Pick has a 25" overall handle length and a 14" overall head length from pointed edge to chisel edge. Has a durable powder-coated finish and a textured vinyl grip for added comfort. Ideal for the geologist when excavating rock and rubble. Specifications: Weight: 4lb (1.8kg) Length: 25" (625mm) Shock reduction handle Chisel and point tip Fully polished Vinyl grip

View
Estwing Crack Hammers

Estwing Crack Hammers have been used for years in the geological industry as it comes in useful for all sorts of jobs. From breaking core sample sticks to fit into the core tray to hammering together a bit of drill pipe, you name it - if it needs belting or breaking, Estwing's our a favorite. They are also regularly used with the Estwing Rock Chisels, and the pair make the perfect combination. They can't be beat for comfort and they just never quit. The Estwing Crack Hammer permits heavy blows with limited swing, and has a bonded and molded Shock Reduction Grip.

View
Pelican Pick – Heavy-Duty Geologist’s Hand Tool

Suitable for a wide range of mining and exploration applications, the Pelican Pick is perfect for picking and scraping loose or soft surfaces.

View
Energizer Batteries

We stock the Energizer brand of batteries as it's one of the world's leading brands. Can be used in all the relevant equipment we supply.

View
Garmin Handheld GPS Units – Navigate Your Field Sites

Dynamics is a distributor for the Garmin range of handheld GPS units. As our customers know, we like to be totally upfront and tell you things as they stand. Please note that any units ordered through us will have an additional 10% on top of the pricing displayed on Garmin's website for our handling and a small margin. To get the best service and advice on Garmin products, we'd recommend you deal directly through Garmin and buy at their pricing as they are set up to do this to the general public. Here are the most popular models we supply to the mining and exploration teams (click for full specifications): Garmin GPSMAP® 65 Garmin GPSMAP® 65s Garmin GPSMAP® 67

View
Insulated Beverage Cooler Jugs

Dynamics stocks two very popular cooler brands: Coleman and Esky. Both coolers are made from durable polyethylene to resist dents, scratches and fading. Whether you are using these for water or electrolyte replenishment (e.g. Gatorade or the like), these two will do the job perfectly. The 19L Coleman beverage cooler is fit for the whole drill crew or exploration team on site, yet still portable enough to move whilst maintaining good volume - the side carry handles make lifting easy. The Coleman-patented, dripless tap means there are no more messy taps. The 5L Esky is perfect as a personal cooler jug and built for those in the field, where keeping hydrated is critical. The "big mouth" makes it easy to fill and the tap makes it easy to pour into the cup provided. This jug has a high quality polyurethane foam which means your drink stays cool for longer.

View
Mesh Field Mapping/Survey Cruising Vest Jacket

Don't sweat it out. These breathable Mesh Field Jackets are perfect for the heat out in the field without compromising quality! Designed to comply with Australian Standards for high-visibility safety apparel, these field mapping vests feature a total of eight pockets for all your handy tools.

View
Canvas Field Mapping/Survey Cruising Vest Jacket

Quality mapping/survey field vests feature a flagging dispensing grommet, lanyard grommets, all-steel snaps, pocket gussets and ten roomy pockets. Pockets include an outside pen/pencil breast pocket and a compass breast pocket.

View
Rite in the Rain All Weather Field Notebooks

We have refined our Rite in the Rain range down to the bestsellers. Although we do have access to the entire range, our core customer base will more than likely want what hundreds of other geos and fieldies have proven to stick to, so we've kept it simple for you. The smaller 'top pocket size" books are 50 sheets (100 pages) with a flexible cover. Both come with the same universal style page pattern, which consists of solid horizontal and dotted vertical lines. Top Spiral Bound RR-135 (76x127mm) Top Spiral Bound RR-146 (105x152mm) The larger options are 120x190mm and hard cover, with a durable sewn-in binding and a different page pattern for each stock code. They all come with 80 sheets (160 pages). Everything about it - the cover, the paper, the sewn-in pages, even the glue - is designed to survive the elements of the mine site or your exploration roamings. RR-390F - 'Journal Pattern' - Solid lines horizontal across the page RR-300F - 'Transit Pattern' - Page 1: Solid horizontal & vertical lines. Page 2: Grid Pattern. RR-540F - 'Geology Pattern' - Page 1: Solid horizontal & vertical lines. Page 2: Grid Pattern with information fields at the top of the page. Note: Sometimes we are asked for Rite in the Rain equivalents in the market. RR-146 is equivalent to Chartwell 2281 and Markrite 110, while RR-300F is equivalent to Chartwell 2637 and Markrite 102. The other Rite in the Rain books in our range don't have a direct equivalent in Chartwell & Markrite. We only sell the Rite in the Range brand as it's considered the market leader in water-resistant and waterproof notepads.

View
Core Orientation Device (Rocket Launcher)

Our core orientation device was developed to allow users to measure all relevant core structures with the core placed in the same situation that it was in the ground. The inbuilt Brunton TruArc 3 Base Plate compass provides a bearing so that you can situate the device with the same heading as the azimuth of the core, while the inbuilt protractor allows the core to be placed on its original incline. KEY FEATURES High-quality non-ferrous brass fittings Hand-built in West Australia from durable marine plywood Inbuilt Brunton TruArc 3 With Adjustable Declination & Bezel Accepts all core diameters from BQ to PQ Can accept half core Housed in a rugged heavy-duty lockable case with foam Want to figure out how to set up and use a Core Orientation Device (Rocket Launcher)? Click to read more

View
Mixed Cotton Rags (15 kg) – Cleaning & Spill Control

A 15kg bag of mixed cotton rags meant for general spills and cleaning up machinery in mine sites and maintenance workshops.

View
Geological Reference Charts - Sand, Rock & Soil

Rock Colour Chart The Munsell Rock Color Chart provides a durable, accurate method for classifying and judging rocks sample. Each book comes with over 115 Munsell Color Standards, each with its correct ISCC-NBS color name and unique Munsell alphanumeric notation. Refer to the colour chart to know the exact color information of your rock samples. This chart indicates the range of rock colors for all purposes and is accurate for wet or dry samples. Although the chart is mainly used to assign values to medium to fine-grained rocks, it can also be used to describe coarse-grained rocks as well. Features: Colour produced on water resistant substrate Munsell notations for each colour providing: Value (degree of lightness) Hue (colour) Chroma (degree of saturation) Soil Colour Chart The Munsell Soil Colour Chart is an affordable way to evaluate the type of soil that is present within a given area. The book is set up to allow users to make soil colour evaluations in the field quickly and easily. The soil classification system that has been developed around the Munsell colour system is an established and accepted process to assign a soil type. This classification system has been used in Australia for more than 55 years to aid in the management and stewardship of natural resources. Through the use of the Munsell Soil Colour Charts, practitioners from a wide range of professions can share reliable and consistent information about the colour of soils at a particular site with colleagues anywhere around the world. The following pages are included in the Soil Colour Charts: Munsell 10R Soil Chart Munsell 10YR Soil Chart Munsell 2.5Y Soil Chart Munsell 2.5YR Soil Chart Munsell 5Y Soil Chart Munsell 5YR Soil Chart Munsell 7.5YR Soil 10Y - 5GY Colours - Olive greens Soil Chart Gley 1 2 (2 - Separate Charts) Soil Charts Munsell 5R Individual Soil Chart Munsell 7.5R Individual Soil Chart "New" White Page, 7.5R, 10YR, 2.5Y The pages within the Munsell Charts are cleanable and can be exposed to the standard environmental conditions that are met in the field. This does not mean that the book will be able to withstand all of the environmental conditions that it is exposed to in the field. For the cleaning of the coloured pages, please make sure not to use a cleaning agent or materials that are coarse in nature. These materials could either damage the surface of the colour chips, or cause the colour chips to start to delaminate from the pages. Sand Grain Chart This chart is essential for all geologists. It allows classification of rock and sand grains based on size and provides a point of reference when working out in the field. It allows the geologist to classify based on a variety of properties, such as size and shape, grain sorting, roundness, and sphericity of a sample. The chart consists of several measurement indicators, including: a sphericity/roundness measuring chart printed examples of well-sorted and poorly-sorted grain samples in fine, medium, and coarse ranges four actual grain samples illustrating angular, sub-angular, sub-rounded, and rounded shapes six grain size samples: silt, very fine sand, fine sand, medium sand, coarse sand, and very coarse sand measurement limits for granules, pebbles, cobbles and boulders (in order of size)

View
Pencil Pivot Magnet – Detect Magnetic Minerals

This geologist's tool is designed in the shape of a pencil with pocket clip, a small magnet at the tip, and a spring wire clip at the center. When the 'pencil' is held by this wire clip, it pivots on the center holder and the magnet at the tip is attracted to magnetic minerals present in a rock specimen that is brought into its proximity. Note: Although this tool is named a 'pencil', it's actually not a pencil nor a writing instrument. The name is solely derived from the shape and look of the tool.

View
Tungsten Magnetic Scriber

The tungsten carbide tip performs flawlessly on even the hardest metals, and therefore works on ceramics and glass as well. Definitely a superior choice for the professional machinist, mechanic or craftsman. Features: Durable tungsten carbide point makes precise marks End cap magnet cleans up stray metal shavings that can damage your work piece or retrieves steel chips from inaccessible locations Convenient pocket clip

View
Corewise Automatic Core Saw – Safe, High-Speed Core Cutting

The new Corewise Automatic Core Saw with Direct Drive - now faster, safer, and more reliable! More torque, thanks to Direct Drive 30% faster cutting speed No loss of power Safer to operate compared to other automatic core saws Reduced back spray from the blade Little to no silica mist with the new, innovative mist guard Quieter than other core saws More efficient and more reliable than other core saws Cheaper to run and maintain with no belts to replace More working hours since there is no downtime for maintenance Other Advantages of the New Corewise Core Saw: The only core saw that won't jam in forward or reverse Control buttons have been fitted away from wet areas LCD screen monitors the motors while operating LCD screen advises correct feed speed for various hardness of core Feed system allows operator to instantly feed core Accepts BQ, NQ, HQ and PQ on the same core guide The only core saw that takes PQ core guide with lids The patented Corewise Automatic Core Saw is the most technologically advanced core cutting machine. It is known to be the safest and most practical choice in the industry for all core cutting applications. Invented by Frank Frisina, the original inventor of the Almonte Core Saw, Frank has continued to develop and advance the core saw under the Corewise brand. In an efficiency and safety driven market, there is no room for accidents, which is why we recommend you keep your core saw operators safe with the right core saw. "I've been using the Corewise Core Saw for over 10 years and I've got nothing but praise for it. Not only is it a very reliable piece of equipment, but it is also extremely safe to use. I've found that I can cut large amounts of core in a relatively short space of time and it is very simple to operate. I would have no problem recommending it to anyone." - Perilya Mining Made with Safety in Mind Designed and built in Australia, the Corewise is a premium galvanised and stainless steel construction, with all internal bolts made of stainless steel to increase machine lifespan. It has aluminum composite sheet panelling, which stops vibration and reduces noise levels, leading to less wear and tear on parts and increased operator comfort. Both in forward and reverse, the Corewise features an anti-jam system ensuring that core never jams, which can cause potential operator hazards. Fitted to the core saw is a proximity sensor which automatically cuts the power when body parts come within the blade area or when the blade housing is lifted. To compliment this feature, the saw is also fitted with dynamic braking, ensuring that the blade stops immediately, which makes the difference between absolutely safety and loss of limbs or fatal accidents. Optional Add-ons: Recirculation Tank Built in conjunction with the Corewise Automatic Core Saw, the 200L water recirculation tank is constructed from powder-coated aluminum with 3 stage setting tanks, 240v submersible pump with float switch, filter mesh basket, lid and hose with fittings. It is recommended for use where water supply is limited. Once installed and tank is filled with water, you plug one end of the hose to the pump and the other end to the connector piece on the blade hood and then start the pump. For optimum life of your blade it is recommended to have constant water supply. The Recirculation Tank meets environmental regulations. Safety in Shipping When shipping and sending to remote or international locations, a crate is built specifically to protect the saw in transit. For export these are heat-treated and fumigated for customs purposes. Technical Specifications: Engine The 3-phase Corewise is driven by a high efficiency 7.5kw (10hp) electric engine that gives it enough power for hard cores and to ensure longer blade life. Power Supply The Corewise can be fitted with various hardware to ensure compatibility with most power supplies overseas. If using the saw remotely, a 20KVA generator will run the 3-phase saw, which comes with a 3m power lead and a 20 amp, 4 pin, 3-phase plug, so you will need to ensure the generator has a socket which will accept this size plug. Spare Parts A full range of spare parts are available ex-stock to minimize downtime and get you up and running as fast as possible. Supply Availability Dynamics G-Ex can ship the Corewise to any location within Australia, or through our export warehouses in Perth and Queensland. We have supplied to a number of countries worldwide, including New Zealand, PNG, Africa and the whole of the Oceania Pacific region. We strive to stock the Corewise for immediate dispatch at all times. Warranty The Corewise is backed by a 12-month warranty that covers the motor, gearbox and components. Blades and chains are not covered. Still not sure if Corewise is right for you? It might, or it might not be. Check out our comparison on the leading brands of Automatic Core Saw here in Australia so you can make your own informed decision. READ HERE Note: These units can sometimes be referred to as Core Cutters or Auto Core Cutters in case you need help in finding the right product when searching!

View
Discoverer® Core Guides / Core Boats for Automatic Core Saws

For use in conjunction with all automatic core saws, Dynamics has created the Discoverer® Core Guides / Core Boats - there's the V-Core Holder for competent core, and the Broken Core Guide for brittle or damaged core. Made to endure the tough, rigorous mining environment One-piece, mild steel, end plate handles - impossible to bend or change shape Heavy-duty hinges to cope with constant opening and closing all day PQ & LTK60/NQ3 core guide sizes are both unique sizes in the market We have committed to manufacturing the Discoverer® Core Guides, also known as Core Boats, as a superior product to anything else out in the market right now. Users say they outlast other similar products by 3-4 times. Invest smart! "We have recently swapped to the Discoverer Core Boats and have had a very positive outcome with the boat lasting a lot longer than the previous ones we had been using. I have now been using the Discoverer Core Boat for just over 4 weeks and it still looks like new, with no damage at all. Previously I was buying new boats every 4 weeks!" - Field Logistics Coordinator, Northern Star Resources The PQ Broken Core Guide, being an 85mm core, has a larger overall width, so this can only be used with a Corewise Auto Core Saw that has a 110mm feed-in channel. The Almonte Core Saw feed-in channel is only 90mm, so it won't accommodate this fully enclosed plastic broken core guide. The LTK60/NQ3 core guide will fit LTK60 (44mm) core and NQ3 (45.1mm) core in the same core carrier due to the sizing being so similar. PQ can also be supplied as Open Top Core Guide, which is used when cutting half core into quarters, so the lids aren’t an obstruction to the cutting blade. For the more competent core, a few mine sites will just use the V-Core Holder, and sometimes it just comes down to personal preference. The V-Core Holder can also be used to cut competent PQ Core on an Almonte Core Saw, but if you are drilling a reasonable amount of PQ then we'd highly recommend trialing the Corewise with our Broken Core Guides for an extra level of safety. Did you know you can trial the Corewise on your site before you commit to purchase! Talk to us for further details: customerservice@dynamicsgex.com.au or 1800 105 584. Discoverer Half Core Guides / Core Boats Half Core Guide - NQ2 - Orange Half Core Guide - HQ - Light Blue These half core guides have all the features that standard core guides have, tough, durable, heavy-duty, but with square lids on top for cutting half cores into quarters. Note: These Broken Core Guides are also referred to as Core Boats, Core Cutting Boats, Core Carriers, Flip Top Core Carrier and Core Holders. Regardless of the name we can provide them to be suitable for both the Almonte and the Corewise Core Saws. Just advise which brand you have upon ordering.

View
Discoverer® Manual Core Saws – Reliable & Affordable

The Discoverer® Manual Core Saw is an Australian-made machine with a long history of durability and reliability across many mine and exploration sites all around the world. When the budget doesn't permit choosing an Automatic Core Saw or the amount of core for cutting is not as extensive, the Manual Diamond Core Saw would be a fine addition to your core shed. Comes in 3 Models: The Series 1 and 2 Core Saw are identical machines apart from the Series 1 having detachable folding legs, perfect when portability is key. We've had clients take the Series 1 when trekking through remote jungle or bush land to reach their drill site. It's not light at 93kg, but the inbuilt handles on the sides of the saw help with the lift and can be achieved by two people. The Series 2 is the same build size as the Series 1 with fixed solid legs, designed as more of a longer term saw for operating at a small exploration program. The Series 3 is the 'beast' of this core saw range, only supplied with fixed solid legs and perfect for mine sites or larger exploration projects where more power is needed and extended periods of core cutting are to take place. Engine Options: Series 1 Core Saw The Series 1 can be supplied with a single phase, 3-phase or petrol engine depending on your requirements. For this machine, the single phase is the most popular and the one we stock in Perth and Queensland for immediate dispatch for those needing a machine yesterday! Series 2 Core Saw The Series 2 is typically supplied with a single phase engine too, and is also stocked in Perth and Queensland. We rarely supply this with a petrol or 3-phase engine, but it is possible and can be subject to a longer lead time depending on current production. Series 3 Core Saw The Series 3 also can be supplied with a single phase, 3-phase or petrol engine depending on your requirements. As this is our largest machine in the range, the 3-phase is the way most people like to go. Being our bestseller from the entire range, we endeavor to always have this in stock in Perth and Queensland. Series 2 vs. Series 3 vs. Operator Comparison Note: Series 1, not shown, is the same overall size as Series 2 on the left, but comes with detachable legs that make it more portable. Core Saw Benefits: Solid frame construction out of 3mm laser cut profile leading to increased stability of the whole machine Cutting deck trolley with heavy-duty aluminum, tilt-lock wheels meaning accurate and stable cut Proper water return channels mean a dry and clean area, improving users comfort Fully protected blade support shaft leading to user safety and bearings protection Spring-loaded cutting head actioned by foot pedal or cutting handle, resulting in better cutting quality leading to shock-free cutting, and good pressure control. Crank controlled cutting depth adjustment and head locking device leading to accurate cutting depth adjustment and straight through cutting Technical Specifications: Engine Options Single phase 2.2kW 240V/10AMP 3-phase 3PH 5HP/4Kw Petrol 5.5Hp Honda or 6Hp Robin Power Supply If working remotely and away from power supply, the recommended generator size for the 2.2kw single phase engine is 10 KVA and for the 4kw 3-phase engine is 20 KVA. Series 1 & 2 Core Saws Dimensions (without stand): 700H x 470W x 980Lmm (Series 1 Only) With Portable Stand (S1) or Fixed Legs (S2): 1530H x 550W x 980Lmm Blade Capacity: 300 - 350mm (12 - 14inch) Max Cutting Depth: 110mm Max Cutting Length: 420mm Tool Speed RPM: 2800 Total Weight: 93Kg Series 3 Core Saw Dimensions 1540H x 570W x 1350Lmm Blade Capacity: 350 - 500mm (14 - 20inch) Max Cutting Depth: 210mm Max Cutting Length: 490mm Tool Speed RPM: 2200 Total Weight: 140Kg Note: The thing about the Discoverer Core Saw is that it isn't an overseas mass produced brick saw, such as the renown brick saw brands like the Clipper Saw. The Discoverer is a purpose-built Diamond Core Cutting Saw, designed for continuous cutting for hours a day. Through proven experience, we reserve the right to refuse to sell you any other manual core saw, as the hours of engine failures and maintenance issues with brick saws have proven to us we'd rather not supply them. Please be aware the sole purpose of us noting this is to take away the headache from prospective geos & fieldies looking for a saw, and not to put in doubt the credibility of brick saw brands - if you were cutting bricks we'd recommend them as fit for purpose every time. We trust this helps with your decision making process.

View
Discoverer® Manual Core Saw Parts

We endeavour to hold key replacement parts for our Manual Core Saws in stock to ensure your project gets back up and running as quickly as possible should you need repairs. Below are the 3 most requested parts: V-Core Holder (VHOLD) Hold your core securely in place and keep your fingers clear of the blade with the OHS-friendly V-Core Holder that simply bolts to the core cutting trolley. Cutting Deck Trolley (SCT1 or SCT3) The Cutting Deck Trolley comes with heavy-duty aluminum, tilt-lock wheels which help to have a more accurate and stable cut, whilst keeping fingers away from close proximate of the blade protecting the user from shear hazards or limb injury. Cutting Trolley Wheels (REPROLA) The heavy-duty aluminum wheels for the Cutting Deck Trolley can also be supplied separately. Note: Every new Manual Core Saw we supply comes with all of these items, but we do offer them as replacement parts as required.

View
PVC Core Cutting Apron

Core cutting can be dirty and wet work, but this 90x120cm long PVC apron would provide great protection. Water-resistant - perfect for splash back spray and dirt when cutting core Gives good abrasion resistance and offers some chemical resistance to the core saw operator The main reason these are so popular is they're lightweight but tough and durable. If you're sick of washing your workwear these could be your answer, whilst saving your cleaning bills!

View
Triplet Hand Lens (10× Geologist’s Magnifier)

Bausch & Lomb is renown in hand lens manufacturing. The Triplet Hand Lens incorporate three separate lenses, bonded together to form a compound lens to provide one sharp, very distinct magnified image without distortion; even under 14 and 20 power magnification. The only thing to be aware of is the size of the lens. Against the generic brands, the B&L lenses are smaller. For example, 10x = 16mm, 14x = 12.5mm and 20x = 8mm - this is the lens aperture, not the diameter of the entire unit. Although it comes down to personal preference, we've had customers who didn't realise that the lens sizes were smaller until they acquire them, so we like to advise this in advance. The generic brands we carry are also of great quality - very popular due to their larger lens aperture and cost effectiveness. Our HLECO-10 & HLECO-20 are the most popular models, but do refer to the table below for the whole range and the lens aperture of each. All hand lenses come with a free lanyard! Note: The hand lens are sometimes referred to as "Jewelers Loupes".

View
Krant Geological Structural 360

This especially developed geologist's compass meets all your demands at a favourable price! Essentially it's been built as a copy of the Freiberg Compass when your budget doesn't stretch to a compass of that quality. Like the Freiberger, it facilitates the reading of dip and strike in one operation by a vertical circle at the lid hinge. Technical Specifications: Pendular clinometer (90°- 0°- 90°) for dip measurement The initial oscillation of the needle can be accelerated by arresting Circular level, mirror, front and rear sight 0°-360°, scale value 1° (adjustable circle graduation and needle), vertical circle graduation 5°, engraved exterior scale Housing: Aluminum Size: 80 x 65 x 20 mm Weight: ca. 235 g (leather pouch included) Applications: Can be used for route surveying, for the survey of natural and artificial openings above and below ground Surveying of open pit or underground workings Transfer of geological data onto maps and plans Staking out of claims and sites General field-geological work Special structural-geological, deposit-tectonic, and engineering-geological rock mechanical work Rock work as well as moderate-accuracy surveying

View
Brunton Transit International Waterproof Compasses - 5008, 5010 & 5012

The Brunton Pocket Transit was first patented in 1894 by David Brunton (a geologist) and continues to be an industry leading compass and measuring tool used by geologists, foresters, surveyors and archaeologists. We supply the 3 main compasses that Brunton manufacture: The Geo Pocket Transit, The Com-Pro, and the newest addition to the range (and potentially revolutionary) Axis Transit. Let's start with the two traditional compasses. Brunton 5010 Geo Pocket Transit International Waterproof Compass (Azimuth 0-360) The Geo Pocket Transit Compass, incorporates feedback from professionals to make this the ultimate compass. The solid aluminum, waterproof Geo Transit contains a fast, magnetic north-seeking, rare-earth magnet, balanced on a sapphire jewel bearing for quick measurements. The most noticeable feature is the hinge inclinometer, accurate to +/- 2°. This feature allows simultaneous dip and dip direction measurements, reducing the number of measurements required in the field. An innovative needle design can be locked or unlocked. Brunton 5008 Com-Pro International Pocket Transit Compass (Azimuth 0-360) With a body made of composite materials, the Com-Pro is a lighter, more affordable alternative to 5010. Like the 5010, it incorporates a cast NdFeB rare-earth magnet, precisely balanced on a sapphire bearing - resulting in a powerful magnet, which quickly seeks magnetic north and permits fast readings. Identical Features between the 5008 and the 5010: Single NdFeB magnet resists demagnetization better than any other type of magnet Vertical angle measurements to +/- 90° or 100% grade Percent grade scale with increments of 5% Induction dampened needle for quick, accurate readings Sapphire jewel bearing allows for smooth needle movement Magnetic declination adjustment allows for east or west declination settings to +/- 180° Precision aligned mirror with convenient see-through sighting capability Short and long sights for increased accuracy when sighting azimuth or vertical angles O-rings make it waterproof for increased reliability Leather case included Unique 5010 Features: Azimuth accuracy +/- 1/2° with 1° graduations Vertical angle accuracy +/- 1/2° with 1° graduations and 10 minute vernier Aluminum billet body assembly makes the GEO nearly indestructible Adjustable needle locking mechanism Hinge clinometer with 1° increments for 1/2° readable dip measurements Two long-level bubbles on the outside of the aluminum housing for no guess leveling from the sides or the bottom Overall dimensions: 96x71x33mm Weight: 362g Unique 5008 Features: Composite body material has less thermal retention Overall dimensions: 81x71x33mm Weight: 161g Now for the newest Brunton compass on the market. Brunton 5012 Axis Pocket Transit Compass (Azimuth 0-360) The Axis was invented by geologists for geologists and features a significant new twist on the pocket transit - The main hinge rotates 360 degrees, making the Axis the only transit that can measure strike and dip, and trend and plunge, simultaneously - on any surface. that is designed especially for easier geological measurements with every angle and every direction. 5012 Features: Innovative dual-axis hollow hinge allows for intuitive, efficient and accurate measurements of planes, lines, bearings and vertical angles. Only one measurement configuration is needed for strike & dip, trend & plunge, bearing & vertical angle, increasing efficiency and accuracy. Compass North is parallel to the main hinge axis, making the Axis the only transit able to measure strike and dip concurrently, through contact or sighting methods, Novel lid protractor and rotation around minor axis enable accurate, simultaneous measurement of trend & plunge and any surface, including overhangs. Inclinometer Accuracy: ± ½ with 1° graduations Dip Angle Accuracy: ± ½ with 2° graduations Dimensions (closed): 100mmx 71mm x 30mm Weight: 354g This compass gets pre-balanced to the different zones around the world. To make it easy, here's a link to the Zones List. Generally we stock at all times the Axis balanced for Australia (095), but can easily supply any zone compass you need. We also have the instruction manual available for download here. Here's the Comparison Chart of the Brunton Transit Compasses:

View
Freiberg Geological Compasses – Classic Breithaupt Design

There's only two versions of the Freiberg and they're essentially the same, save that one has a mirror and one doesn't, with the mirror version being the preferred Freiberg by geos. The 'Freiberger' is the original structural geology compass and was built according to the specifications of a famous geologist known as Dr. Eberhard Clar. Freiberger is the company that took the contract to make the first ever geologist's compass and they’ve been making them the same way in Germany ever since. This compass design allows a geologist to take a reading of direction and azimuth of dip at the same time. Features: Permanent locking of the magnetic system - can be released during measurement by depressing the push-button and should be used for shortening the setting time Lockable inclinometer for inclination measurements of high accuracy Operates -30oC - +50oC Ground magnetic needle placed on edge Easy adjustment of the graduated circle - for each measuring technique and for setting declination values of any magnitude Colour coding on circle of altitude and magnetic needle (according to Clar) - unambiguous determination of the direction of dip of geological formations Circular spirit level for leveling, lateral glass tube for measurement at points of difficult access Dip measuring plate Horizontal level bubble for measuring where access is difficult Circular level bubble for simple leveling Dust and water resistant Applications: Can be used for route surveying, for the survey of natural and artificial openings above and below ground Surveying of open pit or underground workings Transfer of geological data onto maps and plans Staking out of claims and sites General field-geological work Special structural-geological, deposit-tectonic, and engineering-geological rock mechanical work Rock work as well as moderate-accuracy surveying Chemical Composition: Si: 0.7-1.3 Fe: 0.50 Cu: 0.10 Mn: 0.40-1.0 Mg: 0.6-1.2 Cr: 0.25 Ni: 0 Zn: 0 Ubrige: 0.15 Ti: 0.10 Al: Balance For other structural geology compasses, you may want to check out the following options: The Krant The Breithaupt Gekom Basic The Brunton 5010 Geo Pocket Transit

View
Breithaupt Gekom Pro Stratum Compass

Stratum measurements can be taken according to the method of Professor Dr. Clar - two-circle compass, azimuth of dip and angle of dip of plains or linear features can be determined in one single operation. Specifications: Vertical circle (dip measuring) with 5° graduation, reading by estimation 1°, visible from above, the azimuth of dip and angle of dip can be read at a glance Dip measuring range 270° Automatic arresting compass needle when needle is not in use Azimuth circle with 2° graduation, 1° by estimation Inclination adjustable Declination adjustment ±60° Circular spirit level Waterproof high-quality one-piece housing made of light metal Case included Dimensions (closed): 72mmx90mmx21,5mm(WxLxH) Weight: 270g Made in Germany

View
Breithaupt Cocla Stratum Compass

Breithaupt has been manufacturing magnetic compasses in Germany since 1762, and the Cocla is their top of the range stratum compass. Designed in close cooperation with Professor Dr. Clar for geological, geophysical, mining, tectonic and rock mechanical applications, the Cocla allows for azimuth and angle of dip measurements to be taken in one single operation. The large circular opening in the compass housing contains the graduated circle, the magnetic needle with circular magnet, and the copper dampening pot. At its base the housing is closed by a bottom plate of transparent, unbreakable plastic. This design allows for measurements to be taken and read from above the head. Specifications: Compass circle diameter: 50mm Graduation interval: 1º Accuracy: <0,1º Numbering continuous from: 10º to 10º Declination adjustment: ±30º Vertical circle diameter: 25mm Graduation interval: 5º Estimation to: 1º Graduation range quadrantal: 235º Numbering from: 20º to 20º Circular level: 30'/2mm Tracing edge: 60mm Dimensions (closed compass): 74x96x25mm Weight: 275g

View
Suunto Baseplate & Orienteering Compass Range

The Suunto range of baseplate orienteering compasses are very popular and a great tool for any expert level geologist or fieldie. The two types we supply are the top sellers - the MC-2 and the M-3. Let's look at both types below. Suunto MC-2 (COMP-122) The Suunto MC-2 mirror compass has many features that make it outstanding in its class. A standard feature is the gear-operated declination adjustment system which makes this compass excellent, such as in areas with large magnetic variations. Another standard feature is the pendulum clinometer that can be used for the measurement of different slopes, slope of terrain, height measurement, among others. The luminous bezel is available with azimuth (0-360) graduations with two-degree intervals. Parallax error can be eliminated by means of the clever arrangement of luminous points and color lines. This compass is designed for use in all compass zones. The MC-2 is a professional mirror compass for taking bearings and normal direction with adjustable declination correction scale. Specifications: Global needle for worldwide use Declination Adjustment 0-360 Compass Scale Large sighting mirror - doubles as signaling mirror Additional sighting hole for superior accuracy Ergonomic, luminous bezel ring Baseplate with magnifying lens Numerous map scales printed on baseplate Rubber feet on baseplate for ease of use with maps Detachable lanyard with snap lock Size: 65mm x 101mm x 18mm Weight: 74g Suunto M3 (COMP-M3) The adventure compass. A reliable compass for navigating and surviving in extreme conditions. This hardy baseplate compass is ready for the challenge. Specifications: Fast globally balanced needle with jewel bearing 20 degrees tilt margin for easier readings Adjustable declination correction Liquid filled capsule for stable operation Clinometer Luminescent markings for working in low light Metric and Imperial UTM scales Baseplate with magnifying lens Detachable snap-lock lanyard with wristlock - easy to detach for working with the map Suunto limited lifetime warranty Made in Finland Size: 120 x 61 x 14 mm Weight: 48g Level Bubble (COMP-BUB) We can also supply and glue a Compass Level Bubble for MC-2 or M3 as a retrofit part.

View
Suunto Optical Compass & Clinometer – Professional Range

When a well-known brand meets a very affordable price tag, you get our top selling compass & clinometer range. Meet the Suunto. The Suunto Precision Range can be classified into 2 different types of products: 1) Suunto Optical Sighting Compasses 2) Suunto Clinometers Optical Sighting Compass Range Suunto KB-20/360R G Yellow Compass Suunto KB-20 is a floating, lightweight hand-bearing compass that is ideal for marine, professional and outdoor use. This is the beginner compass in Suunto's range. If you want something a little more higher end, the KB-14, below, is your next choice. Suunto KB-14/360/R International Hand-Held Compass, 0 - 360 with reverse scale (COMP-119) The Suunto KB-14 hand-held precision compasses are used all over the world by foresters, surveyors, engineers, cartographers, geologists, miners and architects to measure bearings quickly, reliably and easily. The KB-14 is our most popular model. The heavy-duty impact and corrosion resistant aluminum housings are flat and compact with no protruding or adjustable parts. Needle cards are immersed in a clear, low-viscosity liquid damping for smooth, vibration-free movement. Needle cards pivot on polished sapphire bearing. Azimuth models graduated to 1/2 degree. Suunto Tandem 360PC/360R International Hand-Held Compass/Clinometer (COMP-120) The Suunto Tandem combines a liquid damped precision compass and clinometer in one compact, rugged aluminum housing that protects against impact, corrosion, and water. Clinometer scale is graduated in percent and degree (0-90°, 0-150%); compass scale is in azimuth (0-360°). The compass is graduated in 1/2° increments, and the clinometer is graduated in 1°/1% increments. Both the compass and clinometer are individually calibrated. There are engraved inch scale, cotangent and cosine tables to 45° on the back. Also included is a threaded tripod socket. Includes carrying case and lanyard. Balanced for use worldwide. Dimensions: 126 x 76 x 15mm. Weight: 177 g Clinometer Suunto PM5/360 PC Hand-Held Clinometer (COMP-118) The Suunto PM-5 hand-held clinometers are used to measure heights, vertical angles and slopes quickly, reliably and easily. Geologists mainly use the clinometers to measure slopes for grading or preliminary surveying. Features a solid aluminum housing with jeweled bearing assembly. Damped scale for smooth, accurate readings. Parallax-free lens. Includes a lanyard and black nylon case. PM5/360 PC Scales: ±150%, ±90°. Conversion Table Cosines to 45° on back. Dimensions: 70mm x 51mm x 16mm. Weight: 113g Rubber Protective Cases All the Suunto instruments can be supplied with an optional Rubber Protective Case to prolong their lifetime in the field. Just like your mobile phone case, it's well worth the investment. Choose the COMP-119C for the KB-14 Compass and PM-5 Clinometer and the COMP-120C for the Suunto Tandem Unit.

View
Adam Bench Scale

The Adam range of scales and balances has everything needed for any exploration or mine site application - from general scales with readability of 0.1g to the high precision scales with a readability down to 0.0001g. The Cruiser Range of CKT Bench Scales offer reliable performance and durable construction suitable for the rough and tumble environment of exploration sites and core sheds. Featuring bright backlight displays and an internal rechargeable battery for operation in outdoor applications, the CKT bench scale range are dependable partners for your critical measurements. Key features: Backlit display changes colour for quick notification of check weighing limits Colour-coded keys facilitate quick recognition of the most frequently used buttons Large, grade 304 stainless steel pan allows easy cleaning Sealed keypad protects against dirt and spills Solid ABS housing is durable for industrial use Adjustable levelling feet help optimise setup Drip channels help divert spills away from the scales internal components Rechargeable battery included for operation almost anywhere External calibration allows for verification and adjustment with weights Optional hook enables below-balance weighing Quality-Guaranteed Scales & Balances Our industry-leading warranties mean your weighing scale or balance provides peace of mind with a warranty of up to five years. We also have the whole range of weight capacity scales from the 10 Tonne Hanging Scales down to the 80gram Analytical Balances. The pans or platform size varies too, so whether you're seeking to weigh a large sample or a small sample in the lab, the range will cater for your requirements. Contact our customer service team. customerservice@dynamicsgex.com.au

View
Artline Permanent Marker Pens

Most people have heard of the renown Artline brand of permanent markers, whether it be the Artline 70, Artline 90 or the Artline 17 and Artline 19's. They are a great brand and a very popular part of our range. Artline 70 & 90 (Bullet & Chisel Tip respectively) are xylene-free, quick drying and general purpose permanent markers. Available in black, blue & red Ink. Artline 17 & 19 (Bullet & Chisel Tip respectively) have a higher grade of ink for use in more 'industrial' situations and the inclusion of xylene content in the pen means they are able to be used on greasy surfaces. These are all permanent markers and only available in black ink. Note: Depending on where you live in Australia, you might refer to these thick permanent marker pens as a Nikko, Sharpie or Texta. Whatever you call them, this is what you're chasing!

View
Artline Paint Marker Pens

Paint markers give you a liquid permanent mark suitable for marking on wood, plastics, metals, rubber, concrete, stone, glass, ceramics and cardboard - pretty much anything apart from damp wood. Artline Paint Pens have been the renowned industry leading brand for years offering high performance with a xylene-free, fast dry formula.

View
Flagging Tape (25 mm & 50 mm) – Survey Marking Rolls

Dynamics G-Ex's Flagging Tape is suitable for mining, construction, surveying, and numerous other applications. The main use for this within the mining and exploration is for marking out 'dig-blocks' in the open pit, and general site surveillance by the mine or exploration geologists & surveyors. The tape is hand-tearable and available in bright, UV stabilised colours. A lot of fieldies, surveyors and geologists will even tie flagging tape around timber survey stakes in the field to provide them superior visibility, with fluoro colours permitting easy sighting even at a great distance. The standard flagging tape is 25mm wide, but some Geo's & Surveyors really like to use the double width 50mm for extra visibility, particularly when around large heavy machinery operators, as the extra width gives the required visibility right up in that machine cab!

View
Tape Measures

This Trade Tape Measure has a dura-grip moulded rubber case, and a 25mm wide metric scale blade constructed from a premium nylon coated steel. The tape also features an easy access sliding thumb lock and a quick release button for speedy measurements. It's supplied in 2 lengths, 8m and 10m. Our most popular tape measure is without doubt the 8m length, so we currently have a clearance sale on the 10m discontinued model if you're chasing a large tape for less!

View
Open Reel Fibreglass Tapes

This professional, manual, open reel tape measure is made with durable fibreglass properties, for use out in the field. It comes in 3 lengths: 30m, 50m and 100m, all 13mm wide.

View
Chinagraph Lumocolour Staedtler Pencils

The Staedtler Lumocolour Permanent Glasochrom Pencils feature the same lead as the older Chinagraph pencils and are used for marking most surfaces - glass, stone, plastic, metal, wood and textile. Features: Ideal pencil for marking up core samples For opaque marking even on dark and transparent surfaces No bleeding through paper Colour-intensive and lightfast Non-corrosive colour pigments No drying up Odourless Box of 12"

View
Chalk Assorted & White

Can be used for non-permanent marking on core, or various other uses in the exploration and geological field. The bulk of the customers using chalk on their core will be our clients on coal drilling programs, but these can be used in any drill program from gold to iron ore. These are supplied as a box of assorted colours or a box of all white.

View
Plastic Pin Marker Tags

The Plastic Pin Marker Tags make use of the most durable materials available to create a superior product that can withstand continued use in a range of harsh environments. They're made from UV stabilised polypropylene which is proven for its durability under prolonged exposure to sunlight and its flexibility. The high tensile wire has likewise been selected for its bounce-back flex and has been galvanised for protection against rust and corrosion. Ideal for use in the survey, mining, exploration industry, and any other industry where marking vital locations is important. Specifications: Tag Dimensions: 120mm x 35mm Tag Specifications: UV stabilised polypropylene Wire Length: 500mm Wire Specifications: Galvanised, high tensile steel wire Manufacturer: Made in Australia by Dynamics G-Ex Pack Size: 500 Pin Marker Tags in a box Standard Colours: Yellow, Green, Orange, Pink, Blue, White, Red

View
Hardwood Survey Stakes (Survey Pegs) – Pointed Timber Markers

Hardwood Survey Stakes are such a large and popular part of our range, that in 2016 we actually formed a partnership with our own mill so we could source the most durable, hardwood stakes, known for their longevity and ease of use. Hardwood Stakes are less susceptible to white ants and are much stronger when being driven into the ground. Dynamics only sources raw material from mills known for their quality control, and by partnering directly with the mill we are able to offer some of the best pricing and stocks in Australia cutting out the middle man. For bulk quantities or shipping to a remote site, please contact us. We supply by the pallet load and ship to remote sites regularly. All stakes have square cut pointed ends with the benefit being that the shape of the point naturally drives into the ground a lot easier, particularly required with the hard ground in Open Cut Mines. With OH&S being so important on all exploration and mine sites we exert extra effort to ensure the stakes have a smooth finish to reduce or eliminate the risk of splinters and injuries to hands. Gloves are still always recommended as precaution. All stakes are bundled and sold in packs for easy transportation and manual handling. The stakes can be supplied as a plain stake or with a painted white top (nominally 300mm), which stands out and is visible as a survey marker when viewed at a distance, or for the mining machinery operators. The white paint also provides an excellent clear writing surface for any notes required. We stock a range of popular sizes, from the 1500mm right down to what is known in the industry as the 'dumpy peg', the 200x25x25mm or 300x25x25mm size stakes. Our top sellers however remain to be the 900x25x25mm and the 1200x25x25mm with painted white tops. Note: Hardwood Timber Survey Stakes are sometimes referred to as Tomato Stakes, Wooden Pegs, Dumpies, Dumpy Pegs, Timber Garden Stakes.

View
Triangle Scale Rulers 30cm

Our 30cm rulers are made from lightweight plastic, and don't have the sharp edges of their steel counterparts. Used by geologists, miners, surveyors architects, these premium rulers are triangular and allows up to 6 different scales to be viewed on each ruler. The ruler has been designed with grooves along the central line to allow easy holding whether you're in the office or out in the field. The model used by most geologists is the TRIR-04 Scale Rulers.

View
First Aid Kits

The first aid kit is an absolute necessity for any mine site or exploration project. We have two kits that cover most of the emergencies that you'll have to deal with. Outback Kit (AIDOUT) The Outback Kit is a lightweight Paramedics Bag with the fluoro stripe across the front. It has a number of compartments and contains all the items required to deal with an outback injury. Outback Kit Contents List Burnaid Gel 25g, CPR Wallet Card, Combine Pad 10x20cm, Conforming Gauze Bandage 5cm, Conforming Gauze Bandage 7.5cm, Crepe Bandage 7.5cm, Crepe Bandage 10cm, Basic Dressing Pack, Thermo Accident Blanket, 4 x Sterile Eye Pads, Dressing Strip 7.5cm x 1m, 2 x Adhesive Plastic Strips Box 50, First Aid Booklet, Splinter Forceps 12.5cm, 4 x Gauze Swabs 7.5 x 7.5cm Pack of 5, 2 Pairs of Latex Gloves, Disposable Kidney Dish, 2 x Non Adherent Dressings 7.5 x 5 cm, 2 x Non Adherent Dressings 7.5 x 10cm, Clip Seal Bag 230x305mm, Antiseptic Spray 50ml, Resus O Mask, Safety Pins Pack of 12, Blunt/Sharp Scissors 12.5cm, 4 x Normal Saline Eye Wash, 15ml, 2 x Disposible Splinter Probes Pack of 5, Hypoallergenic Tape 2.5cm, Glass Thermometer, 3 x Disposable Triangular Bandages, Wound Dressings #13, 2 x Wound Dressings #14, 2 x Wound Dressings #15, 6 x Antiseptic Wipes and 2 x Instant Ice Packs. Snake Bite Kit (AIDSNK) The Snake Bite Kit has been designed for the management of an Australian snake bite. Most importantly, this kit includes detailed written instructions in first aid for an Australian snake bite. These first aid instructions were written by the Wilderness Medicine Institute of NOLS Australia. Snake Bite Contents List 1 Instant Cold Compress, 1 Triangular Bandage, 2 Crepe Bandage, 1 Pair of Powder-free Gloves We also have the Hikers Pouch Kit and the Aquanaut Kit that are discontinued lines, so grab a bargain while stocks last! Aquanaut Kit (AIDAQU) The Aquanaut is a fully waterproof first aid kit that comes with a fully detachable bracket. It contains items that can deal with any workplace or marine situation. Aquanaut Contents 1 Burnaid Gel 25g, 1 CPR Wallet Card 1 Combine Pad 10x20cm 1 Comforting Gauze Bandage 5cm 1 Comforting Gauze Bandage 7.5cm 1 Crepe Bandage 7.5cm 1 Crepe Bandage 10cm 1 Basic Dressing Pack 1 Thermo Accident Blanket 4 Sterile Eye Pads 1 Dressing Strip 7.5cm x 1m 2 Adhesive Plastic Strips Box 50 1 First Aid Leaflet 1 Splinter Forceps 12.5cm 4 Gauze Swabs 7.5×7.5cm Pkt 5 2 Pairs Latex Gloves 1 Disposable Kidney Dish 2 Non-Adherent Dressings 7.5x5cm 2 Non-Adherent Dressings 7.5x10cm 1 Clip Seal Bag 230x305mm 1 Antiseptic Spray 50ml 1 Resus O Mask 1 Safety Pins Assorted Pkt 12 1 Blunt/Sharp Scissors 12.5cm 4 Normal Saline Eyewash 15ml 2 Disp. Splinter Probes Pkt 5 1 Hypoallergenic Tape 2.5cm 3 Disposable Triangular Bandages 1 Wound Dressing #13 2 Wound Dressing #14 2 Wound Dressing #15 6 Antiseptic Wipes 2 Instant Ice Packs

View
Quagmire Canvas Hiking Gaiters

Gaiters made for remote area hiking and field trips into the jungle or outback. Made from cool comfortable 8oz corespun canvas. Ideal for scrub bashing, leg scratching, shin destroying tracks. The stiffness of the canvas upper section lets the gaiter stand up allowing the top to be kept open for ventilation and comfort. Heavy-duty laminated instep scuff pad for improved durability and wear.

View
Ear Protection

MaxiPlug Earplugs We stock the renown MaxiPlug Earplugs, both in the corded and uncorded styles. The ergonomically shaped MaxiPlug disposable earplugs are characterised by very high sound absorption levels, making it suitable for use in very loud environments. The MaxiPlug foam earplug has a sealed surface, preventing foreign bodies from penetrating the plug. The soft foam offers real comfort, even when worn for extended periods. Features: Class 5 protection with SLC80 rating of 27dB Tapered design for easy fit Soft polyurethane for maximum comfort Pairs packaged in individual bags 100 pairs per dispenser AS/NZS 1270:2002 compliant MaxiMuff Earmuff Specifications (EARMUFF) Class 5, 28dB according to AS/NZS 1270 Shock resistant and durable construction Slide and swivel cup enhances comfort and fit Soft foam ear cushions for comfort and secure fit Can be worn behind the head for use with hard hats AS/NZS 1270:1999 compliant

View
Respiratory Protection - P1 & P2 with Valve Dust Masks

**Product Update - P2 Respirator with Valve (RESP2V) are currently in stock only** We sell the two most popular disposable respirators - the P1 and P2 with Valve. P1 Respirator (RESP1) P1 Unique Pre-moulded respirator fits a wide variety of face profiles Pre-formed nose-bridge minimizes the risk of leaks Twin straps offer firm comfortable fit Suitable for medical, grinding, sanding and dusty environments Metal free mask - suitable for food industry Certified to AS/NZS 1716 Box of 20 Masks P2 Respirator with Valve (RESP2V) P2 Unique Pre-moulded respirator fits a wide variety of face profiles Exhalation valve provides increased air flow and comfort P2 rating offers protection against mechanically and thermally generated particles Pre-formed nose-bridge minimizes the risk of leaks Twin straps offer firm comfortable fit Suitable for medical, soldering, welding, grinding, sanding and dusty Certified to AS/NZS 1716 Box of 10 Masks

View
Leather Rigger Gloves

The Leather Rigger Gloves are all-purpose gloves that are recommended for mining and exploration applications. They are made from genuine split back cowgrain leather, which means they can stand up to the harshest treatments in the mining and exploration site but are still comfortable enough to be used as everyday work gloves. Features: Wing thumb for stitch free palm Double stitched for strength Elastic back Colour-coded cuff for size identification Manufactured to EN420 standard for accurate sizing

View
Latex Stretch Nylon Knit Gloves

The Red Knight Gripmaster Nylon Gloves with Latex Palm Coating Technology Grip are puncture resistant, making them perfect for activities that require protection against abrasion and touching sharp objects. They are lightweight and flexible so they don't hinder your ability to use your fingers for delicate jobs or picking up small objects. The lycra properties mean they are stretchy and have a nice comfortable fit, while the 13 gauge seamless nylon/lycra provides good dexterity and breathability. Recommended for use in the core shed or out in the drill rig for general purpose lifting.

View
Sunscreen SPF50+ Lotion 1L

The Maxisafe range of sunscreen products is made in Australia for the harsh Australian outback. This is a premium sunscreen that maintains a high SPF50+ for up to 4 hours of water immersion. With Vitamin E for increased skin care, the lotion can be used all over the body including the face.

View
RID Insect Repellent Aerosol – Tropical Strength

RID Medicated Insect Repellent Tropical Strength provides protection against mosquitoes that may carry malaria, Ross River virus and dengue for up to 6 hours. Especially formulated to repel insects in the toughest conditions. Warning: For external use only. If rash or irritation occurs, discontinue use. If swallowed, seek medical advice. Do not spray near food and food utensils. Avoid contact with spectacle frames, soft plastics, or synthetic fabrics. DEET Warning: May be dangerous, particularly to children, if used in large amounts on the skin, clothes or bedding, or on large areas of the body, especially if you keep using it for a long time. Not to be used for any purpose or in any manner, contrary to this label. Directions: Hold can upright and spray all exposed skin in a sweeping motion from a distance of 15-20cm. Do not spray towards eyes or mouth. To apply to face, spray on hands and rub on. Do not apply to eyes, mouth or babies' hands.

View
Laboratory Test Sieves (Stainless Steel), Certified & Precise

We supply a whole range of Stainless Steel Laboratory Test Sieves certified for use for high-precision, accurate sampling. These test sieves are manufactured to internationally recognised quality assurance standards. They are individually checked throughout manufacture either by optical projection or highly sophisticated computer scanning techniques and comply with ISO 3310. Each sieve is issued with a unique serial number and a certificate of compliance for full product traceability. Our manufacturers specialise in sieves of stainless steel frame and mesh construction that are inherently more robust, durable and corrosion-resistant than traditional brass sieves. Features: Sturdy rim - strong and easy to handle Exact frame - rugged and uniform with positive nesting Fillet - no sample is trapped between the mesh and the frame Ergonomically designed - no raw edges and comfortable to handle. Evenly tensioned mesh - precise and accurate results No cavities - totally sealed frame with no crevices to trap sample Precision mesh - high-tech optical equipment accurately measures apertures Fully traceable - individually numbered serial number High-quality stainless steel frame - minimal corrosion and long-lasting We have three manufacturers we distribute for, but due to their standards being the same, they will inter-stack and be almost identical. Our most common diameters of test sieves are the 200mm and 300mm. Please email customerservice@dynamicsgex.com.au for further enquiries.

View
Aluminum Field Sieves 330mm

These sieves are good quality 'field' sieves manufactured here in Australia. As the name suggests, the sieves are used mainly out in the field, constructed from an aluminum frame and galvanised steel mesh that come in 5 different sizes. Only the 0.4mm mesh is made of stainless steel due to the size of the mesh, therefore making this particular sieve more expensive. The sieves nest together into a stack for the grading of material samples. Sieves are generally used in conjunction with the aluminum scoops and aluminum receiver for sample retrieval and storage. Note: These are not the certified stainless steel test sieves like you see used in laboratories. These field sieves are used for general purpose sieving applications where the particle size of the sieved material is not critical. Size Specifications: Diameter: 330mm (13inch) Mesh Sizes: 0.4mm (40 Mesh), 0.9mm (20 Mesh), 2.8mm (7 Mesh), 5.0mm, 7.1mm These aluminum sieves can also be supplied with a separate aluminum receiving pan and lid.

View
Flexistack Sieve Set 200mm

The Flexistack Sieve provides an entirely new system of flexible screening, with excellent benefits for sizing and sampling. Multiple screening of a sample can be achieved in one operation, and multiple samples can be handled simultaneously. Drum-tight screens promote efficient screening, and meet the highest screening standards and cut screening costs. If the screen cloth is damaged, it is replaceable quickly and easily. The Flexistack rings hold two different size meshes of your choice. Nylon sieve mesh is cut to size and put between each component (not including the lid), and these are then pushed together. Although the sieves are sold as sets (containing a lid, two middle rings and a receiver), it is possible to add as many middle rings as you require to hold the number of sieve meshes you need. Using the Flexistack Sieve is more cost-effective than purchasing a new sieve for every mesh size you require. With Flexistack, you simply replace the mesh! These sieves would normally be used with nylon screen cloth, but will also accept polyester and polypropylene mesh. You can choose from a large range of synthetic mesh sizes, from 5 microns to 1000 microns (1 mm) aperture. You are able to use larger mesh cloth but you will need to retain it with the O-Ring. Features: Injection moulded for precise taut mesh fitting Easy to assemble and disassemble Easy to clean Lightweight and contamination-free Specifications: Body - high-impact polystyrene Size - 200 mm nominal diameter Weight - 690 grams per set

View
Nylon Sieve Mesh for Flexistack Sieves

Used in conjunction with the Flexistack Sieve Sets, nylon sieve mesh gives you drum-tight screens that meet the highest screening standards. It promotes efficient screening and therefore cuts screening costs. If the screen cloth is damaged, it is replaceable quickly and easily. The Flexistack rings hold two different sizes of mesh of your choice. The nylon sieve mesh is cut to size and put between each component. We stock the 3 most common sizes for immediate dispatch: 100 Micron 177 Microns 200 Micron All other sizes are readily available within 1-3 days. Note: The mesh is supplied by the linear metre - that means there is no uniform width due to each manufactured roll of mesh being a different width. To illustrate, if you order 1m of 177micron mesh, you'll receive 1m in length x whatever the particular roll width is (nominally between 0.9 - 1.1m).

View
Wooden Handle Vegie Sieves 200mm

The 200mm-diameter vegetable (or vegie) sieve is a fine mesh sieve with a wooden handle, used to wash and sieve sample chips normally over a plastic bucket. They allow geologists to clearly identify the rock types when clean and washed. For those that want extra longevity out of the sieves, we'd recommend the Double Mesh Vegie Sieve. This has a reinforced layer of mesh around the outside supporting the standard single layer mesh, making the sieve more durable. Note: These are also referred to as field sieves, kitchen sieves or vegetable sieves.

View
Riffle Sample Splitters (Mild Steel) – Field & Lab Models

A great sample analysis is closely linked to an accurate sample handling. Only a sample representative of the initial material can provide meaningful analysis results. Sample splitters ensure the representativeness of a sample and thus the reproducibility of the analysis. The sample splitters are ideal for on-site reduction of sample material. They are easy to use, easy to clean and do not need an electrical power supply. We manufacture all our Riffle Sample Splitters to order due to the huge variety in options and sizes. This ensures we can manufacture to your exact requirements and specifications. Most of our Sample Splitters are built from mild steel and manufactured here in Australia, but we can easily supply Stainless Steel Splitters upon request. Step 1 - Choose your size. Size 1 - 3-Tier Splitter which provides you a 12.5% / 87.5% Sample Split (12.5% will be your representative sample) Size 2 - 2-Tier Splitter which provides you a 25% / 75% Sample Split (25% will be your representative sample) Size 3 - 1-Tier Splitter which provides you a 50% / 50% Sample Split (50% will be your representative sample) Step 2 - Choose your accessories. Accessory 1 - Heavy Duty Pneumatic 10" Steel Rim Wheels (two required per splitter) Accessory 2 - Bash Plates (reinforced plate on the sides on the splitter for 'bashing' to assist lodged sample) Accessory 3 - Removable or Non-removable Chutes Step 3 - Choose spacing between the 'riffles'. Option 1 - 32mm Spacing Option 2 - 25mm Spacing Step 4 - Choose whether you're happy with the standard Mild Steel or would like to opt for the Stainless Steel version. We trust that provides you a clear picture of the myriads of options available but feel free to talk to the team with any questions you may have.

View
Safety Spectacle Glasses

Nothing is more important to any workplace than the health and safety or your employees. We stock two styles which seem to be suitable for most clients' requirements. Texas Safety Glasses These Texas safety glasses or spectacles offer a great eye protection in a simple design. Features: Sleek and ultra light weight wraparound lens Suits a variety of face shapes Hard coat lens for anti-scratch Anti-fog coating technology 99.9% UV protection Certified to AS/NZS1337.1:2010 Lic#BMP557823 (Benchmark) Available in Clear & Smoke Denver Safety Glasses This fashionable pair is suitable for a variety of applications. The Denver Spec offers medium impact protection. Anti-fog (AF) lens which prevents fogging in humid conditions. Features: Anti-scratch & anti-fog lens Lightweight and durable polycarbonate frame Medium impact protection Filters out 99.9% of UV radiation outdoors Moulded silicone nose piece and soft rubber arm tips for added comfort Certified to AS/NZS1337.1:2010

View
Aluminum Scoops

Aluminum scoops are designed for you to scoop solids or liquids into bags, packaging or small containers. It is made from corrosion-free cast aluminum. The one-piece design means there is nowhere for dirt particles to be trapped so it's easy for you to clean. Supplied in a large 1kg size or smaller 340g size.

View
Oilfield Sample Storage System Chip Trays

This Chip Tray Sample Storage System was designed as a permanent storage and library reference system for oilfield drilling samples from oil or gas exploration. This system overcomes several historical issues with oilfield drilling samples: The thin plastic and paper envelopes previously used were not transparent that made viewing samples difficult. They often split, got lost, or were too bulky for efficient storage that made past geological analysis difficult to access. The sample trays are manufactured in a durable plastic called GP Styrene, which has excellent clarity for microscopic examination, and the fluorescence in oilfield samples can be reliably seen under ultraviolet light. The trays are stackable, allow easy access, and will not deteriorate over long storage periods. The wooden sample storage boxes hold the sample trays securely, and are also stackable and durable. The storage system comes in two designs: A shallow 5-compartment tray - the plywood storage box fits 102 of these or 510 samples (sample size per tray 20-25 grams) A large 5-compartment tray - the plywood storage box fits 54 sample trays or 270 samples, and basically double the height of the shallow trays. The large tray holds approximately 50 grams per tray of washed and dried sample.

View
Chip Tray Racking Storage Systems

The Dyna-Store Chip Tray Racking System is a neat and practical storage solution for your chip samples, which works just like a filing cabinet. It's a great way to store your chip trays in an organised manner that will ensure that you can reach the tray you require easily with no need to move any other trays. Traditionally chip trays have been stored in so many ways, from being taped together on shelves to cardboard box storage, but we've wanted to provide a simple and easy solution to enable convenient access of chip samples in the long term. The racks can be easily used for transportation from the drill rig to the storage shed, with no need to reorganise before storing. We manufacture 2 types of chip tray storage system: The smaller 100-capacity design is ideal inside an exploration office for ease of access to current drilling records The versatile Dyna-Store style chip tray rack holds up to 340 of the 20 compartment chip trays, and is well-suited to long-term storage in a yard or core shed at the mine or exploration site The Dyna-Store is the only chip tray storage system that will maintain the safety and integrity of your chips. It's designed specifically to be lifted by forklift and the units can be stacked for minimum use of floor space. The double lockable doors provide security and the fully galvanised structure ensures the unit will last for years. Product Dimensions: CHIPRK - 405W x 1030H x 520Dmm - 18Kg DYNARKCT - 1360W x 1250H x 560Dmm - 134kg (1360mm is the physical rack width, while the bottom foot-to-foot width is 1440mm)

View
Plastic Gold Pans

White, plastic mineral sands pan make it easier to see the black heavy mineral and therefore make for easier and more accurate estimation of grade in the field. Their material makes them lightweight and easier to pan as opposed to heavier metal pans. Their size is also suited to the ideal sample size when in the field.

View
9.9% Hydrochloric Acid (5 L) – Field Geology Test Solution

Most field geologists carry a small bottle of 9.9% Hydrochloric Acid to perform quick field tests and help them distinguish the most common carbonate rocks.

View
Meter® DuraCopy Waterproof Paper – A4 Synthetic Sheets

Meter Duracopy Waterproof Paper is a highly durable synthetic paper that is suitable for use in extreme conditions found in the mining industry. Not only is it 100% waterproof, it's also grease, oil and dirt proof, and all spills and stains are repelled and do not affect the printed surface. Virtually indestructible and fade resistant Heat tolerant Suitable for all laser printers and copiers, including high speed digital copiers Suitable for indoor and outdoor uses, with users able to write in the rain on each sheet with a pencil or pen Perfect for manuals and MSDS sheets or to print maps that are used in orienteering and surveying. Available in boxes of 100 sheets A4 size, with A3 available on request. Not for ink-jet printers.

View
Leather Synthetic Riggamate M - XL Gloves

Synthetic leather palm Neoprene knuckle panel provides increased flexibility Elastane back provides wearer superior breathability and movement making it cool and comfortable Great alternative to leather riggers with similar wear factor Can be washed and reused increasing lifetime and value of the glove Comes in sizes M, L, XL

View
Steel Strapping & Tools – Secure Core Tray Bundling

Steel Strapping We stock high quality steel strapping in 3 different widths. Our most popular is the 12.7mm, followed by the 19mm and then 16mm. This is a cost effective strap solution for general use steel strapping around the mine site or for strapping your core trays onto pallets. Features smooth, well-rounded edges meaning the strap is safer to use. Steel Strapping Tools Steel Strapping Dispenser - Will fit any of the rolls from 12-19mm and is a user-friendly portable dispenser. Perfect for keeping your strapping rolls neat and tidy and built from heavy duty construction to last the distance. Tensioning Machine - This will accomodate all strapping roll widths from 12-19mmm, and is used to tension the strapping onto the pallet just before you crimp the seal on to hold it's load. Steel Strapping Seals - Come in 3 different widths to fit the relevant size strapping rolls. These form a strong and secure seal on the strapping. Steel Strapping Cutter - Just as the name implies, heavy duty cutter tool to slice through the steel strapping. Sealer/Crimping Tool - Used in conjuction with the Strapping Seals to crimp/seal them onto the strapping. Note: If you don't have any of these tools currently then you will need to buy all these tools as a kit, as you'll require the entire set to complete the job if Steel Strapping is the way you decide you want to go.

View
Plastic Hi-Vis Glove Clip

Double jaw configuration Attaches to belt loops, heavy waist bands, and pockets Patented 'Safety Breakaway' helps prevent individuals from being pulled into machinery, and from being pulled off balance If gloves snag while climbing a ladder

View
Hard Hat Brim with Neck Flap

Made from 50+ UPF rated durable cotton Fits easily over a hardhat Generous neck flap to protect from reflected UV Comfortable to wear Hard hat NOT included.

View
Hard Hat Plastic Vented White

Australian-made ABS Plastic Vented Safety Helmets are ideal for general industrial, construction and mining. The unique crown cooling vents give added comfort during hot humid conditions. The helmet design incorporates multiple branding and reflective tape option positions. Features: Lightweight ABS plastic shell Comfortable and well balanced 6 point nylon webbing headgear for comfort Superior UV protection Replaceable terry toweling sweatband Vented cool flow design

View
Tape Dispenser Pistol Grip Retractable Blade 48mm

Metal frame Course blade Spring loaded retractable blade - for safety Suitable for 48mm tape

View
Filament Tape – Reinforced Strapping Tape

An extra-strong adhesive tape, reinforced with glass fibre filaments both across and along the tape. Cross weave filament tape is a popular choice for sealing and reinforcing heavy boxes and for bundling bulky items; it can even be used to replace polypropylene or steel strapping.

View
Black & Clear Pallet Stretch Wrap – UV-Resistant Film

Heavy Duty Stretch film /pallet wrap, is mostly used for wrapping goods on pallets but does have many other uses like wrapping core trays for transportation or irregular shaped items and bundling boxes together.

View
Duct Tape

This Duct Tape has an aggressive adhesive for quick and reliable attachment and features high tensile strength for demanding applications. Easy to tear straight across and down without curling for ease of application. Tack-free roll edges to keep roll clean and minimize waste and for ease of use has a writable surface for marking and identification

View
UV-Stable Plastic Crates – Outdoor Storage Totes

These crates are of premium quality, made in Australia from thick and durable plastic. Designed to last in the field and used continuously for long-term storage. Also will last if left outside due to its UV Stable properties. They can be supplied with or without a lid.

View
Plastic Sample Vials, with Screw Cap

These plastic sample vials are high quality, manufactured in Australia. They are ideal for storage of samples, whether it be rock chips, oil, or any other sample type. Easy to store, and with a screw on lid it will contain the sample securely.

View
Sampling HDPE Bottles with Caps

Dynamics supply a large range of sample bottles for the lab or in the field. These HDPE bottle can be used for numerous general purpose applications.

View
Plastic Buckets with Lids – 20 L Heavy-Duty Containers

We stock the 10L and 20L white buckets and lids to suit. These are a premium quality, Australia made buckets brilliant for general purpose use or can be used at the rig to collect samples from the cyclone.

View
Pallet Wrap Dispenser H/Duty

Heavy Duty manual stretch wrap dispenser for hand stretch wrapping pallets with adjustable tension.

View
Drafting Film

High grade, double matte coated polyester film for drafting and plotting with ink or pencil. Features High base stability for erasing and redrafting Smooth drawing surface for excellent results with manual drafting Surface formulated to allow multiple erasures without ghosting Available in cut sheets and rolls

View
Premium Clear Packing Tape – Heavy-Duty Sealing

This is a Premium Grade Clear Packaging Tape on standard 72mm cardboard core. This Tape has an aggressive adhesive and is ideal for carton sealing and general wrapping applications - excellent tensile strength and heat resistance to approx 90 Deg C.

View
Cardboard Cartons

Dynamics Provide a wide range of sizes of Cardboard Cartons used in the Geological, Oil & Gas and Mining Industry to protect products securely during shipping. We have a range of cardboard cartons that are made specifically for transporting and storage of Geochem Wet Strength Paper Bags, including the 'Quild Build' range that can be assembled from flat pack into a robust carton without the need for any taping or gluing. We also supply normal taped and Quick Build cartons for the storage of 20 Compartment Chip Trays where you can stack in 12 chip trays and store or transport securely.

View
PET Strapping & Automatic Strapping Machines, Pallet Bundling

PET Strapping is the way of the future we believe. Having gone through the evolution from Steel Strapping to PET in our own warehouse, we'd never go back to steel. The main aspects are that the PET is now just as strong as steel, think pallets of bricks, that have been using PET for years now. It's much more OH&S friendly considering it's lighter, doesn't have dangerous sharp edges that steel can have and overall it's far easier to use on the job when strapping pallets of core trays, or other goods with a single Automatic PET Strapping Tool. Due to it's light properties that don't compromise it's strength, you can fit far more strapping onto a roll meaning that it's considerable more cost effective to use than Steel Strapping and your roll lasts upto 4 times as long between changes. Finally the PET Strapping doesn't corrode and rust out, potentially damaging or contaminating the strapped goods. Join the many Mine Sites that the trend has shifted to in their love for this way of strapping goods. Automatic PET Strapping Tool 18V Outstanding reliability and top ergonomics. Smart, easy and fast operation. Excellent and consistent performance. Touch-screen user interface for easiest adjustment of parameters and tool status information for operator. Variable tension speed controlled by finger pressure for sensitive packages. Favourite strapping function for quick one touch switch of tool settings for varying packages. Strap alignment indication to ensure that strap is inserted correctly for higher process security. Features Strap type : PET + PP Strap width: 13-16mm Strap thickness: 0.5-1.0mm Weight: 3.8kg Tension force: 400-2500N Cycles/Charge: up to 800 Battery: Bosch Li-Ion 18V 2.0Ah Battery charging time: 15-30min Motor technology: Single motor technology, brushless Dimension (L x W x H): 370x141x135mm

View
Geological & Mapping Protractors

Dynamics supplies a range of geological protractors for use when mapping, with the most popular protractor being the Douglas Square Protractor. PRO-1000 Douglas Square Protractor Manufactured from 2mm non-reflecting acrylic with straight edges, the base plate is marked with a line up grid and divided 0 to 360 degrees. The base plate can easily be marked with a chinagraph pencil or soft marker and wiped clean without damaging the surface. The protractors are handy mapping and measuring aids to use either in the office, or in the field and are often used by exploration geologists, land surveyors, foresters, and on boats and yachts for navigational purposes. PRO-1002 & PRO-1004 W43 & W45 Protractor Rulers The transparent 180° protractor rulers bestselling models are the W43 & W45. W43 comes with 1:500 and 1:1000 metre scales and the W45 comes with 1:2000 and 1:1500 metre scales. These protractor rulers are laminated for durability. PRO-1017 General Core Protractor This protractor is constructed of sturdy stainless steel; unlike plastic protractors, a stainless steel one is built to last and probably the last one you will buy. The measuring tool has a 6" adjustable protractor arm that can be held in place with the knurled locking nut, quickly and easily identify angles. The angle measure has permanently etched graduations for 0 to 180 degrees in opposite directions.

View

Displaying 4 of 177

View all products

0

Quote Basket

Continue Shopping

You don't have any products
in our cart.

You may want to take a look at some
of our products below.

Added products

Estimated price:

Your details

Triangle Scale Rulers 30cm

Add To Quote

Our 30cm rulers are made from lightweight plastic, and don't have the sharp edges of their steel counterparts. Used by geologists, miners, surveyors architects, these premium rulers are triangular and allows up to 6 different scales to be viewed on each ruler. The ruler has been designed with grooves along the central line to allow easy holding whether you're in the office or out in the field.

The model used by most geologists is the TRIR-04 Scale Rulers.

Code	Available sizes	Unit	Ctn Qty	Stock status	Choose size
TRIR-010	Triangular 300mm Scale Rule 1: 20, 25, 50, 75, 100, 125	EACH	1	In stock	Add To Quote
TRIR-030	Triangular 300mm Scale Rule 1: 2.5, 5, 10, 20, 50, 100	EACH	1	In stock	Add To Quote
TRIR-040	Triangular 300mm Scale Rule 1: 100, 200, 250, 300, 400, 500	EACH	1	In stock	Add To Quote

Code	Available sizes
TRIR-01	Triangular 300mm Scale Rule 1: 20, 25, 50, 75, 100, 125 Unit: Each QTY: 1 In stock Add To Quote
TRIR-03	Triangular 300mm Scale Rule 1: 2.5, 5, 10, 20, 50, 100 Unit: Each QTY: 1 In stock Add To Quote
TRIR-04	Triangular 300mm Scale Rule 1: 100, 200, 250, 300, 400, 500 Unit: Each QTY: 1 In stock Add To Quote

People who viewed this item also viewed

RocX Spot & Survey Marking Paint

The RocX brand is essentially a general purpose spray paint...

[Measuring and Marking, Marking & Spray Paint, Measuring & Marking]
View Details
RocX Rock Coding Ink

RocX was developed by mining companies for mining...

[Measuring and Marking, Marking & Spray Paint, Measuring & Marking]
View Details
RocX Mine Mark 5m Paint Pole

A paint pole that extends up to 5 metres at the push of a...

[Measuring and Marking, RocX Paint, Marking & Spray Paint, Measuring & Marking]
View Details
RocX® Mine Mark Non-Flammable Spray Paint

RocX® Mine Mark was developed by mining companies for harsh...

[Measuring and Marking, RocX Paint, Marking & Spray Paint, Measuring & Marking]
View Details
Discoverer®️ 10ft SG Container

Keeping your Specific Gravity (SG) Weighing Station clean...

[Measuring and Marking, Scales & SG Stations, Container Facilities]
View Details

View all products

Drag item here to add
to quote basket
