Gravity Roller Racking Table Conveyor System for Core Trays

We stock a wide range of gravity roller table conveyors to suit any core shed application and have designed many systems to meet your exact requirements, specializing solely in Core Shed Design, using standard stock roller racking parts for many years.

Core Shed Design - 2024 07 02



Step 1. Send Specs
Send us your shed drawing, a sketch with measurements or professional drawing; either is fine.

Step 1 - 2024 07 02 copy-1



Step 2. Complimentary Design

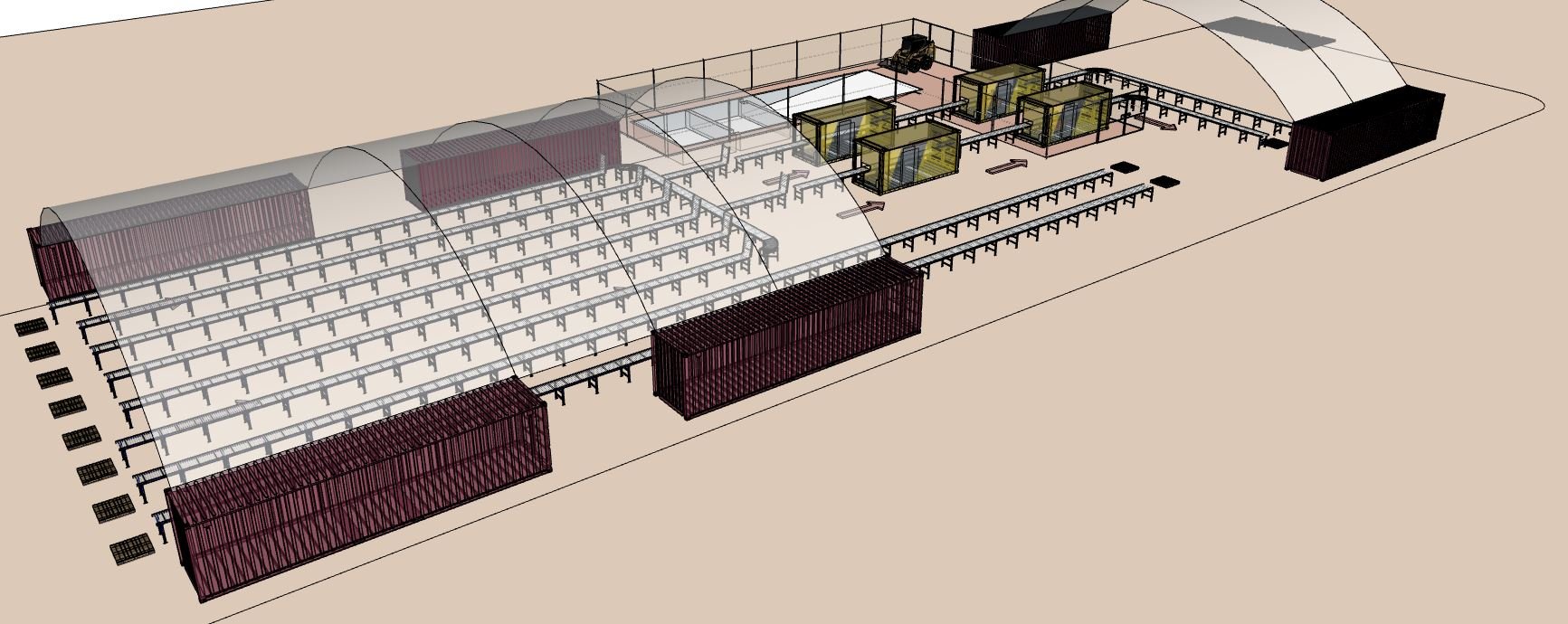

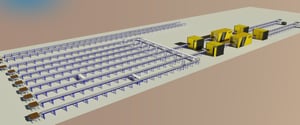

We will professionally draw up your entire shed layout, working with your needs and using our extensive experience of the many core shed applications we've completed. Simple concept design layout shown left and below.



Step 2 - 2024 07 02-1

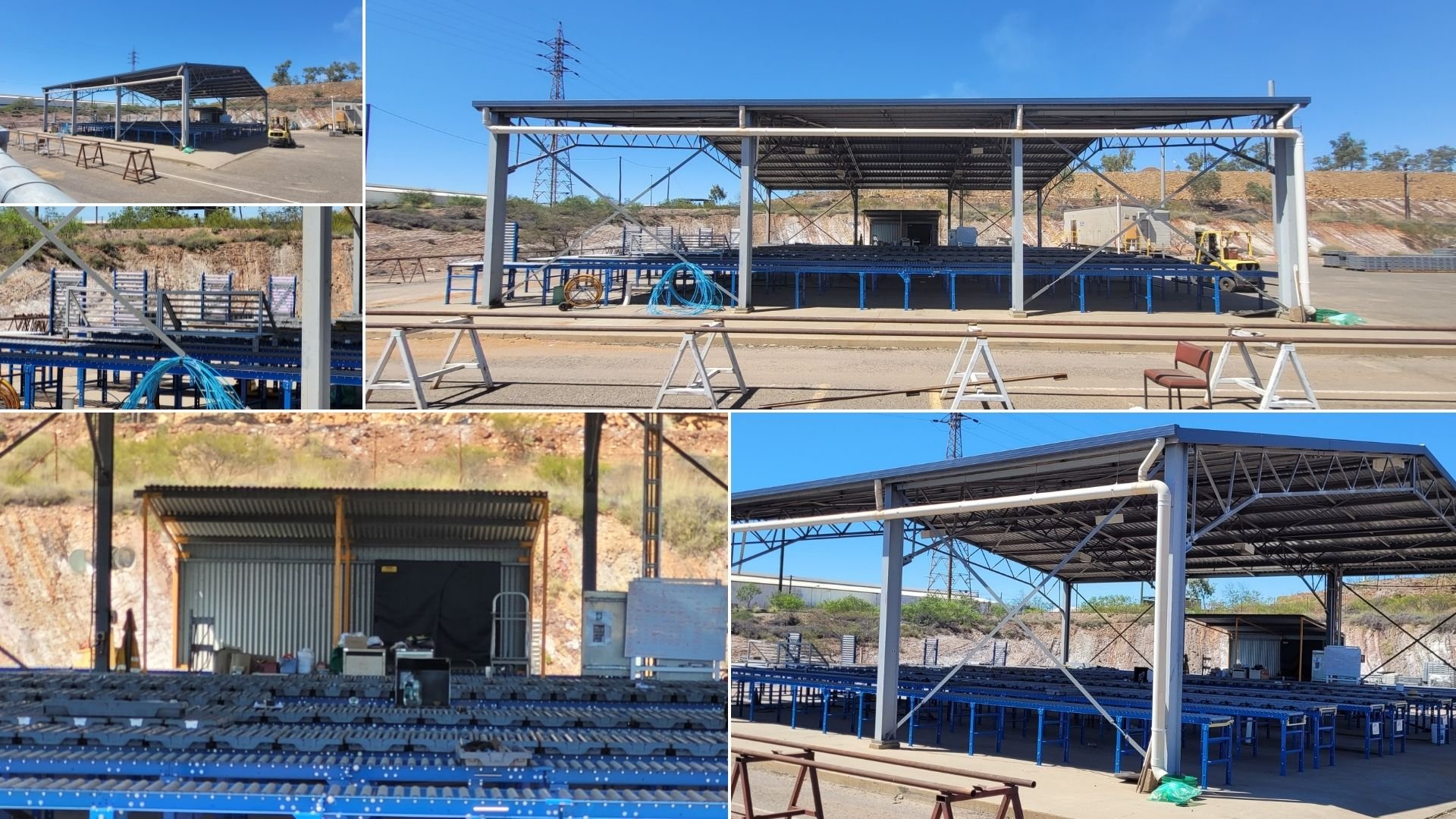

Dynamics Designed, Manufactured & Supplied Core Shed

Step 3. Sign Off
Sign off on the drawing, finalise the quote, and place your order. Generally we stock standard components, so can have your lean and efficient new core shed up and running within a matter of 1-2 weeks. Large or customer projects may be subject to a longer lead time, and will be advised at time of order.

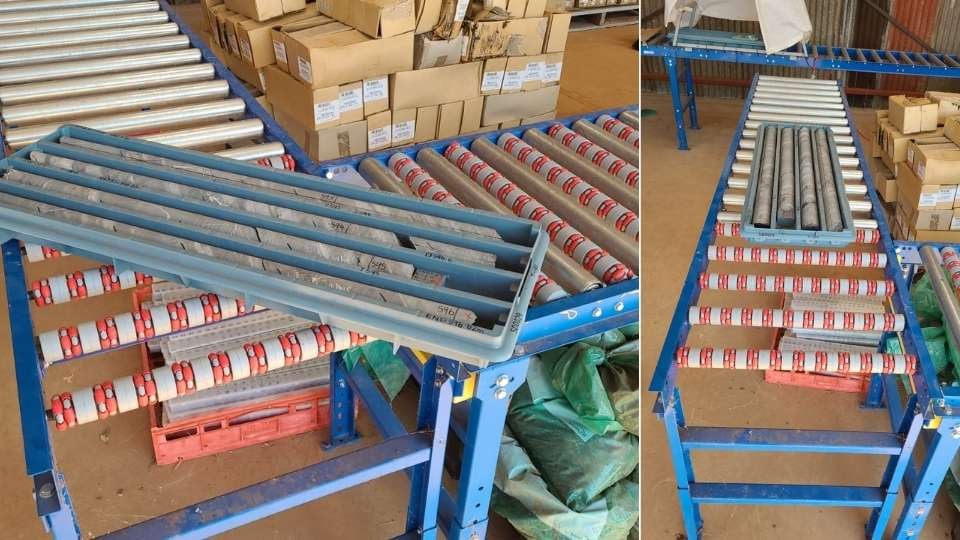

FAQ: How many rollers do you need per metre?
As standard we suggest putting rollers every 75mm; however, it’s largely dependent on which way you log the core and move the trays along. If the trays are only going to be logged and moved along parallel with racking then you can 'get away with' putting the rollers at 150mm centres. If you plan on moving the trays “sideways” along the racking (long side of the tray leading), then it’s recommended that you have the rollers at 75mm. Additional rollers can be easily retrofitted.

FAQ: How many support legs do you need per section?
We suggest at every 3m straight section join when the trays will be moved parallel with the racks. However if you plan on moving trays sideways, due to the weight per metre of rack, it's highly recommended to have an additional support leg in the centre of every 3m section.

See our blog on How to achieve a world-class core shed workflow within the most basic of facilities

--------------------------

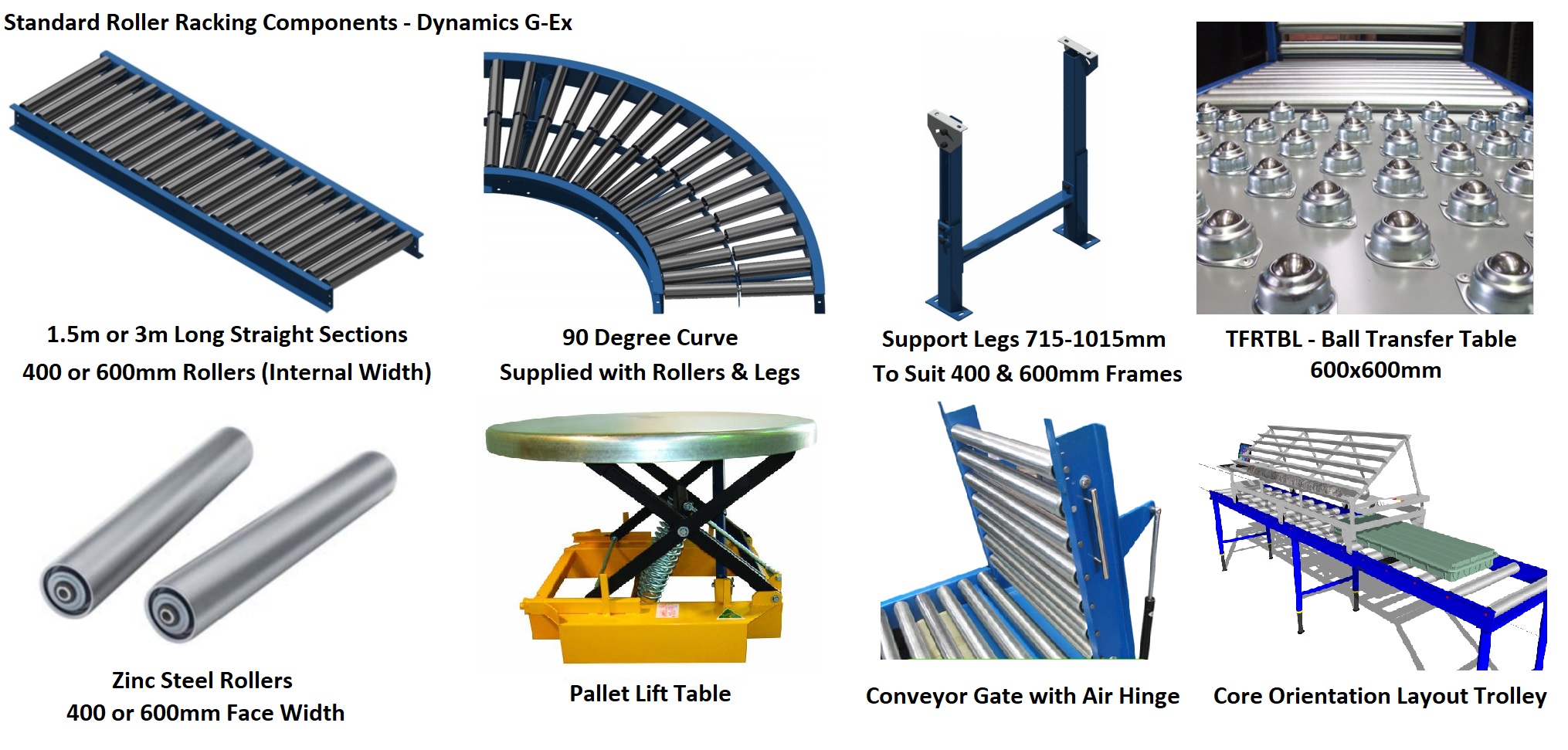

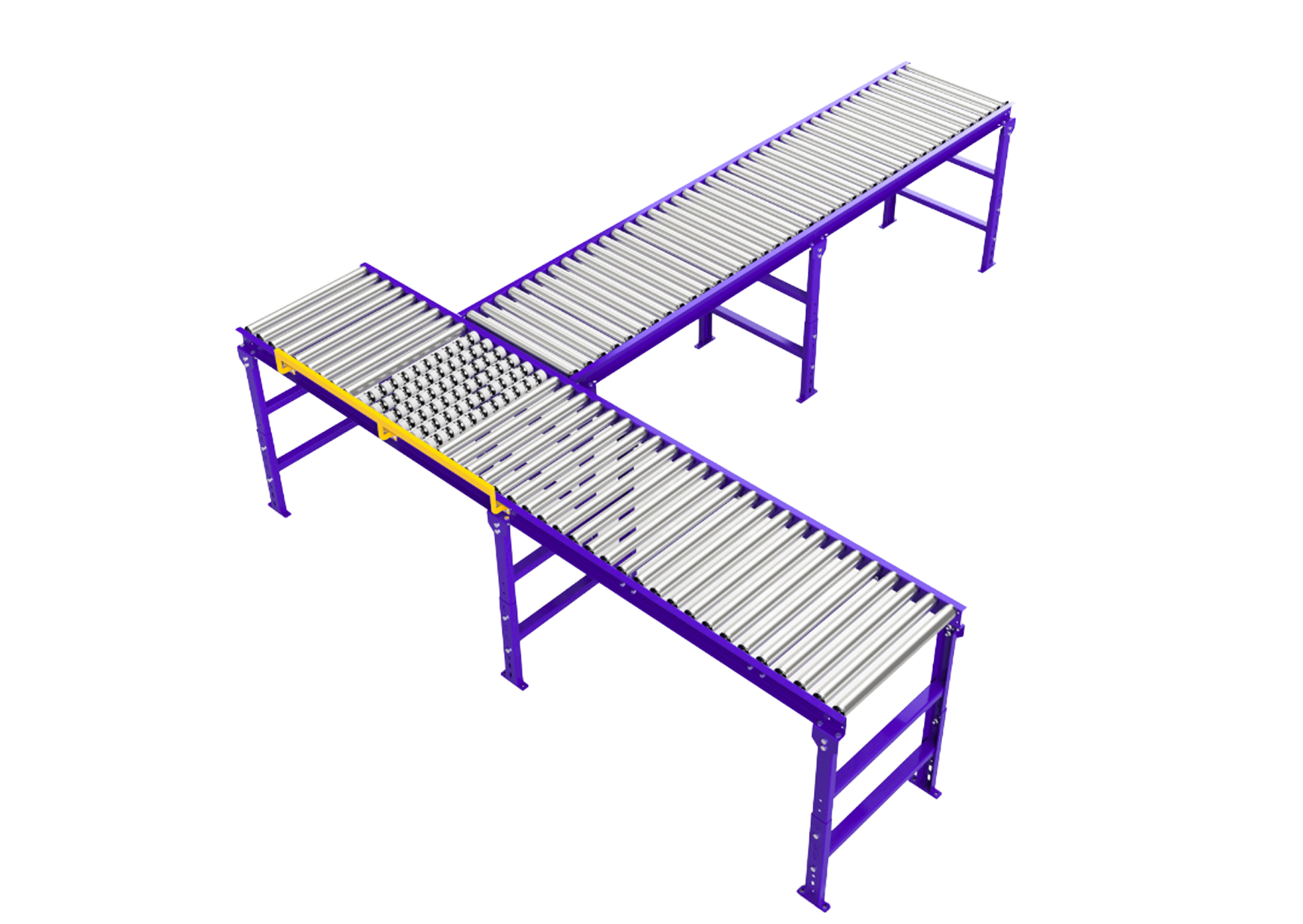

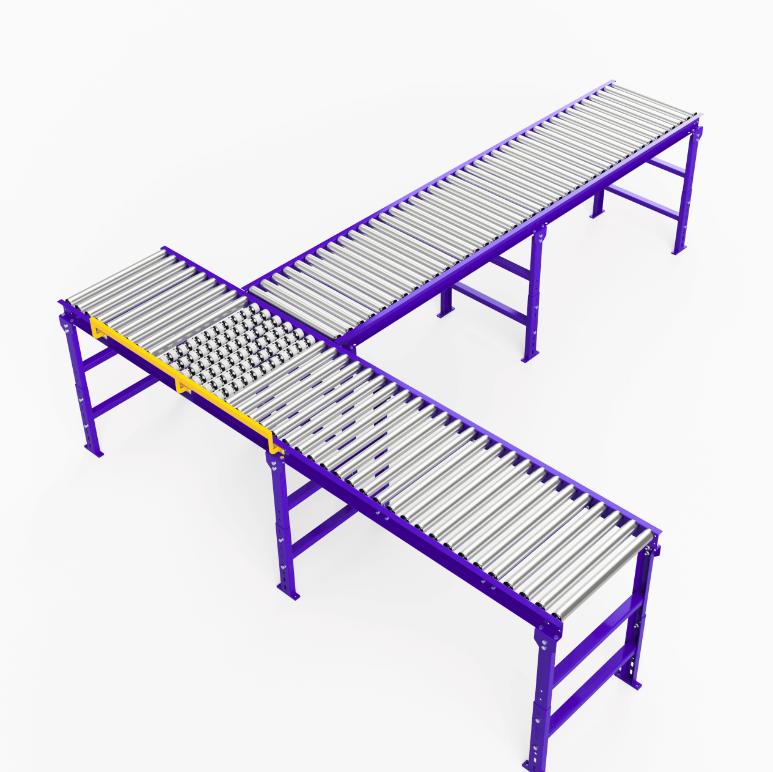

For customers keen to plan out what's possible if their core shed, you may find a list of standard components below. Typically our most popular core shed size is the 600mm width rollers, as this offers the flexibility to run your core trays lengthways or sideways without becoming a WHS risk. However, if the budget is tight and you'd like to look at the 400mm option, you can expect this system to typically cost between 5-10% less than 600mm system.

Roller Racking Components Title - 2024 07 08-1

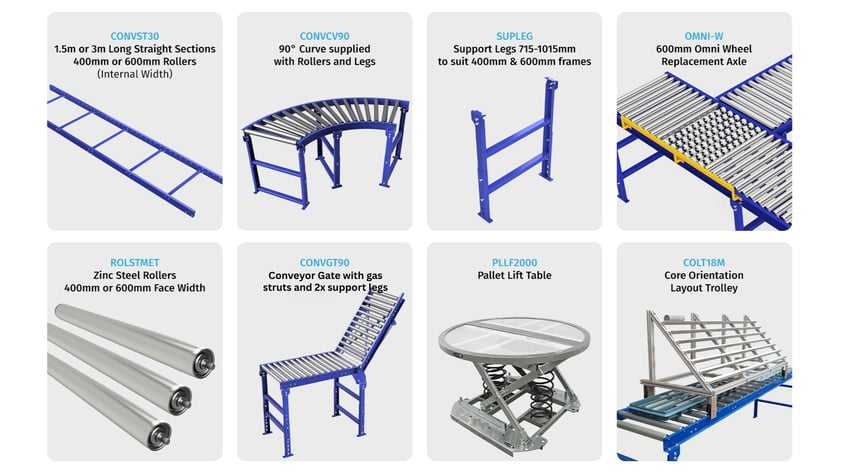

Roller Racking Components - 2024 07 09

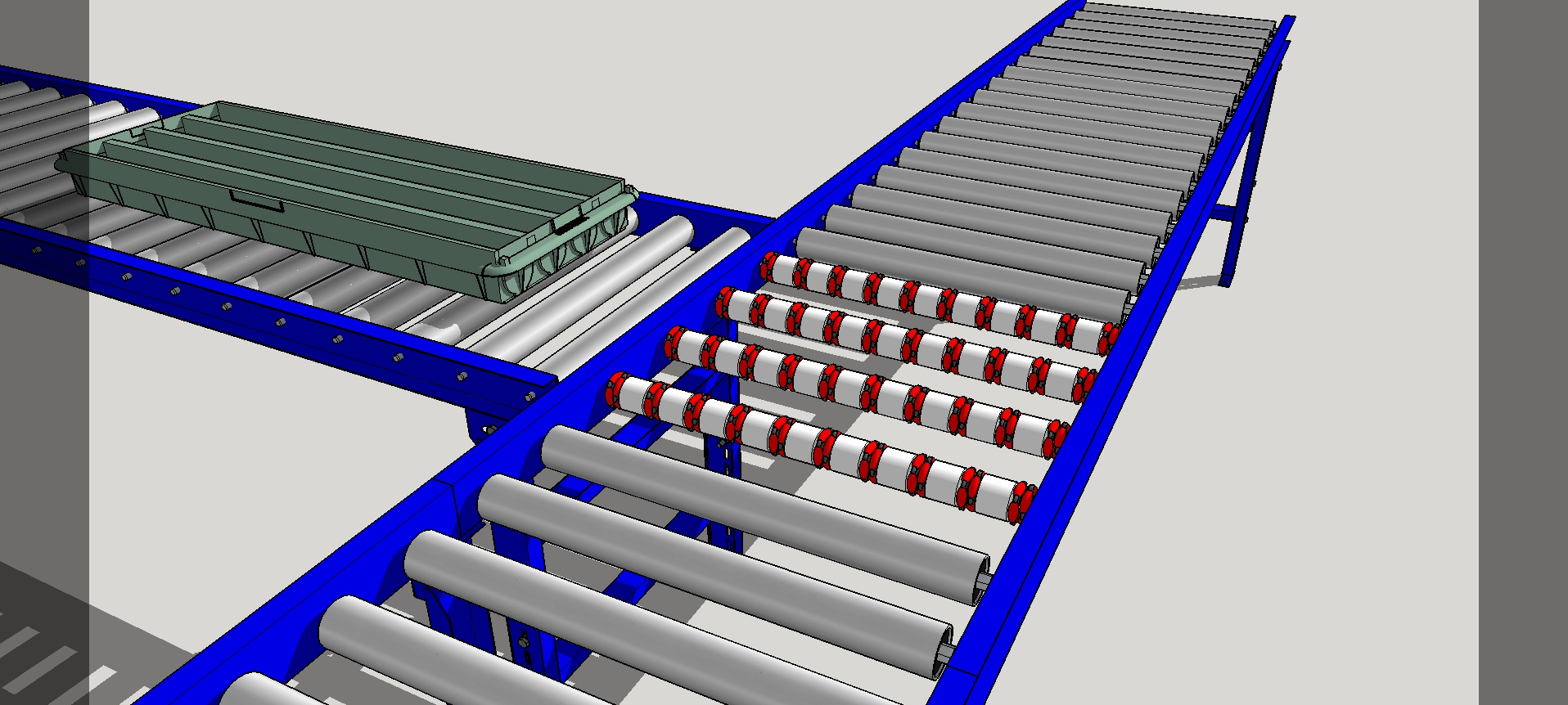

Omni Wheel Replacement With 12mm Axles - 2024 07 02

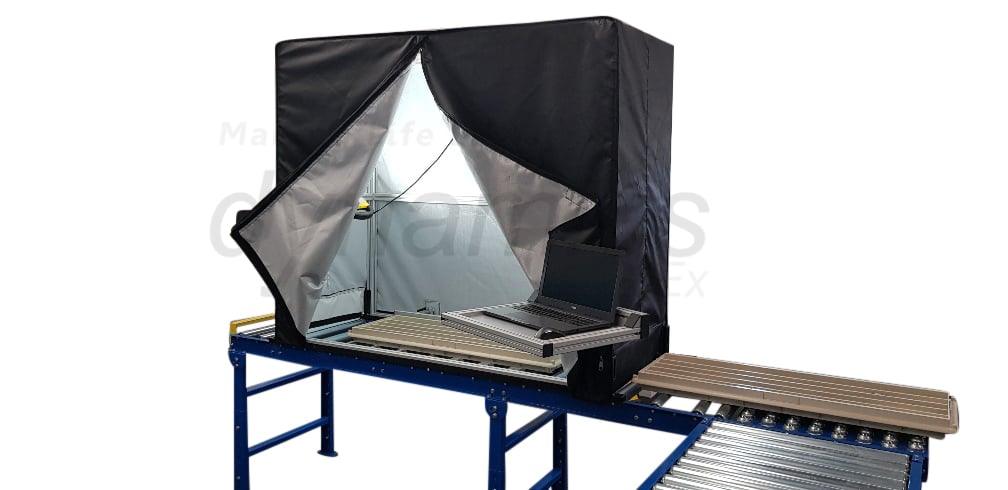

Have you seen the Latest Fixed Camera Frame? It's designed for bolting to Roller Racking as a permanent fixture. Click on the image for more details.

Fixed Camera Frame - 2024 07 02 copy



Code Available sizes Unit Ctn Qty Stock status Choose size
CONVST30100 3m Straight Conveyor Frame To Suit 600mm Rollers EACH 1 In stock Add To Quote
CONVCV9095 90 Degree Conveyor Curve 600mm Rollers. Includes 3 x Support Legs & Rollers EACH 1 In stock Add To Quote
CONVGT9090 2m Conveyor Gate Section (1m Gate), Includes Legs & 600mm Rollers EACH 1 In stock Add To Quote
SUPLEG85 Adjustable Height Support Legs to suit 600mm Racking EACH 1 In stock Add To Quote
TFRTBL80 Ball Transfer Insert 600mm x 600mm EACH 1 Manufactured to Order Add To Quote
ROLSTMET75 600mm Zinc Steel Gravity Rollers EACH 1 In stock Add To Quote
PLLF200060 Spring Loaded Pallet Lifter / Positioner - 2000KG Capacity EACH 1 In stock Add To Quote
LOGTROL55 Core Orientation Roller Racking Logging Trolley - Tiered- 1800 Long with Laptop Stand and Marker Tray. EACH 1 In stock Add To Quote
CONVST1550 1.5m Straight Conveyor Frame To Suit 600mm Rollers EACH 1 Manufactured to Order Add To Quote
CONVST304545 3m Straight Conveyor Frame To Suit 400mm Rollers EACH 1 Manufactured to Order Add To Quote
CONVST154540 1.5m Straight Conveyor Frame To Suit 400mm Rollers EACH 1 Manufactured to Order Add To Quote
SUPLEG4535 Adjustable Height Support Legs to suit 400mm Racking EACH 1 Manufactured to Order Add To Quote
ROLSTMET4530 400mm Zinc Steel Gravity Rollers EACH 1 Manufactured to Order Add To Quote
CONVSTOP25 Conveyor End Stop for 600mm Racking EACH 1 In stock Add To Quote
OMNI-W25 600mm Omni Wheel Replacement With 12mm Axles EACH 1 Manufactured to Order Add To Quote
Code Available sizes

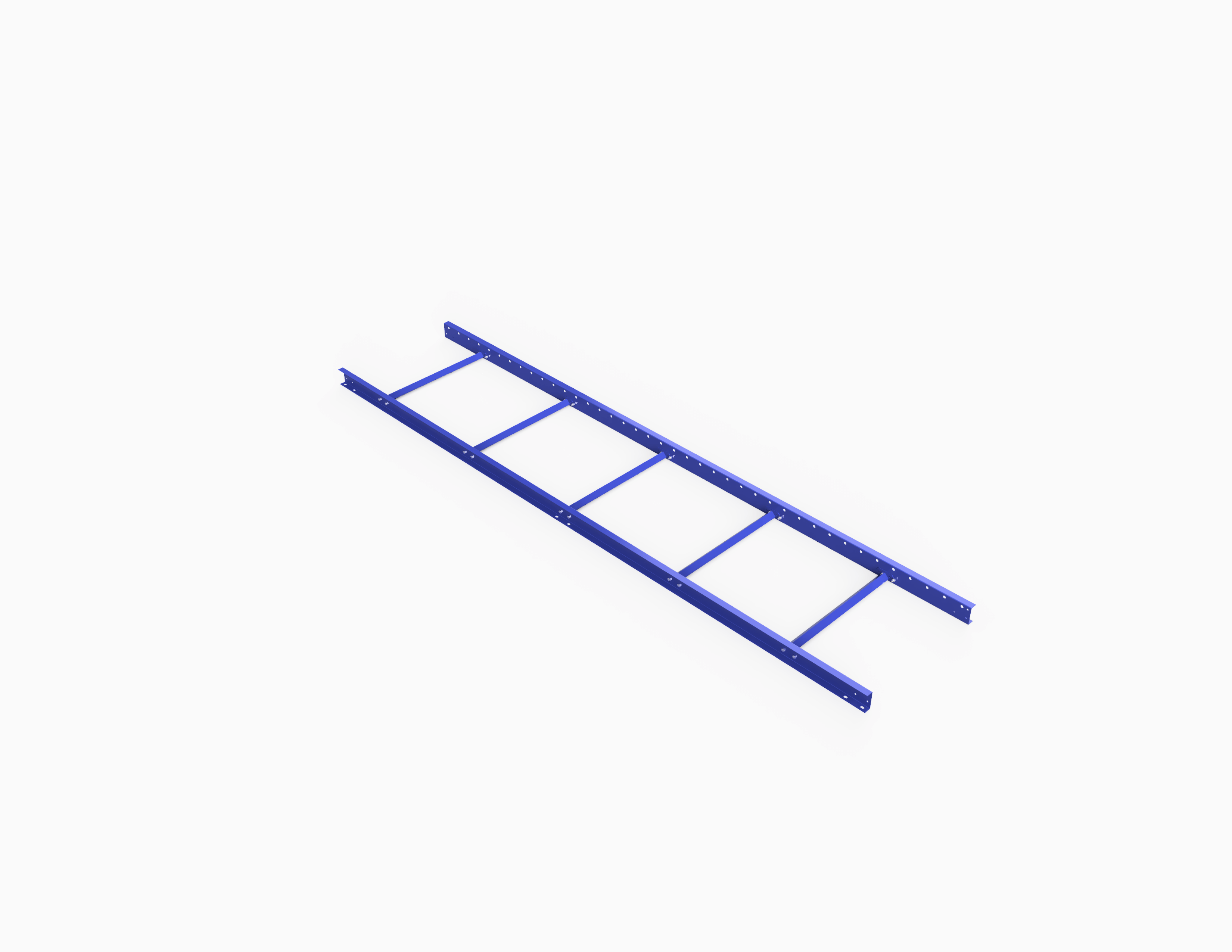

CONVST30 3m Straight Conveyor Frame To Suit 600mm Rollers
Unit: Each QTY: 1 In stock
Add To Quote

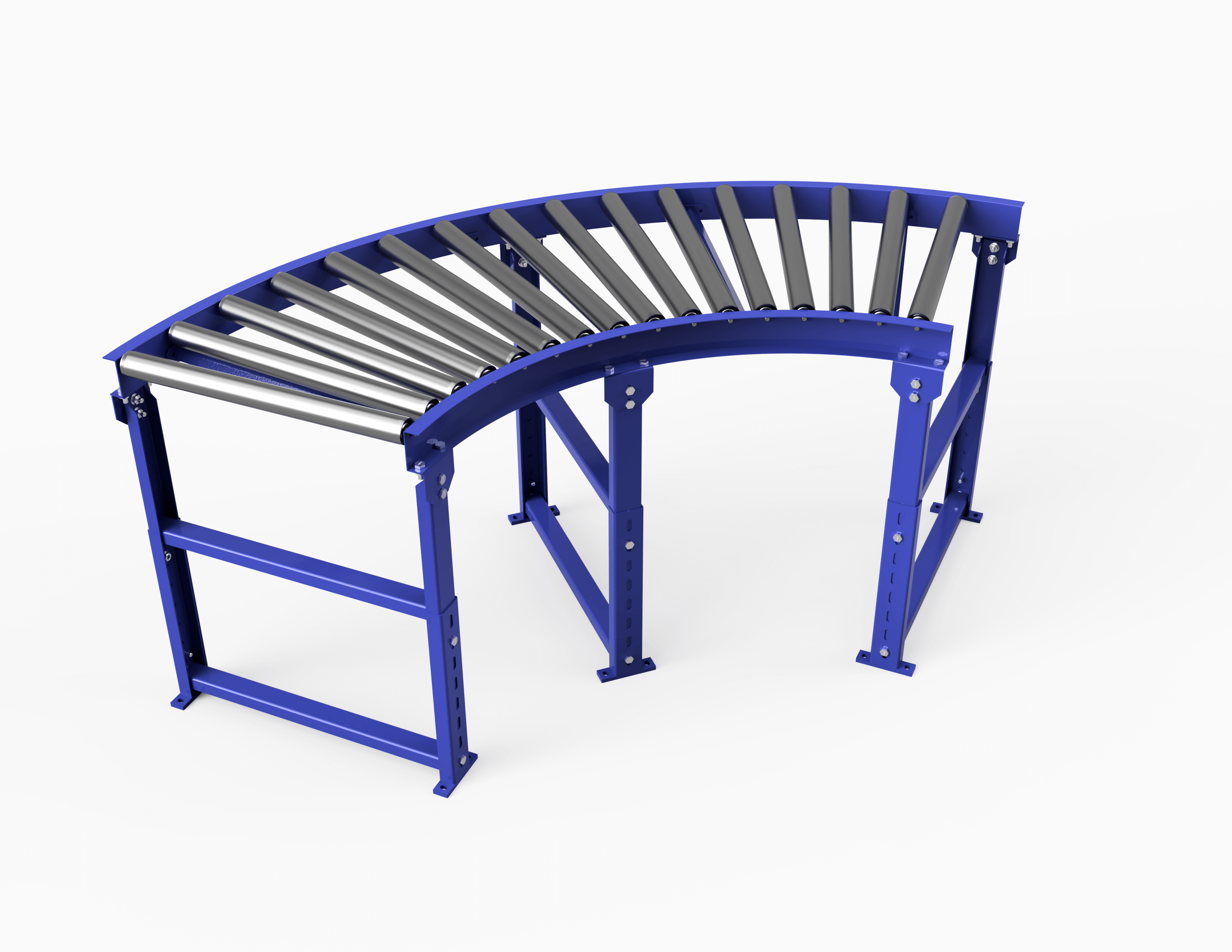

CONVCV90 90 Degree Conveyor Curve 600mm Rollers. Includes 3 x Support Legs & Rollers
Unit: Each QTY: 1 In stock
Add To Quote

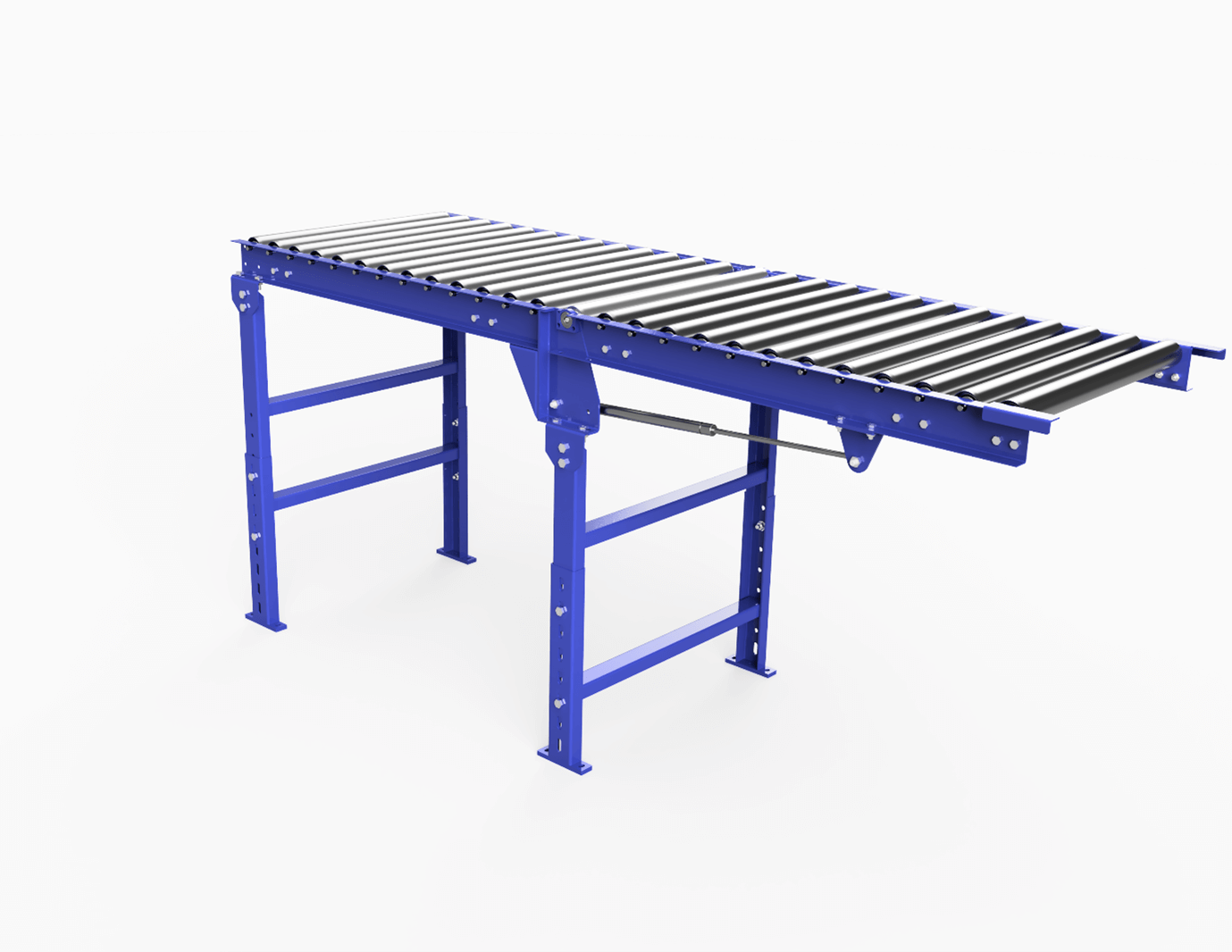

CONVGT90 2m Conveyor Gate Section (1m Gate), Includes Legs & 600mm Rollers
Unit: Each QTY: 1 In stock
Add To Quote

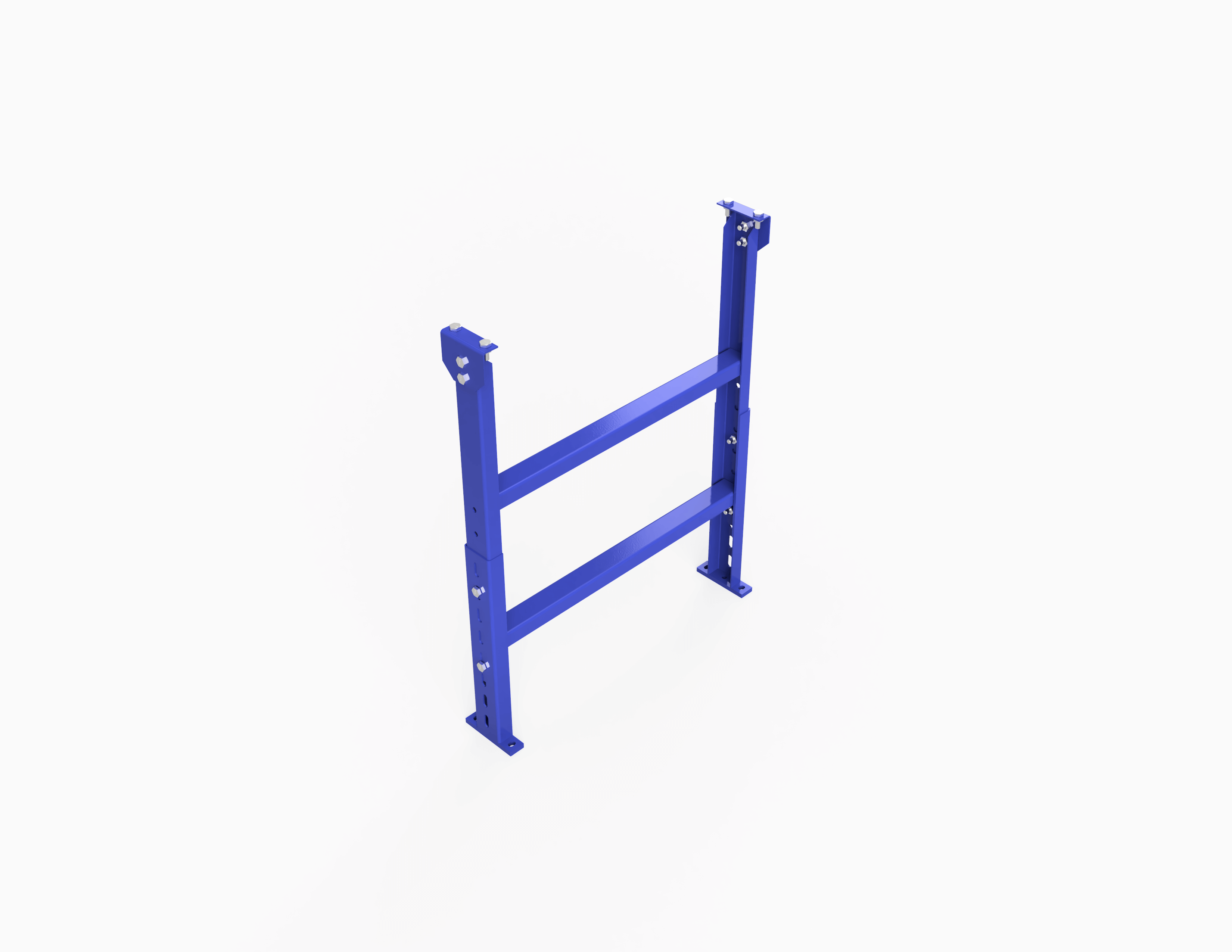

SUPLEG Adjustable Height Support Legs to suit 600mm Racking
Unit: Each QTY: 1 In stock
Add To Quote
TFRTBL Ball Transfer Insert 600mm x 600mm
Unit: Each QTY: 1 Manufactured to Order
Add To Quote

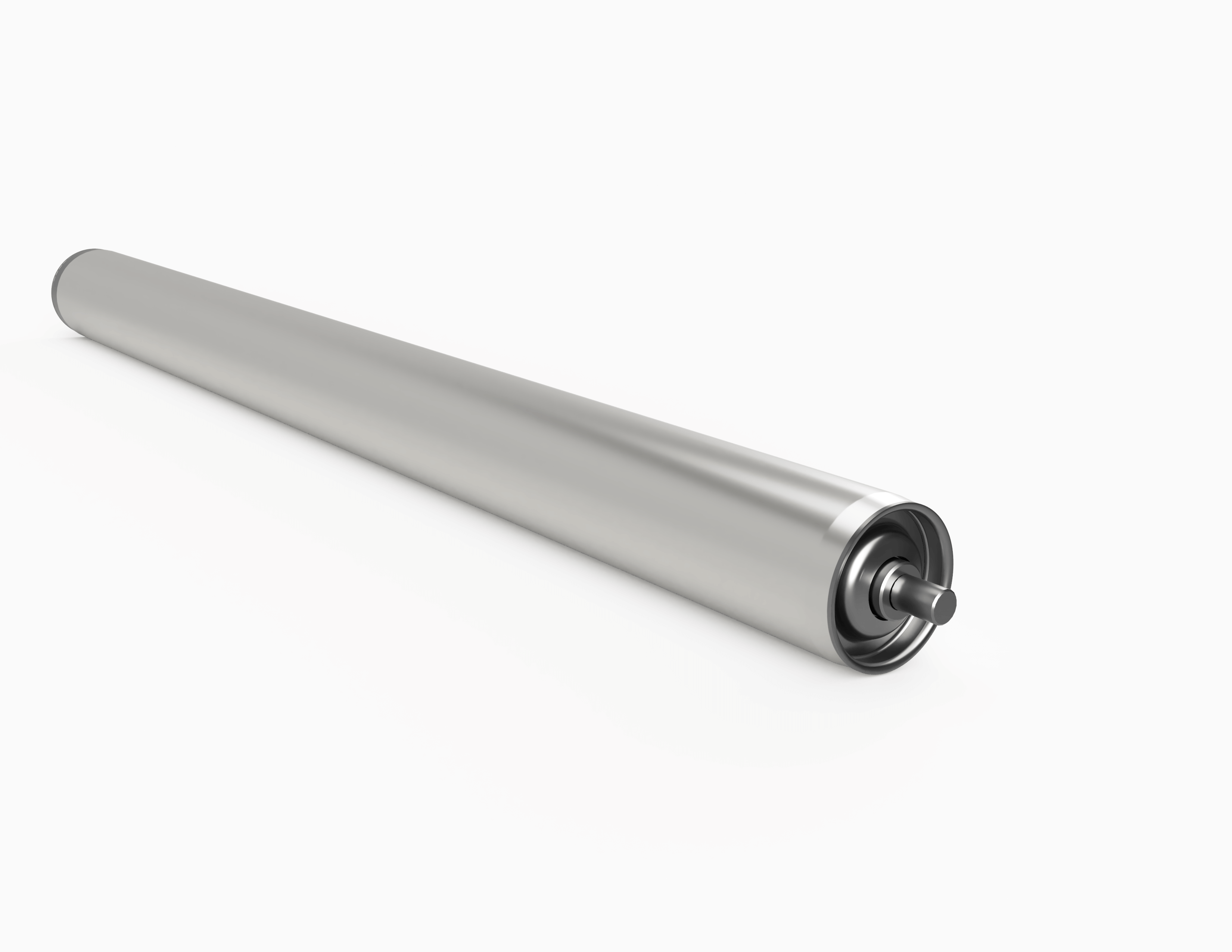

ROLSTMET 600mm Zinc Steel Gravity Rollers
Unit: Each QTY: 1 In stock
Add To Quote
PLLF2000 Spring Loaded Pallet Lifter / Positioner - 2000KG Capacity
Unit: Each QTY: 1 In stock
Add To Quote
LOGTROL Core Orientation Roller Racking Logging Trolley - Tiered- 1800 Long with Laptop Stand and Marker Tray.
Unit: Each QTY: 1 In stock
Add To Quote
CONVST15 1.5m Straight Conveyor Frame To Suit 600mm Rollers
Unit: Each QTY: 1 Manufactured to Order
Add To Quote
CONVST3045 3m Straight Conveyor Frame To Suit 400mm Rollers
Unit: Each QTY: 1 Manufactured to Order
Add To Quote
CONVST1545 1.5m Straight Conveyor Frame To Suit 400mm Rollers
Unit: Each QTY: 1 Manufactured to Order
Add To Quote
SUPLEG45 Adjustable Height Support Legs to suit 400mm Racking
Unit: Each QTY: 1 Manufactured to Order
Add To Quote
ROLSTMET45 400mm Zinc Steel Gravity Rollers
Unit: Each QTY: 1 Manufactured to Order
Add To Quote
CONVSTOP Conveyor End Stop for 600mm Racking
Unit: Each QTY: 1 In stock
Add To Quote
OMNI-W 600mm Omni Wheel Replacement With 12mm Axles
Unit: Each QTY: 1 Manufactured to Order
Add To Quote
