Products > Product details

Brunton Optical Sighting Compass & Clinometer Range

Brunton compasses have been in the market since 1894 and are made in the USA.

Optical Sighting Compass

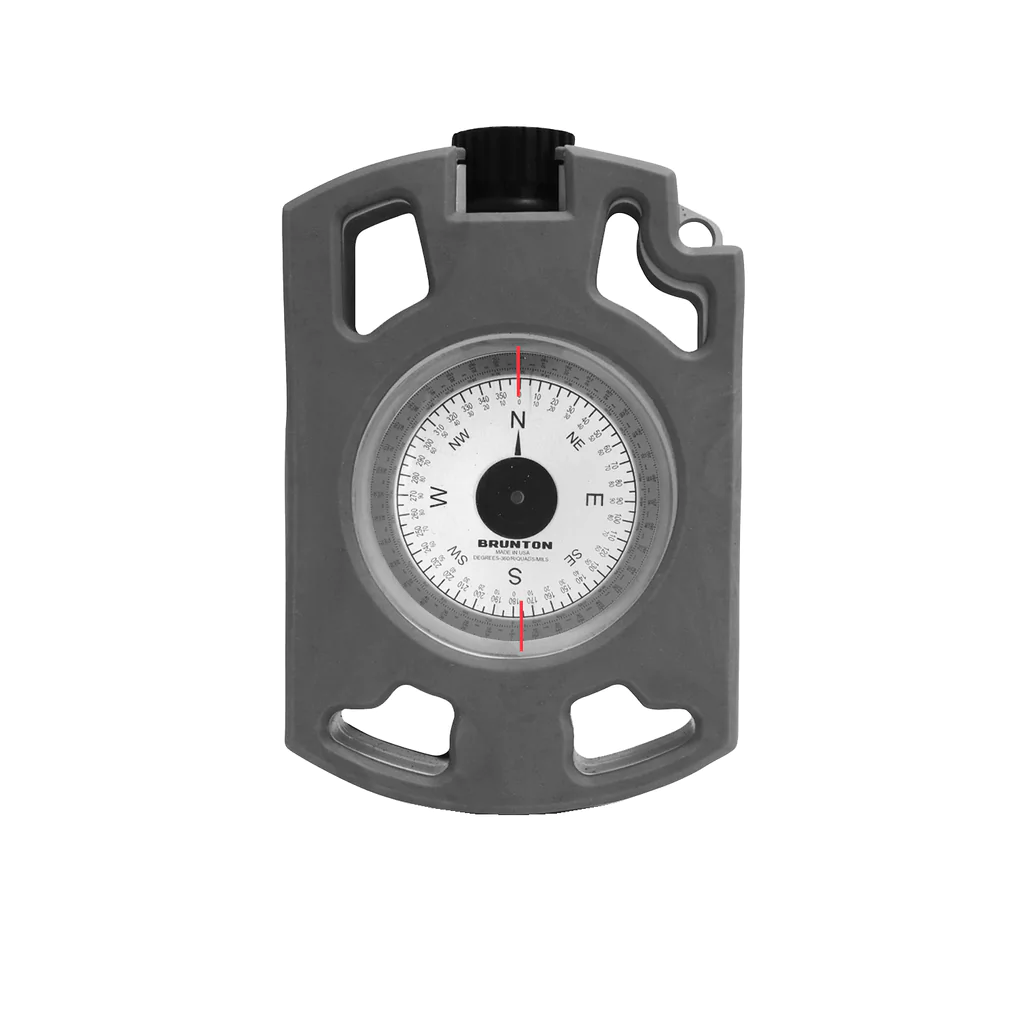

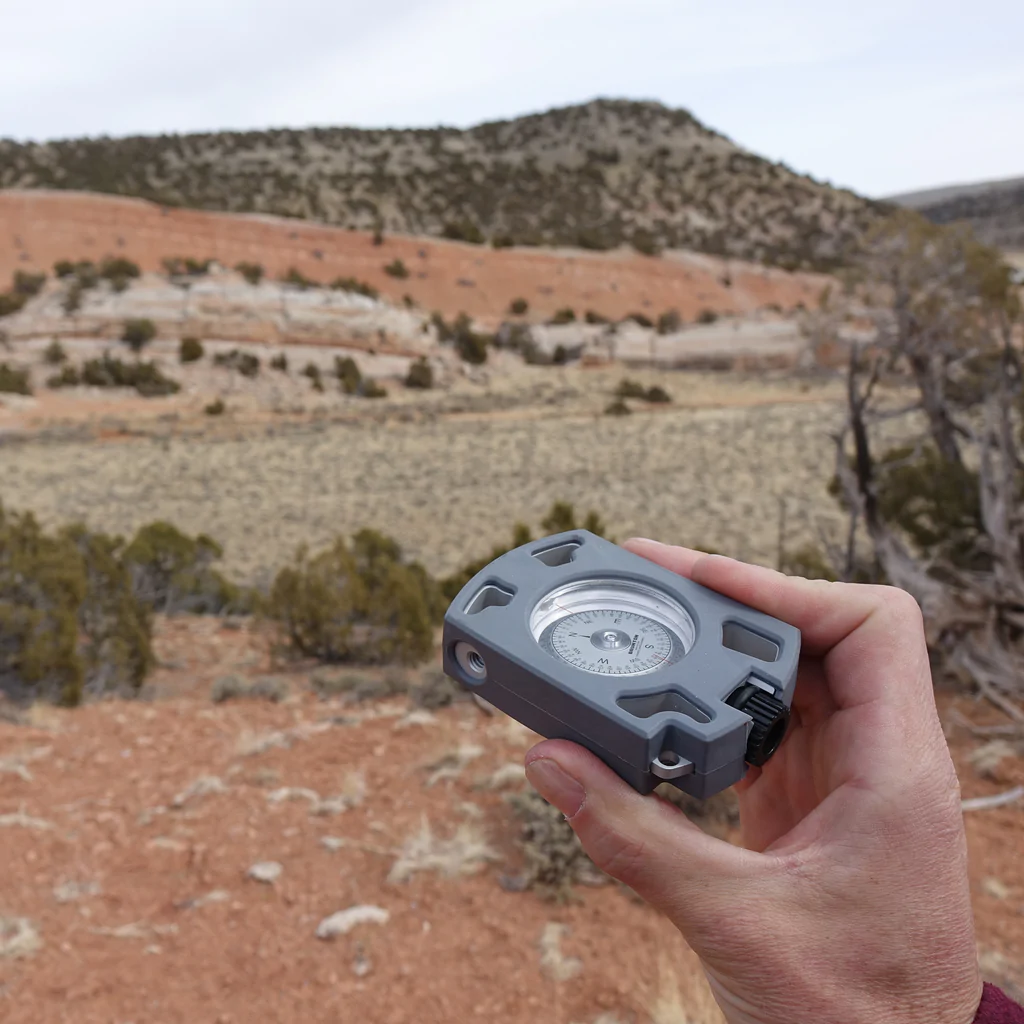

Brunton Omnisight

OmnisightA compact and sturdy sighting compass that allows accurate simultaneous forward and reciprocal bearings even in low light conditions. For context, this is the Brunton equivalent of the Suunto KB-14.

The Omnisight spot-through compass offers the convenience of multiple precision instruments in one hand-held unit thanks to both forward and reciprocal bearings, 360° azimuth, plus 90° quadrants and 6400 point MILS.


SPECIFICATIONS
  • dimensions: 2.5 x 3.5 x 0.5" | 76.3 x 8.8 x 1.3cm
  • weight: 11.8oz | 335.6g
  • resolution: 1˚
  • range: 180˚
FEATURES
  • Offers precision measurements of horizontal bearings through direct sighting.
  • Allows for 4 different scales of bearing measurements:
    1. Scale 1: MILS (0-6400)
    2. Scale 2: Quadrant 0-90°
    3. Scale 3: Reciprocal Azimuth 0-360°
    4. Scale 4: Azimuth 0-360°
  • Dual readings on the top dial face in Azimuth or Quadrant with 5° graduations.
  • Sapphire jewel bearing with anti-static dampening fluid.
  • Available in Northern Hemisphere, Equatorial, and Southern Hemisphere models.
  • Offers up to 10x magnification with an adjustable lens.
  • Designed with durability in mind, with an CNC machined anodized aluminum housing and shock absorbing silicone cover.
  • Use as a stand-alone unit or thread onto a Jacob’s Staff or non-magnetic tripod, with built-in threads.
  • Comes with a protective leather case, perfect for carrying in the field.

Clinometer

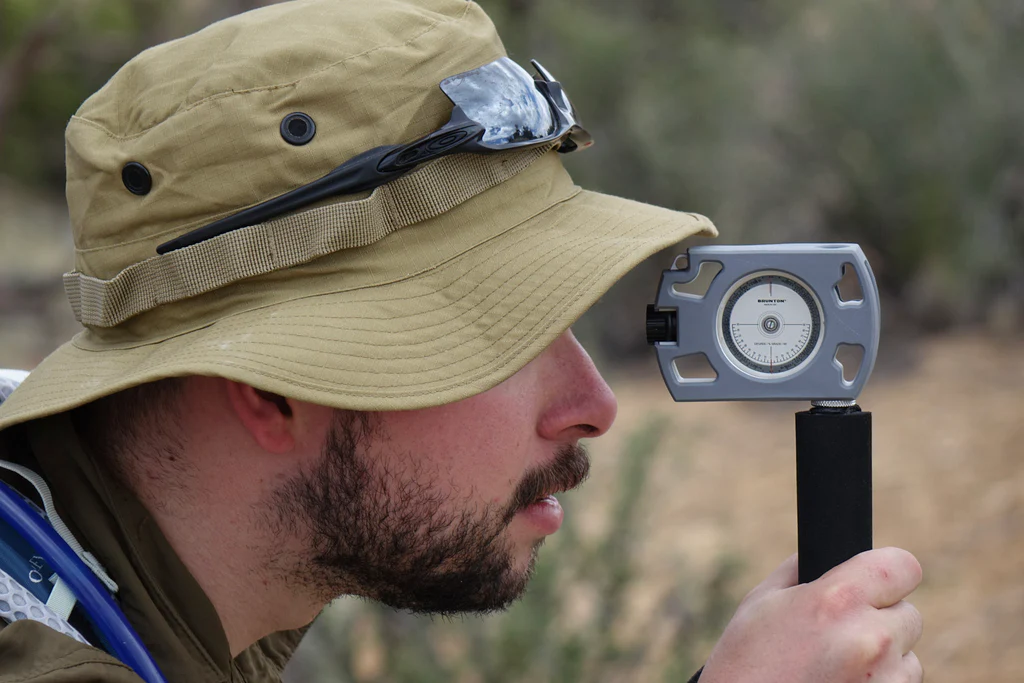

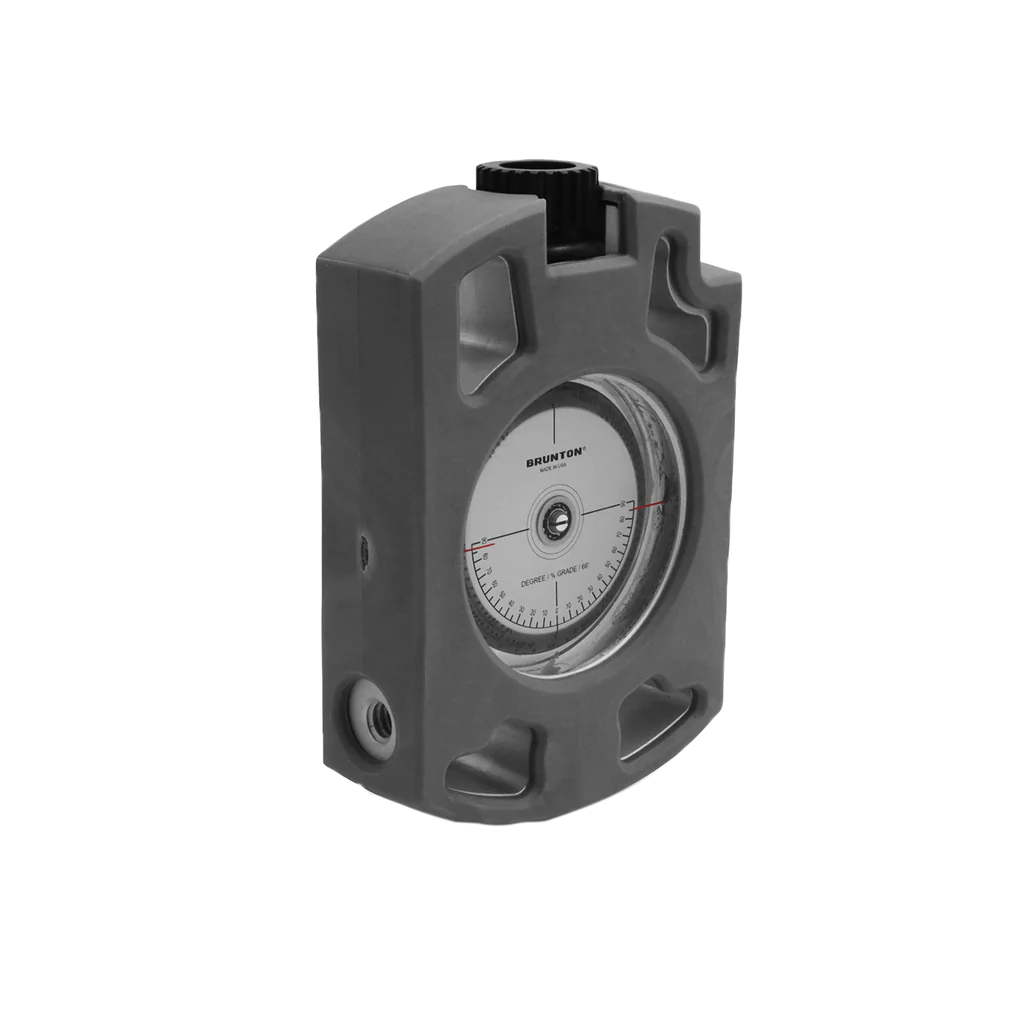

Brunton Omnislope Sighting Inclinometer

OmnislopeThe Omnislope sighting inclinometer allows the simultaneous measurement of vertical angles and percent grade and features a plumb-bob style clinometer mounted on high-precision bearings. If you're more familiar with Suunto compasses, this would be comparable to the Suunto PM5/360 PC Hand-Held Clinometer.

A durable and steadfast CNC machined aluminum housing ensures ruggedness and reliability, while a silicon cover makes it comfortable to hold and carry.



SPECIFICATIONS
  • dimensions: 2.5 x 3.5 x 0.5" | 76.3 x 8.8 x 1.3cm
  • weight: 11.8oz | 335.6g
  • graduations: 1˚ for 3 scales
FEATURES
  • Offers precision measurements of vertical angles through direct sighting.
  • Allows for 3 different scales of angular measurement above and below horizontal:
    1. Left: Slope in Degrees, 0-90°
    2. Middle: 66' Forestry Chain, 0-200'
    3. Right: Slope Percent Grade, 0-150%
  • Side view of slope degree and percent grade also.
  • Offers up to 10x magnification with an adjustable lens.
  • Designed with durability in mind, with an CNC machined anodized aluminum housing and shock absorbing silicone cover.
  • Use as a standalone unit or thread onto a Jacob’s Staff; built in thread fits Brunton monopod.
  • Comes with a protective leather case, perfect for carrying in the field.



Code Available sizes Unit Ctn Qty Stock status Choose size
OMNISIGHT20 Brunton Sturdy Sighting Compass(Southern) EACH 1 In stock Add To Quote
OMNISLOPE10 Brunton Sturdy Sighting Inclinometer EACH 1 In stock Add To Quote
Code Available sizes
OMNISIGHT Brunton Sturdy Sighting Compass(Southern)
Unit: Each QTY: 1 In stock
Add To Quote
OMNISLOPE Brunton Sturdy Sighting Inclinometer
Unit: Each QTY: 1 In stock
Add To Quote
