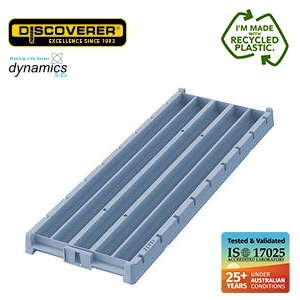

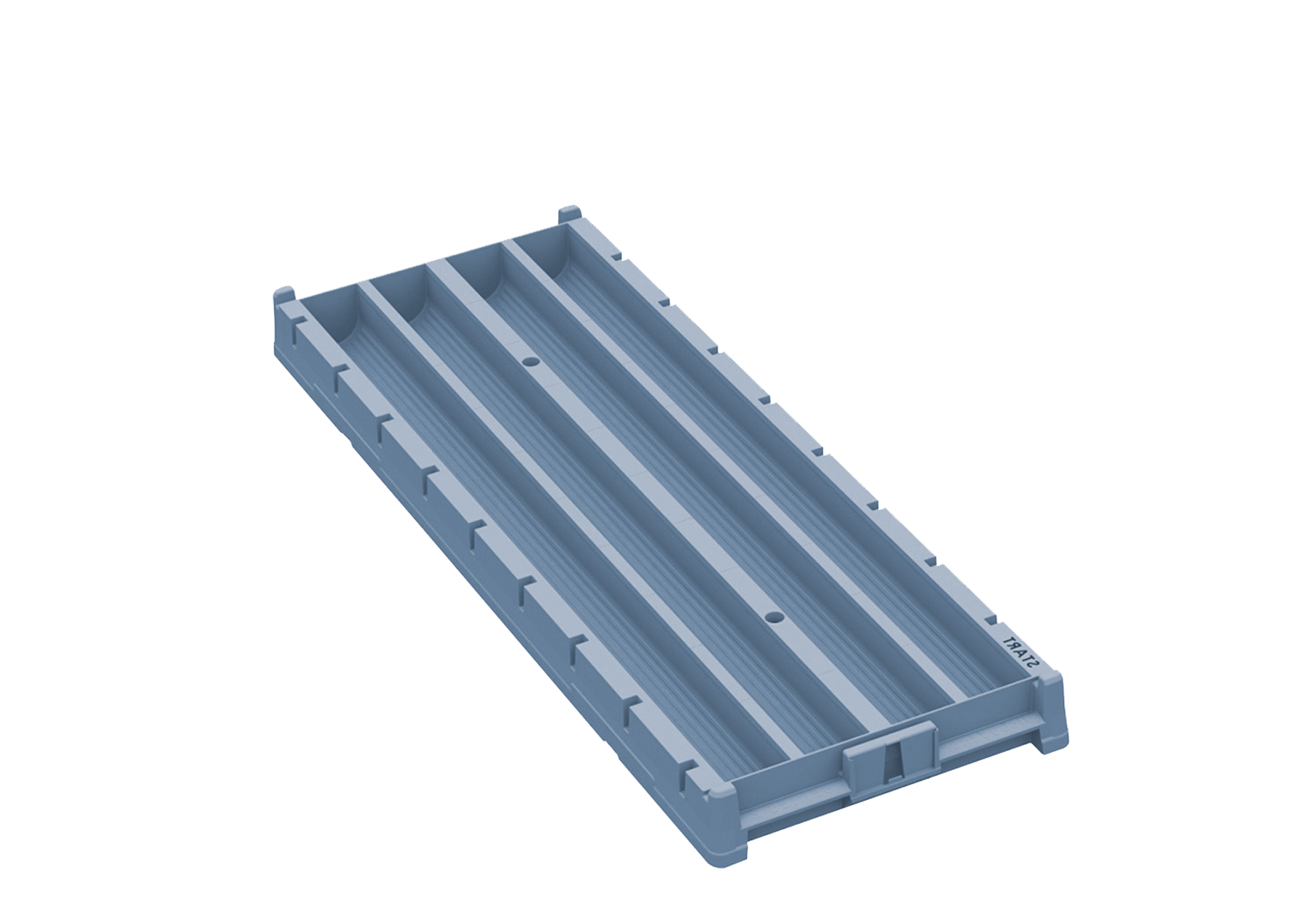

Discoverer® Series 2 Recycled Plastic Core Trays

Watch product video now

The Discoverer® Series 2 range of core trays / core boxes is a model that truly 'stacks and nests', a unique feature within the industry. This unique feature means that the trays can nest neatly inside of each other when being shipped empty, leading to significant savings in freight, and perfect when being shipped internationally. Yet when filled with core on site they simply stack on top of each other without the tray above touching the core in the tray below, such is the patent design.

This Series 2 model has long been an industry favourite and many will recognise it from mine sites globally as it's our leading export product with whole shipping containers being regularly shipped all over the world to some of the remotest and largest mining operations.

  • Built in Handles on both ends of the trays provide safe and easy use when handling.
  • Upto 50% more core trays/core boxes per pallet compared to competing products, delivering significant landed cost savings.
  • Full Depth Channel height ensures the core sits below the ribbing, giving greater stability when stacking.
  • Bold Start Indicator gives clarity to drillers, reducing potential errors when logging the core.
  • Drainage holes throughout, helping your core to dry out and to remain stored in premium condition.
  • Built in ID Tag area and optional Tags provide for a permanent record of contents.
  • Has many accessories to compliment this model, Locking Rings, Lids, Lid Clips, Clip-in Core Marker Blocks, and so on.
  • Strapping Slots ensure greater stability when palletised.
  • Manufactured from the highest UV stabilized polypropylene available, giving excellent longevity, durability and peace of mind.

NQ Series 2
OD: 1065L x 385W x 67.5mmH
Channel Diameter: 52.5mm
Core Capacity: 5 metres
Weight: 1.9kgs
Pallet Qty: Truck - 183
Standard Container - 192
High Cube Container - 219

HQ Series 2
OD: 1065L x 385W x 81mmH
Channel Diameter: 65mm
Core Capacity: 4 metres
Weight: 2.3kgs
Pallet Qty:
Truck - 144
Standard Container - 156
High Cube Container 177

PQ Series 2
OD: 1065L x 385W x 106mmH
Channel Diameter: 86.5mm
Core Capacity: 3 metres
Weight: 2.4kgs
Pallet Qty:
Truck - 120
Standard Container - 126
High Cube Container - 141


Discoverer® Core Tray Comparison Video

Check out the entire Discoverer range to make sure you are using the core tray that's best suited to your needs.


Lifetime Warranty

Lifetime Warranty applies when Core Trays are used as intended, which is for storing, transporting, logging of core and being structurally sound. Excludes Core Trays being emptied and reused time after time.

Code Available sizes Unit Ctn Qty Stock status Choose size
PLACTS2N0 Plastic Discoverer ® 2 Core Tray Size NQ/NQ2, 183/Pallet EACH 1 In stock Add To Quote
PLACTS2H0 Plastic Discoverer ® 2 Core Tray Size HQ, 144/Pallet EACH 1 In stock Add To Quote
PLACTS2P0 Plastic Discoverer ® 2 Core Tray Size PQ, 120/Pallet EACH 1 In stock Add To Quote
