Almonte v Corewise Automatic Core Saw: Features, Reviews & Comparison

Comparison Between Almonte v Corewise Saws

At a Glance

  1. Comparison Between Almonte v Corewise Saws

  2. Differences Between Almonte & Corewise

  3. Core Saw Control Panel

  4. Feed Chain System

  5. Ease of Maintenance

  6. Almonte v Corewise Price Comparison

  7. Automatic Core Saw Warranty

  8. Conclusion

  9. May 2020 Update: Almonte Westernex Response

The invention of the automatic core saw was created by Frank Frisina in Perth, 1995.

Frank built his first automatic core saw and branded it Almonte, named after his two children, Al & Montana.

Sales was good, all over the world.

Frank Frisina's Australian Design Award for the Almonte Core Saw

Differences Between Almonte & Corewise

Either way you look at it, the Almonte was, and still is, a highly successful saw.

Whatever Frank set his hand to do, he made sure it was good.

So fundamentally, the shape & size of the core saw never changed when the Corewise was created.

However, Frank did listen to core saw operators' feedback and acted on their needs.

The major improvements were the core saw control panel, the feed chain and the ease of maintenance.

Core Saw Control Panel

Almonte Controls



P1010825 copy





The first improvement that was made was the ability to adjust the speed of the feed chain & motor from the inbuilt LCD screen.

This can be changed immediately by unqualified personnel and without calling a qualified electrician.

When cutting different rocks, the Corewise LCD screen will advise the operator on the correct feed speed for the level of hardness of the core.

Also in conjunction with Mount Isa Mines, they advised they were forever breaking the $58 push buttons, which are situated smack in the high activity area on the saw.

Loaded core trays, core boats, operators' legs and core inevitably get dropped or ran into them.

Yep, running into this angular box with your thigh is a similar experience to running into a towbar with your shin - been there done that!

When a single button is damaged, or you've punched it out of frustration because it's given you a dead leg for the third time today, this small cost problem renders the entire saw inoperable for a few days.

From Frank's service records, buttons were in the Top 3 replacement parts.

The Corewise has eliminated button breakages caused in this manner.

One thing that's good to be aware of, is that Westernex & The Almonte are putting the note below on their quotations:



Almonte Claim


The reason Almonte are led to believe theirs is the only conforming saw can be found in their recently published article.



A screenshot from Almonte's published article



Unfortunately this is a misguidance. The Corewise complies to Section 57.

You are able to see from the above video there is no leaning over the moving parts.

Another reason that the Corewise moved the buttons is due to the below section of the Code of Practice:



Code of Practice: Safeguarding of Machinery & Plant



This refers to the 'Emergency Stop' button and exposure to dust.

Less dust settles on the buttons when the buttons are closer to eye height, meaning the Emergency Stop won't get ingrained with dust and not work when needed.

Below is an example of an operation in Africa that has deployed an aftermarket cover to stop the buttons from getting dust ingrained and water damaged. On Frank's new Corewise this isn't an issue.

AlmoteVCorewise

Also feedback directly from customers, this one posted on LinkedIn, shows the preference when he's going over the benefits of the Corewise.

Feed Chain System

Artboard 8



Again, from feedback gathered from core saw operators, it was reported the feed chain worked just fine, but with some fine tuning could be even better.

The Almonte saw functions with a 'pusher' style feed chain.

The pushers are evenly spaced along the chain and they push the core boats through the blade.

The purpose of using an auto saw is to enhance efficiency.

Operators were finding that if you missed the pusher on the way past, you had to wait for the next come-around.

Corewise solved this by implemented a continuous chain that the 'teeth' on the core boat locked into.

This meant the core boat could be placed anywhere on the chain, safely and with ease.

See comments from Jamie, a Kalgoorlie based operator, that's been operating these machines for years. His last point highlights what is discussed above.

View this page to see Core Boat Options

Finally, operators reported that jams were another lost time frustration. Let's check how Frank solved this on the Corewise with the anti-jam feature:

Ease of Maintenance

Downtime on mine sites can be a massive drain.

Frank saw the need for trained users on-site to perform their own maintenance program easily.

He started with the external grease points.

Now you don't have to open the entire core saw paneling to grease the bearings, which, because it's not easy, doesn't have to happen often.

Also, the chain drive is much like changing a bicycle chain.

Scott Operating copy

You no longer have to ship the entire saw back to the manufacturer; a qualified person on-site can easily perform this.

Finally, the blade cover is manufactured from stainless steel instead of the old method of using HD steel and powder coating it.

You can use a magnet to test what yours is, as sooner or later the Almonte will likely upgrade, but until recently it's still HD steel.

The reason for this was due to the continuously wet environment the saw was used in.

The Corewise wouldn't rust out.

2023 Update: Corewise Switches to the Powerful Direct Drive

Trust Dynamics to make an already great product even greater.

In mid-2023, Corewise ditched the v-belt drive for the Direct Drive System. The motor is now directly connected to the core saw blade’s through a shaft, which eliminates many of the torque losses associated with the v-belt drive.

P1010841 copy

The result? There’s an improved torque transmission, resulting in at least 30% more cutting speed.

It’s also now much easier to run. With no belts to replace, there is way less downtime for maintenance.

Another enhancement? There’s a new mist guard that emits little to no silica mist, rendering the Corewise safer than before. Your operator can breathe better.

Automatic Core Saw Warranty

Both Corewise and Almonte websites state they offer a 12-month warranty.

Both only apply to the motor and gearbox components under normal operating conditions.

Difference is, with the Almonte, you are not granted the flexibility of using the Core Blades or Core Boats of your choice.

Even if you know your preferred Blades or Boats perform better through fair trial and error, Almonte still states "this will void warranty".

Something to think of upfront.

If you have the Almonte and it's older than 12 months, we are unsure if this is still relevant, as warranty no longer covers you regardless.

You may then have flexibility of choice?

The Corewise, in comparison, states they offer an unconditional 12-month warranty.

We understand they view a diamond core blade and core boat as a universal component, in which the operator should be allowed personal preference.

The warranty on the Corewise is not voided through using your blade and boat of preference.

You can also trial the Corewise for 30 days.

If you are not 100% happy with the performance, you can return the machine with no further obligations.

It's zero risk to you.

Conclusion

We trust this helps in your buying decision process.

At Dynamics, we believe both Almonte or Corewise brands deserve respect.

In our opinion, it seems you get greater ‘bang-for-buck’ with the Corewise, but overall you will get many cutting hours out of either machine.

In Australia, at the current time, Almonte exclusively distributes their core saw through Westernex, and don’t offer anyone else this distribution.

For Corewise, you purchase the Corewise saw directly through Dynamics/Corewise partnership. Corewise being the manufacturing arm, Dynamics taking care of the sales & service.

Frank Frisina, the original inventor of both Almonte & Corewise, is still very much integrated in the manufacture process and available to talk to at anytime.

At Dynamics the division is headed up by John Hitch for sales or after sales service, along with the Dynamics Customer Happiness Team.

Almonte Westernex Response (May 2020)

We are pleased to announce that this article received a response from Almonte Westernex Team.

As always, our object is not to force you into using one or the other; it's about giving you the most unbiased info in the industry.

Their response will help this effort for you to form your own decision.

Read about the Almonte Response Here



If you’re looking for an official quotation on the Corewise Automatic Core Saw, simply request pricing by clicking on the button below:

Request Quote on Corewise Auto Core Saw

Note: Once you arrive at the page, scroll to the bottom and select the option you require, as shown in the red highlighted example.

Our Customer Happiness Team typically responds within 6 business hours.

Table2


You may also be interested in the fully air-conditioned & insulated core cutting containers.

We have these located for hire on-site in Mount Isa, and for dry hire where the unit can be transported out to your mine site in Kalgoorlie.

Wattle Dam Mine_Maximus Resources 2-1

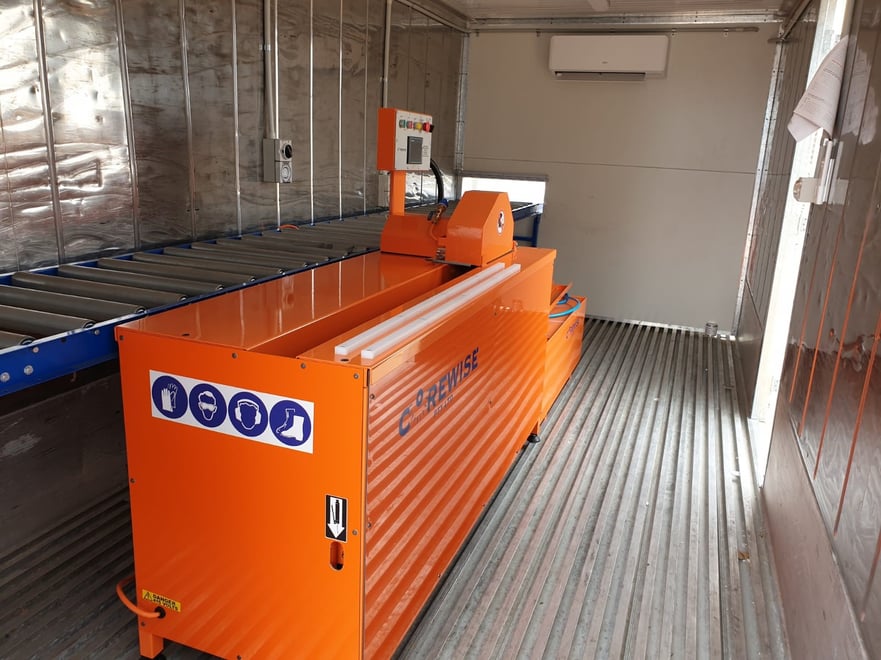

The Corewise Core Saw inside the Container



Have any more questions about automatic core saws?

Leave them for us in the comments and we will answer them as soon as possible!

Request Quote on Corewise Auto Core Saw
